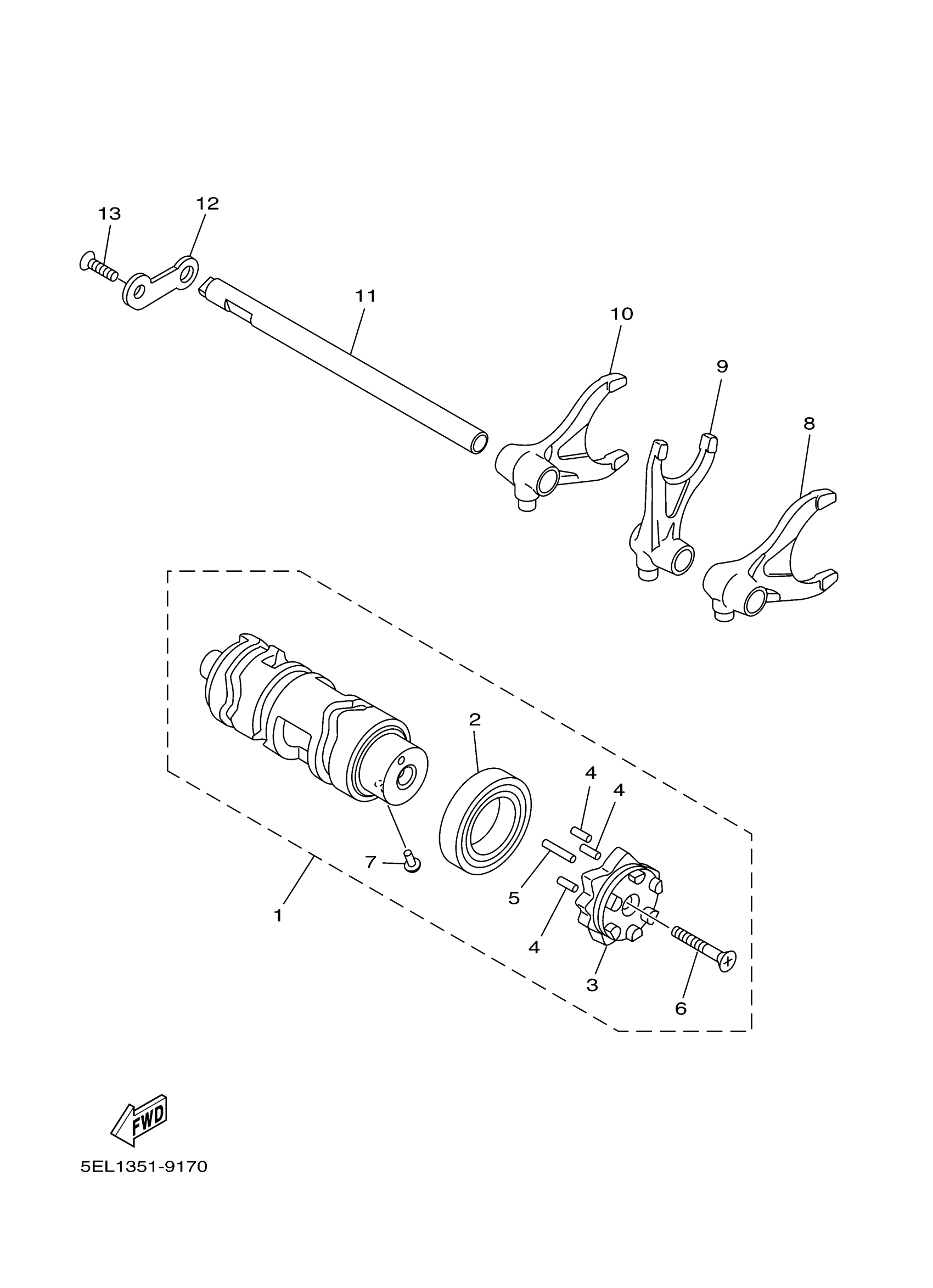

Yamaha XVS11AWXW (V STAR 1100 CLASSIC) 23S10 2008 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

5EL-18540-00-00

Unavailable

2

BRG,R-B (4X7)

93306-90602-00

$41.99

3

SEGMENT

5EL-18185-00-00

Unavailable

4

PIN, DOWEL (409)

93604-16092-00

$3.18

5

PIN, DOWEL (4H7)

93604-20156-00

$3.55

6

SCREW (4G0)

90151-05027-00

Unavailable

7

POINT,NEUTRAL (150610)

136-18542-00-00

$6.99

8

FORK, SHIFT 1

5EL-18511-00-00

Unavailable

9

FORK, SHIFT 2

5EL-18512-00-00

Unavailable

10

FORK, SHIFT 3

5EL-18513-00-00

Unavailable

11

BAR, SHIFT FORK GUIDE 1

5EL-18531-00-00

$86.99

12

STOPPER, BAR SHIFT

4X7-18536-00-00

Unavailable

13

SCREW, FLAT HEAD(4EM)

98707-06016-00

$8.49
