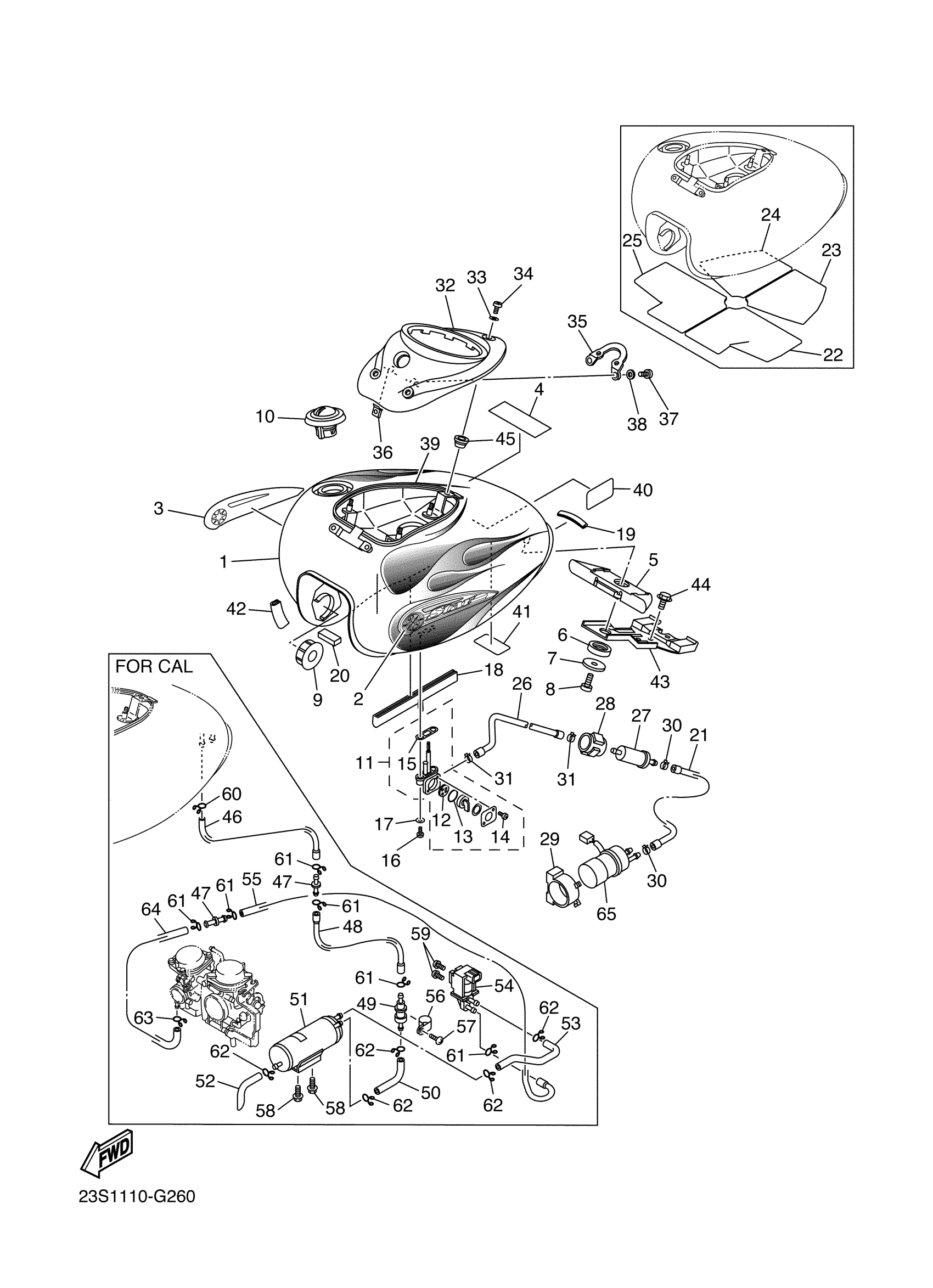

Yamaha XVS11AWXW (V STAR 1100 CLASSIC) 23S10 2008 FUEL TANK Diagram
#
1
FUEL TANK COMP. (BLACK METALLIC X)
5EL-Y2410-12-04
Unavailable
1
FUEL TANK COMP. (BLACK METALLIC X)
5EL-Y2410-V2-04
Unavailable
1
FUEL TANK COMP. (BLUISH WHITE COCKTAIL 1)
5EL-YK241-12-P7
Unavailable
1
FUEL TANK COMP. (BLUISH WHITE COCKTAIL 1)
5EL-YK241-32-P4
Unavailable
2
EMBLEM
23S-2416B-01-00
Unavailable
3
EMBLEM
23S-2417B-01-00
Unavailable
5
DAMPER, LOCATING 2
5EL-24182-00-00
Unavailable
12
VALVE PACKING
3AC-24523-00-00
Unavailable
13
SEAL, COCK
3AJ-24534-01-00
Unavailable
14
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
15
O-RING
4X8-24512-00-00
Unavailable
16
SCREW 256241430000
90149-06011-00
Unavailable
17
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
18
MOLE, SIDE COVER 1
1FK-2171L-00-00
Unavailable
19
MOLD, FUEL TANK
5EL-24188-00-00
Unavailable
20
DAMPER, SIDE COVER
3XV-21717-00-00
Unavailable
21
PIPE, FUEL 1
5EL-24311-10-00
Unavailable
22
DAMPER, PLATE 1
5YS-2414H-00-00
Unavailable
23
DAMPER, PLATE 2
5YS-2414J-00-00
Unavailable
24
DAMPER, PLATE 3
5YS-2414K-00-00
Unavailable
25
DAMPER, PLATE 4
5YS-2414N-00-00
Unavailable
26
PIPE 3
5EL-24313-10-00
Unavailable
27
FILTER ASSY
1FK-24560-10-00
Unavailable
28
BRACKET, FILTER
1FK-24566-00-00
Unavailable
29
BAND 1
4EB-24398-00-00
Unavailable
30
CLIP (7K7)
90467-11044-00
Unavailable
31
CLIP
90467-11028-00
Unavailable
32
COVER, TOP
5EL-2171A-00-00
Unavailable
33
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
34
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
35
BRACKET, SEAT
5EL-2412F-00-00
Unavailable
36
NUT, SPRING(3GM)
90183-05061-00
Unavailable
37
SCREW, PAN
98517-05012-00
Unavailable
38
WASHER(1RW)
92907-05600-00
Unavailable
39
SEAL
5EL-2414G-00-00
Unavailable
40
SEAL
4DN-21268-00-00
Unavailable
41
SEAL 1
3SP-21732-00-00
Unavailable
42
MOLD, FUEL TANK
5EL-24188-00-00
Unavailable
43
PLATE, FITTING 1
5EL-2411F-00-00
Unavailable
44
BOLT, FLANGE
95817-08012-00
Unavailable
45
NUT
90179-05009-00
Unavailable
46
PIPE 10
5EL-24321-10-00
Unavailable
47
JOINT
4XY-14568-00-00
Unavailable
48
PIPE 2
5EL-24312-20-00
Unavailable
49
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
50
HOSE
90445-11056-00
Unavailable
51
CANISTER ASSY
5EL-24170-00-00
Unavailable
52
PIPE 6
5EL-24316-10-00
Unavailable
53
PIPE 7
5EL-24317-10-00
Unavailable
54
VALVE, OUTER VENT CONTROL 2
4WM-14896-00-00
Unavailable
55
PIPE 5
5EL-24315-10-00
Unavailable
56
CLAMP
90464-15014-00
Unavailable
57
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
58
BOLT, FLANGE
95817-06012-00
Unavailable
59
GASKET, EXHAUST
98507-05008-00
Unavailable
60
CLIP (16G)
90467-08021-00
Unavailable
61
CLIP
90467-090A2-00
Unavailable
62
CLIP
90467-100A1-00
Unavailable
63
CLIP (8L2)
90467-08017-00
Unavailable
64
PIPE 11
5EL-24322-10-00
Unavailable
65
FUEL PUMP COMP.
5KS-13907-01-00
Unavailable
