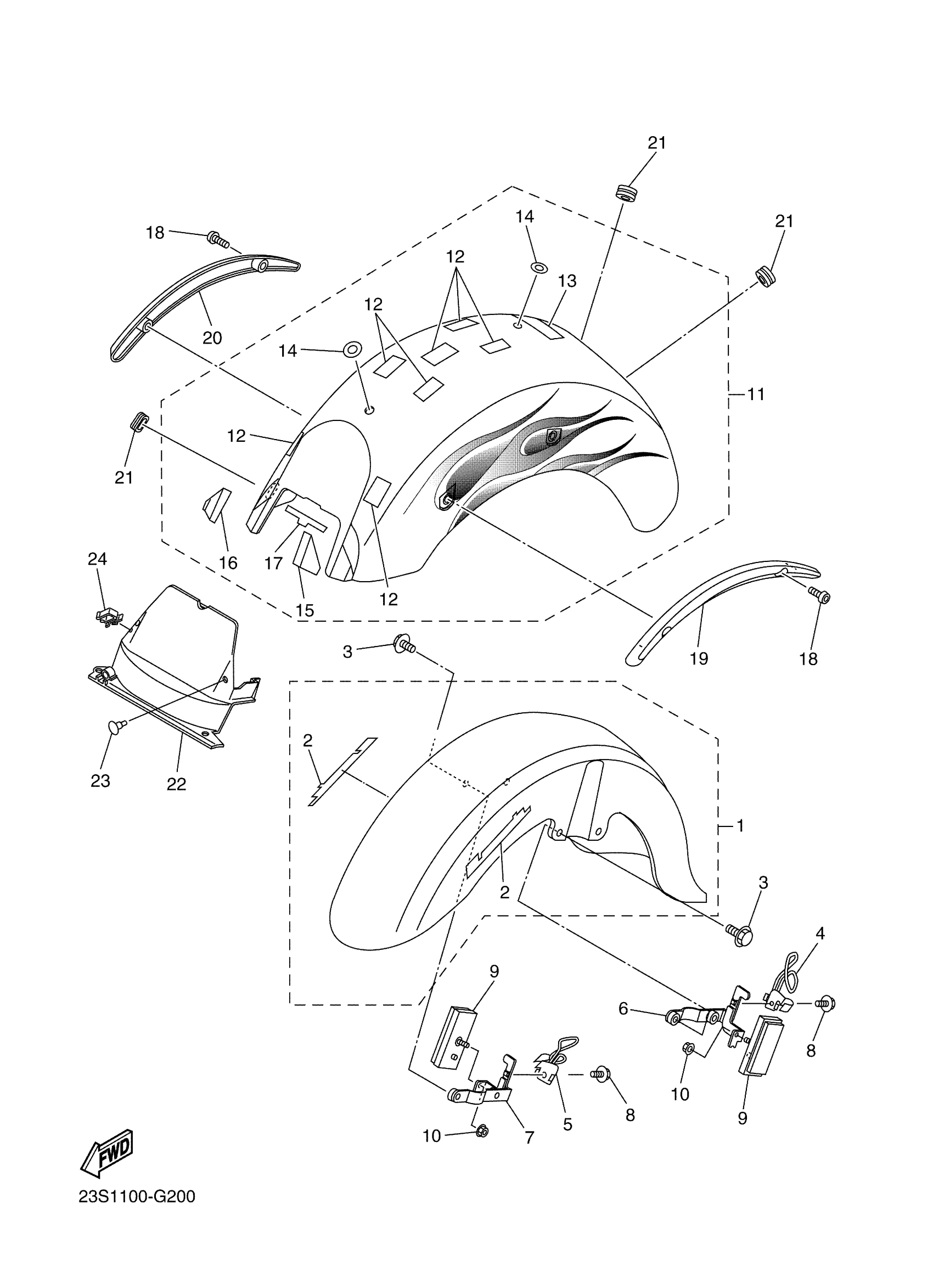

Yamaha XVS11AWXW (V STAR 1100 CLASSIC) 23S10 2008 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5KS-Y2151-AF-P3

Unavailable

1

FRONT FENDER ASSY

5KS-Y2151-AF-P2

Unavailable

2

EMBLEM, 2

5BN-21565-01-00

$61.99

3

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

4

HOLDER,WIRE 1

5KS-21597-00-00

Unavailable

5

HOLDER, WIRE 2

5KS-21598-00-00

Unavailable

6

STAY 1

5KS-21587-00-00

Unavailable

7

STAY 2

5KS-21588-00-00

Unavailable

8

BOLT, FLANGE

95817-06010-00

$4.73

9

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

10

NUT, FLANGE(3GM)

95707-05500-00

$8.49

11

REAR FENDER COMP.

5KS-W216R-0B-P2

Unavailable

11

REAR FENDER COMP.

5KS-W216R-11-P3

Unavailable

12

SEAL 1

3SP-21732-00-00

$17.49

13

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

14

SEAL 2

4NK-21735-00-00

Unavailable

15

SEAL

5KS-21669-00-00

Unavailable

16

SEAL

5KS-21669-10-00

Unavailable

17

SEAL

5KS-21669-20-00

Unavailable

18

BOLT, BUTTON HEAD(3YF)

92014-08025-00

Unavailable

19

STAY 1

4WM-2164F-00-00

Unavailable

20

STAY 2

4WM-2164G-00-00

Unavailable

21

GROMMET (438)

90480-15061-00

Unavailable

22

GUARD, MUD

5KS-21629-00-00

Unavailable

23

RIVET(4PH)

90269-07077-00

Unavailable

24

CLAMP (1J7)

90464-16021-00

Unavailable
