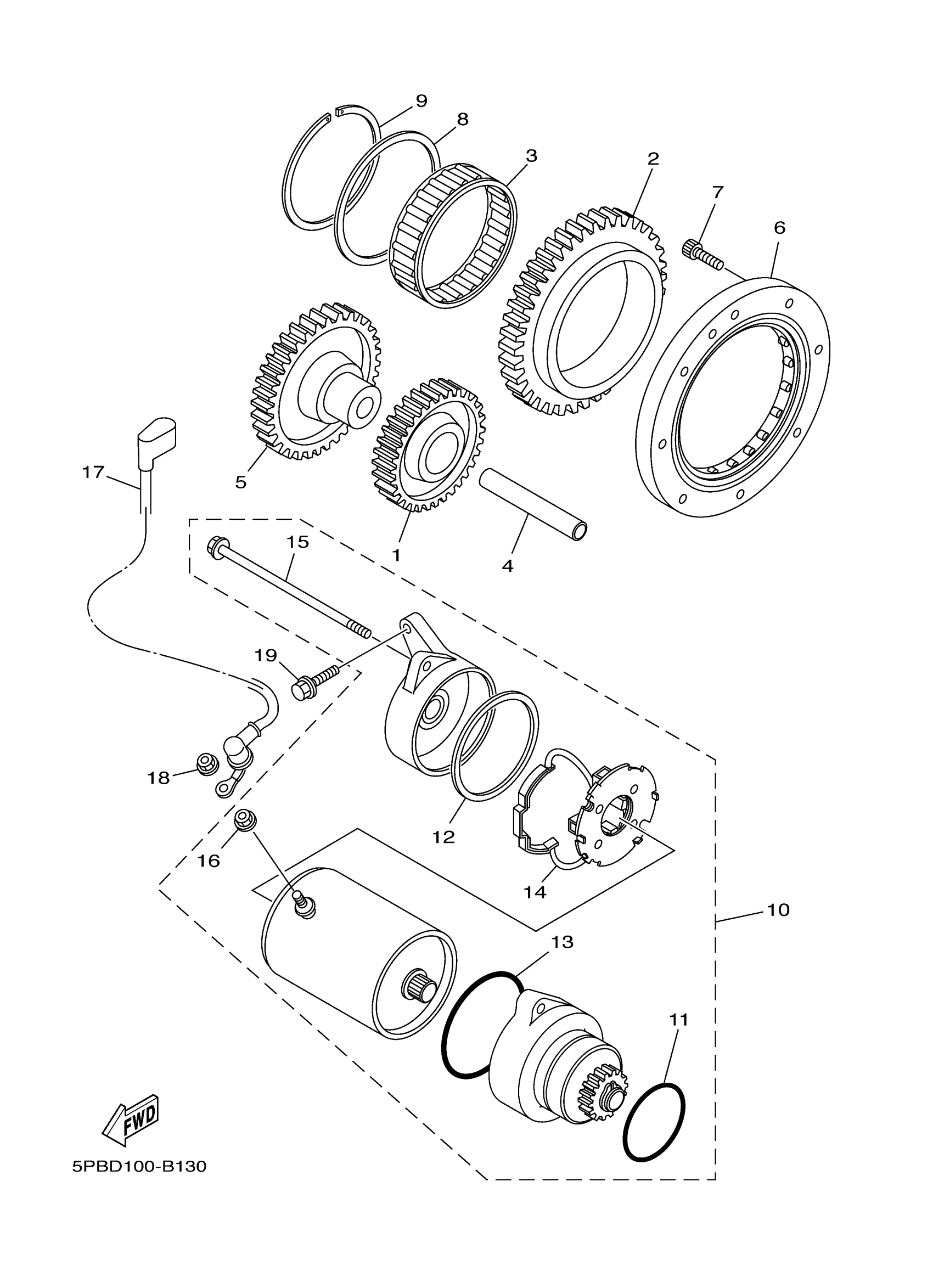

Yamaha XVS11AWWC (V STAR 1100 CLASSIC CA) 5YSU 2007 STARTER Diagram

#

Description
Price

1

GEAR 3

5EL-15515-00-00

$154.99

2

GEAR, IDLER 2

5EL-15517-11-00

$341.99

3

BEARING

93310-5720G-00

Unavailable

4

SHAFT 1

24W-15521-00-00

Unavailable

5

GEAR, IDLER 1

5EL-15512-00-00

$200.99

6

STARTER ONE-WAY ASSY

99999-03908-00

$831.99

7

BOLT,SOCKET

91317-06016-00

$1.25

8

WASHER, PLATE

90201-72008-00

$33.99

9

CIRCLIP

93440-68180-00

$20.99

10

MOTOR ASSY

5EL-81890-01-00

$405.99

11

O-RING

1J7-81847-60-00

$38.99

12

GASKET

35C-81844-00-00

Unavailable

13

O-RING

5A8-81847-10-00

Unavailable

14

BRUSH HOLDER ASSY

5A8-81840-10-00

Unavailable

15

BOLT

5A8-81826-10-00

Unavailable

16

NUT

4XV-8182A-00-00

Unavailable

17

CORD, STARTER MOTOR

5JN-81815-00-00

Unavailable

18

NUT

4XV-8182A-00-00

Unavailable

19

BOLT, FLANGE

95814-06025-00

Unavailable
