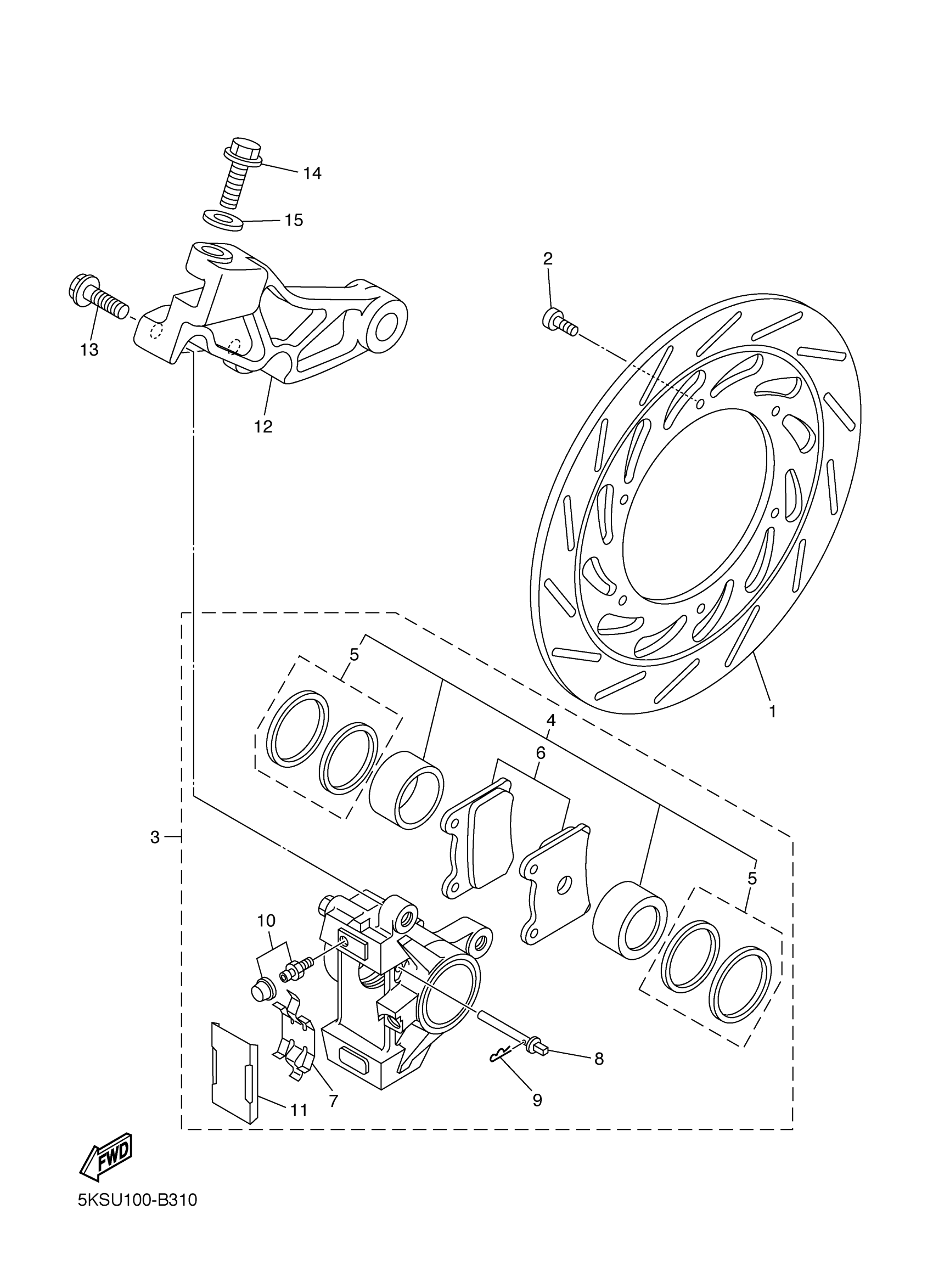

Yamaha XVS11AWWC (V STAR 1100 CLASSIC CA) 5YSU 2007 REAR BRAKE CALIPER Diagram

DISC, REAR BRAKE 2

5KS-2582W-00-00

$328.99

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

CALIPER ASSY, REAR 2

5EL-2580W-01-00

Unavailable

PISTON ASSY, CALIPER

31A-W0057-00-00

$141.99

PISTON SEAL KIT

31A-W0047-00-00

$57.99

BRAKE PAD KIT

3XF-W0045-50-00

$44.99

SUPPORT, PAD

1WG-25919-00-00

$10.99

PIN, PAD

3HE-25924-00-00

Unavailable

CLIP, PAD PIN

3GM-25925-00-00

$11.99

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

COVER, DUST

51J-25836-01-00

Unavailable

BRACKET, CALIPER

5EL-25819-01-00

Unavailable

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

BOLT, WASHER BASED

90105-10010-00

$9.49

WASHER, PLATE(3BM)

90201-105R9-00

$9.49
