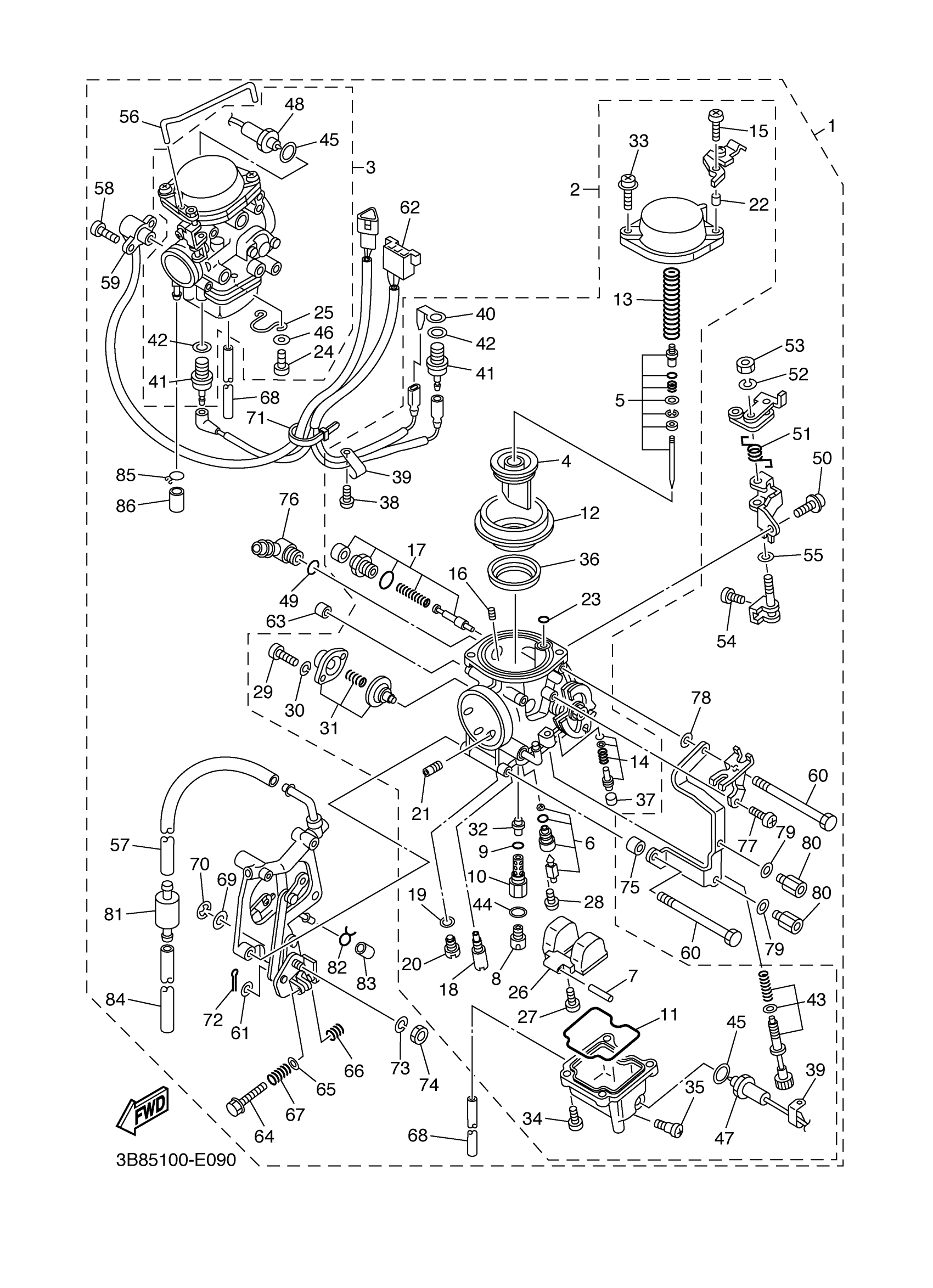

Yamaha XVS11AWWC (V STAR 1100 CLASSIC CA) 5YSU 2007 CARBURETOR Diagram
#
1
CARBURETOR ASSY
5YS-14900-00-00
Unavailable
1
CARBURETOR ASSY
5YS-14906-00-00
Unavailable
2
CARBURETOR ASSY 1
5YS-14901-00-00
Unavailable
3
CARBURETOR ASSY 2
5YS-14902-00-00
Unavailable
8
JET,MAIN #112.5
3G2-1423A-73-A0
Unavailable
10
HOLDER
5KS-14261-00-00
Unavailable
14
PILOT SCREW SET
4XY-14105-00-00
Unavailable
15
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
16
JET, MAIN (#145)
1HX-14231-29-00
Unavailable
17
STARTER SET
5EL-1410A-00-00
Unavailable
18
JET, PILOT (# 17.5)
4KM-14142-17-00
Unavailable
19
RING
5EL-14918-00-00
Unavailable
20
JET,MAIN # 42.5
3G2-1423A-59-00
Unavailable
21
JET, MAIN #63.8
1HX-1423E-25-00
Unavailable
22
RING
4KM-14194-00-00
Unavailable
23
O-RING (493-CARB.)
354-14147-00-00
Unavailable
24
SCREW, PAN HEAD
98517-04012-00
Unavailable
25
CLIP, PIPE
33M-14139-00-00
Unavailable
26
FLOAT
5DM-14985-00-00
Unavailable
27
SCREW, PAN HEAD(JG1)
98507-04008-00
Unavailable
28
SCREW
1FN-14565-00-00
Unavailable
29
SCREW, PAN HEAD(N15)
98507-04014-00
Unavailable
30
WASHER(6TA)
92907-04100-00
Unavailable
31
DIAPHRAGM SET 5
5EL-1490H-00-00
Unavailable
32
NOZZLE, MAIN
5DM-14141-40-00
Unavailable
33
SCREW
4KM-14216-00-00
Unavailable
33
SCREW
4KM-14216-00-00
Unavailable
34
SCREW, PAN HEAD(6G8)
98507-04010-00
Unavailable
34
SCREW, PAN HEAD(6G8)
98507-04010-00
Unavailable
35
PLUG, DRAIN
12R-14191-00-00
Unavailable
36
O-RING
5EL-14561-00-00
Unavailable
37
CAP
3F9-14118-00-00
Unavailable
38
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
39
PLATE
3XV-14243-00-00
Unavailable
40
TERMINAL 1
4DH-82103-00-00
Unavailable
41
HEATER ASSY
5FU-83790-20-00
Unavailable
42
WASHER, PLATE
90201-08016-00
Unavailable
43
THROTTLE SCREW SET
5EL-14103-00-00
Unavailable
44
.. O-RING
22U-14561-00-00
Unavailable
45
WASHER
256-14956-01-00
Unavailable
46
WASHER, PLAIN (646)
92990-04600-00
Unavailable
47
FUEL CUT SOLENOID VALVE
5KS-1410H-00-00
Unavailable
48
FUEL CUT SOLENOID VALVE
5KS-1410H-10-00
Unavailable
49
O-RING
3LN-1416A-00-00
Unavailable
50
SCREW
4SV-24453-00-00
Unavailable
51
SPRING
5EL-14935-00-00
Unavailable
52
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
53
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
54
SCREW
11H-14991-09-00
Unavailable
55
RING
31H-14194-00-00
Unavailable
56
. ROD
5EL-14577-00-00
Unavailable
57
HOSE
5EL-14987-10-00
Unavailable
58
SCREW
4WM-14565-00-00
Unavailable
59
THROTTLE SENSOR ASSY
5EL-85885-00-00
Unavailable
60
. SCREW
5EL-14592-00-00
Unavailable
61
. WASHER
4NK-14285-00-00
Unavailable
62
WIRE, SUB LEAD
5KS-81517-00-00
Unavailable
63
. PIPE
5EL-14196-00-00
Unavailable
64
. SCREW
5EL-14991-00-00
Unavailable
65
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
66
SPRING, PILOT ADJUSTING
5EL-14212-00-00
Unavailable
67
. SPRING, THROTTLE STOP
3F7-14133-00-00
Unavailable
68
PIPE
5EL-14197-10-00
Unavailable
69
WASHER (3H1)
1A8-14953-00-00
Unavailable
70
CLIP
812-14137-00-00
Unavailable
71
CLIP, PIPE
35H-14139-00-00
Unavailable
72
PIN, COTTER
91492-10008-00
Unavailable
73
WASHER, SPRING
92907-06100-00
Unavailable
74
. NUT
95382-06700-00
Unavailable
75
. PIPE
5EL-14149-00-00
Unavailable
76
. NIPPLE
5EL-14251-00-00
Unavailable
77
SCREW, PAN HEAD(6G8)
98507-04010-00
Unavailable
78
WASHER, PLAIN (646)
92990-06600-00
Unavailable
79
. WASHER, PLATE
90201-05328-00
Unavailable
80
SCREW
5EL-14592-10-00
Unavailable
81
FILTER ASSY
4X7-2149Y-00-00
Unavailable
82
CLIP, PIPE
8A7-14139-00-00
Unavailable
83
CAP
895-14169-00-00
Unavailable
84
HOSE
5EL-14987-20-00
Unavailable
85
CLIP
55X-14937-00-00
Unavailable
86
CAP
5GK-1491A-00-00
Unavailable
