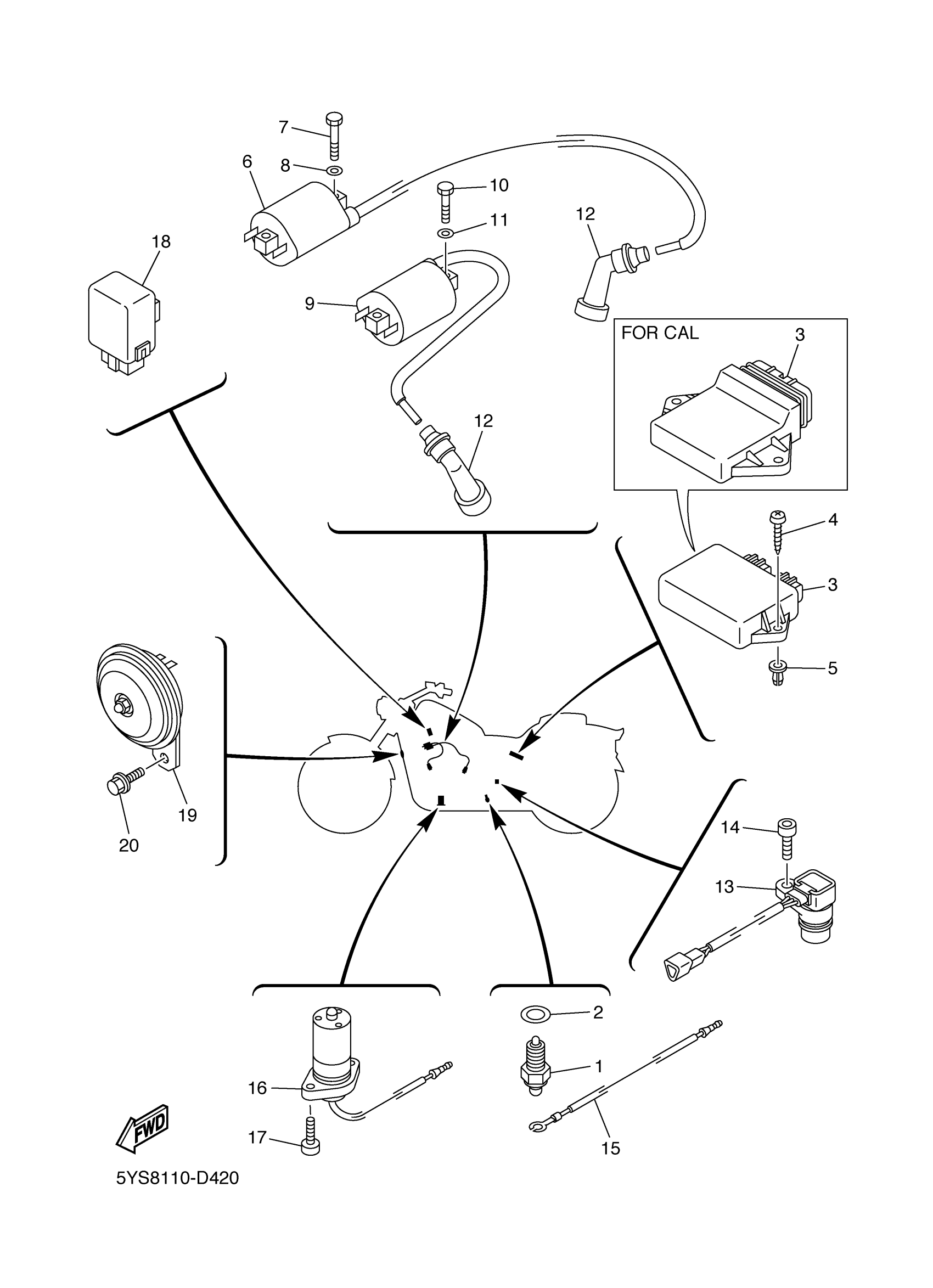

Yamaha XVS11AWTC (V STAR 1100 CLASSIC CA) 5YS9 2005 ELECTRICAL 1 Diagram

#

Description
Price

1

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

2

GASKET (1KH,1.0T)

90430-10148-00

$5.60

3

IGNITOR UNIT ASSY

5EL-82305-00-00

$984.99

3

IGNITOR UNIT ASSY

5KS-82305-30-00

Unavailable

4

SCREW, TRUSS TAP.

97707-60016-00

$1.70

5

PLUG(4BP)

90338-08226-00

$2.17

6

IGNITION COIL ASSY

5EL-82310-00-00

Unavailable

7

BOLT(3JK)

97027-05020-00

$3.29

8

WASHER(1RW)

92907-05600-00

$3.78

9

IGNITION COIL ASSY

5EL-82320-00-00

$172.99

10

BOLT(3JK)

97027-05020-00

$3.29

11

WASHER(1RW)

92907-05600-00

$3.78

12

PLUG CAP ASSY

5EL-82370-00-00

$62.99

13

SENSOR, SPEED

5EL-83755-02-00

$127.99

14

BOLT,SOCKET

91317-06012-00

$8.49

15

WIRE, SUB LEAD

4FL-82541-00-00

Unavailable

16

OIL LEVEL GAUGE ASSY

5EL-85720-02-00

Unavailable

17

BOLT,SOCKET

91317-06016-00

Unavailable

18

FLASHER RELAY ASSY

5EL-83350-01-00

Unavailable

19

HORN

5YS-83371-00-00

Unavailable

20

BOLT, WASHER BASED

90105-082A5-00

Unavailable
