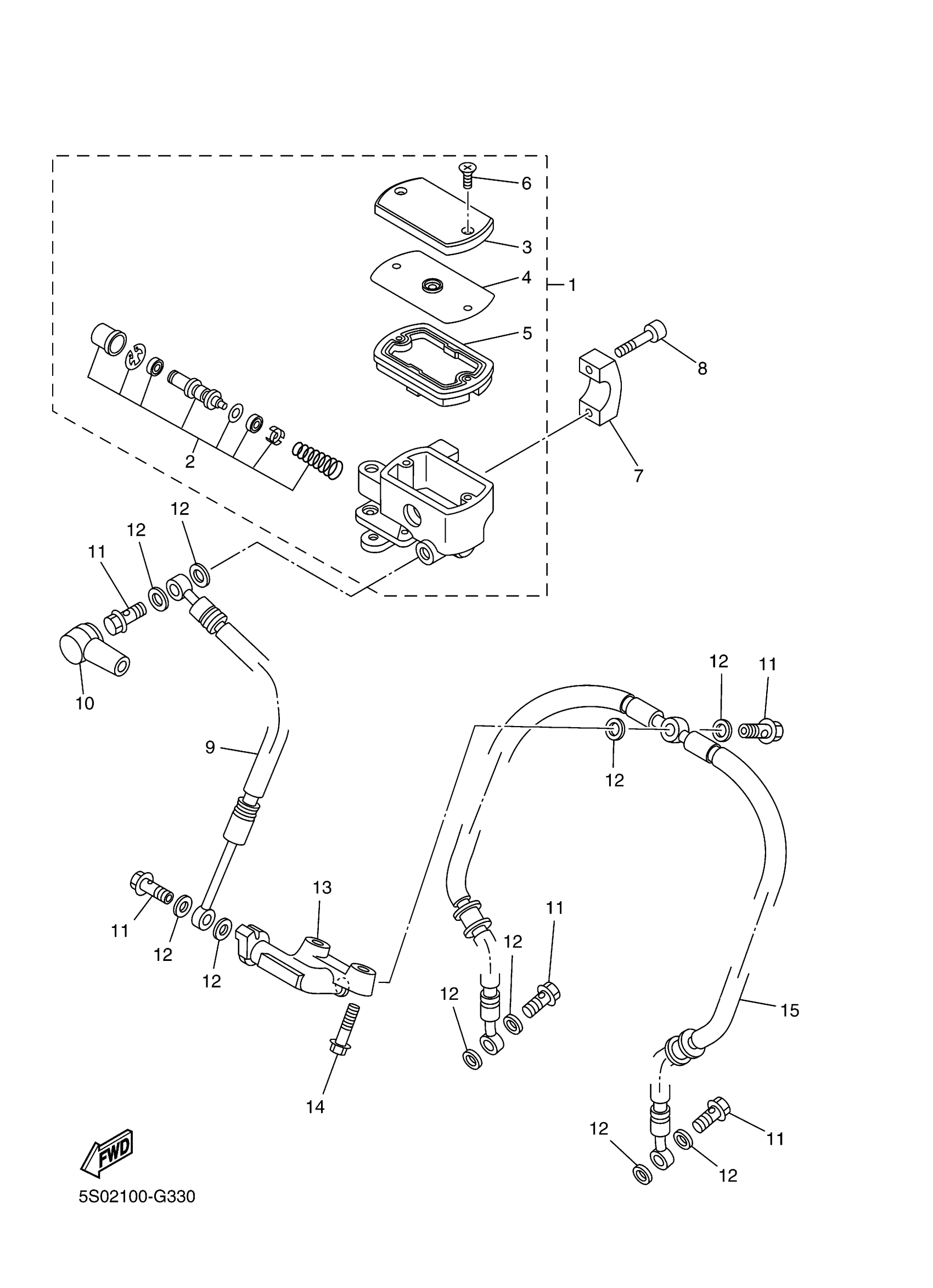

Yamaha XVS11ATXR (V STAR 1100 SILVERADO) 5S020 2008 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

3D8-25870-11-00

$309.99

2

CYLINDER KIT, MASTER

2KR-25807-00-00

Unavailable

3

CAP, RESERVOIR

3D8-25852-10-00

$46.99

4

BUSH,DIAPHRAGM

3D8-25855-00-00

$5.49

5

DIAPHRAGM, RESERVOIR

3D8-25854-00-00

Unavailable

6

SCREW

3D8-2589H-10-00

$7.99

7

BRACKET, MASTER CYLINDER

4TR-25867-00-00

Unavailable

8

BOLT,SOCKET HEAD

91314-06025-00

$8.49

9

HOSE, BRAKE 1

5KS-25872-01-00

Unavailable

10

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

11

BOLT, UNION

90401-10020-00

$9.49

12

GASKET

90430-10005-00

$9.49

13

JOINT

5KS-25885-00-00

Unavailable

14

BOLT, FLANGE

95817-06030-00

$4.29

15

HOSE, BRAKE 2

5KS-25873-00-00

Unavailable
