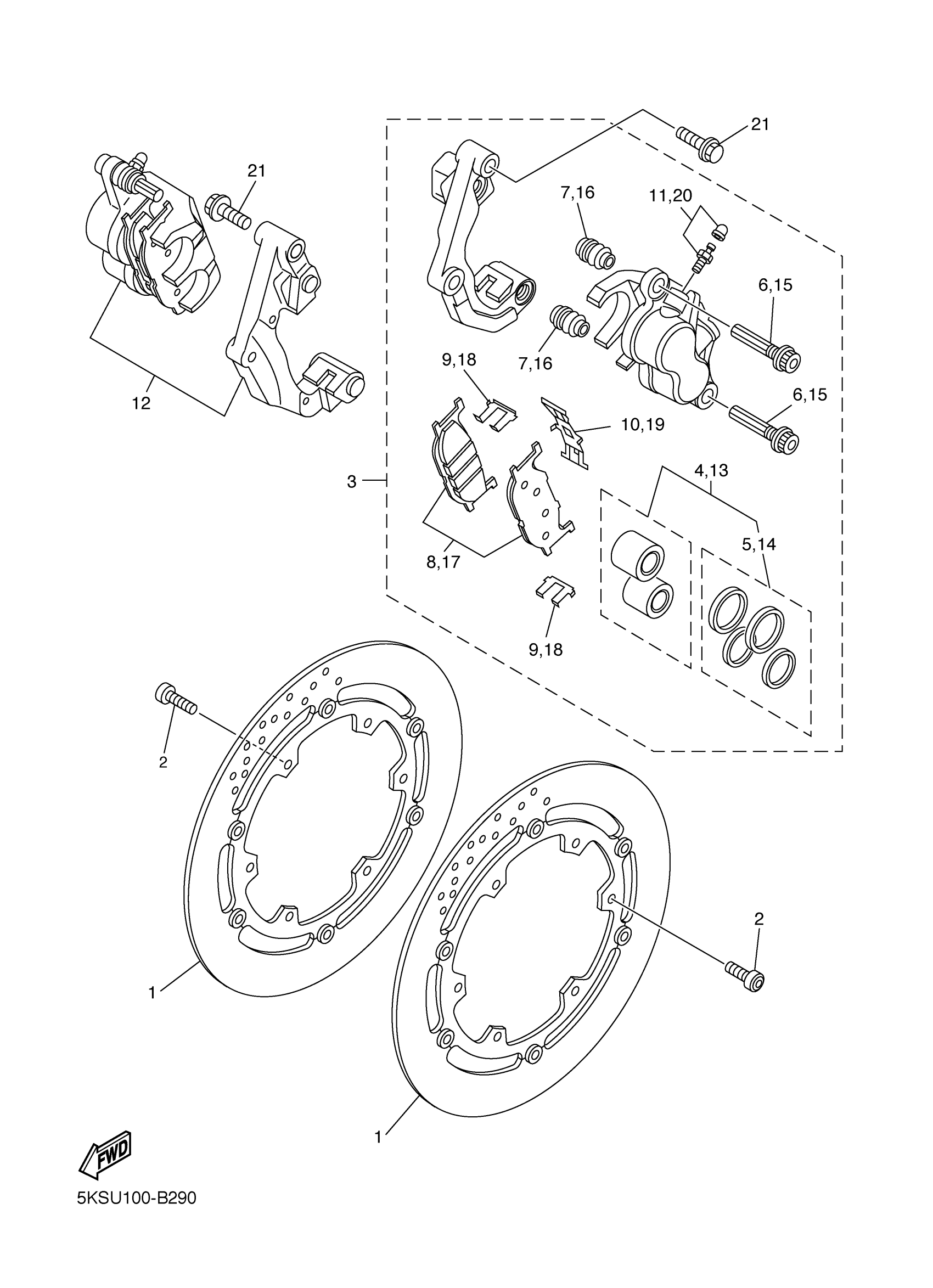

Yamaha XVS11ATXR (V STAR 1100 SILVERADO) 5S020 2008 FRONT BRAKE CALIPER Diagram

DISC BRAKE ASSY

5PX-2581T-10-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

CALIPER ASSY (LEFT)

5KS-2580T-01-00

Unavailable

PISTON ASSY, CALIPER

5KS-25802-00-00

$69.99

CALIPER SEAL KIT

4HC-25803-50-00

$61.99

PIN, SLIDE

5JW-25914-10-00

$22.99

BOOT 2

4TT-25937-00-00

$16.49

BRAKE PAD KIT

5VU-25805-00-00

$44.99

SUPPORT, PAD

4BP-25919-00-00

$44.99

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

BLEED SCREW KIT

15B-W0048-00-00

$19.99

CALIPER ASSY (RIGHT)

5KS-2580U-01-00

Unavailable

PISTON ASSY, CALIPER

5KS-25802-00-00

$69.99

CALIPER SEAL KIT

4HC-25803-50-00

$61.99

PIN, SLIDE

5JW-25914-10-00

$22.99

BOOT 2

4TT-25937-00-00

$16.49

BRAKE PAD KIT

5VU-25805-00-00

$44.99

SUPPORT, PAD

4BP-25919-00-00

$44.99

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

BLEED SCREW KIT

15B-W0048-00-00

$19.99

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
