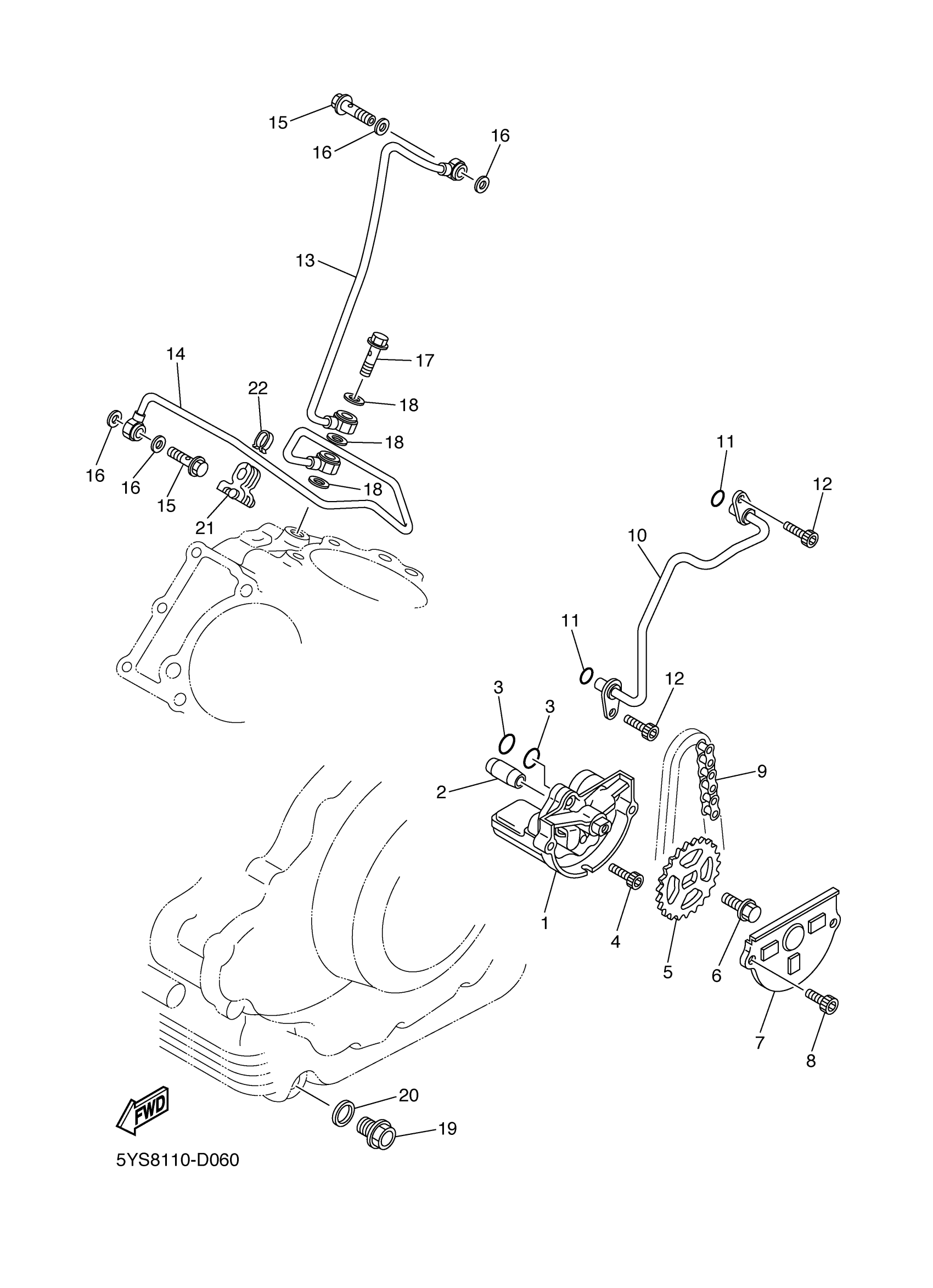

Yamaha XVS11ATVC (V STAR 1100 SILVERADO CA) 5YSN 2006 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5EL-13300-01-00

Unavailable

2

PIN, DOWEL(3XW)

91808-16023-00

$8.49

3

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

4

BOLT,SOCKET

91317-06040-00

$3.76

5

SPROCKET, DRIVEN

4X7-13355-00-00

$20.99

6

BOLT, WASHER BASED (4H7)

90105-06154-00

$4.72

7

COVER, PUMP GEAR

10L-13327-00-00

Unavailable

8

BOLT,SOCKET

91317-06010-00

$9.49

9

CHAIN, OIL PUMP (4H7)

94580-25066-00

$13.49

10

PIPE, DELIVERY 2

4X7-13171-00-00

Unavailable

11

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

12

BOLT,SOCKET

91317-06010-00

$9.49

13

OIL PIPE COMP. 1

3B8-13405-00-00

Unavailable

14

OIL PIPE COMP. 2

3B8-13406-00-00

Unavailable

15

BOLT, UNION

90401-16003-00

Unavailable

16

GASKET (4X7)

90430-17168-00

Unavailable

17

BOLT, UNION(42X)

90401-10102-00

Unavailable

18

GASKET (4X7)

90430-15169-00

Unavailable

19

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

20

GASKET

214-11198-01-00

Unavailable

21

CLAMP

5EL-15485-00-00

Unavailable

22

CLIP (4X7)

90468-05113-00

Unavailable
