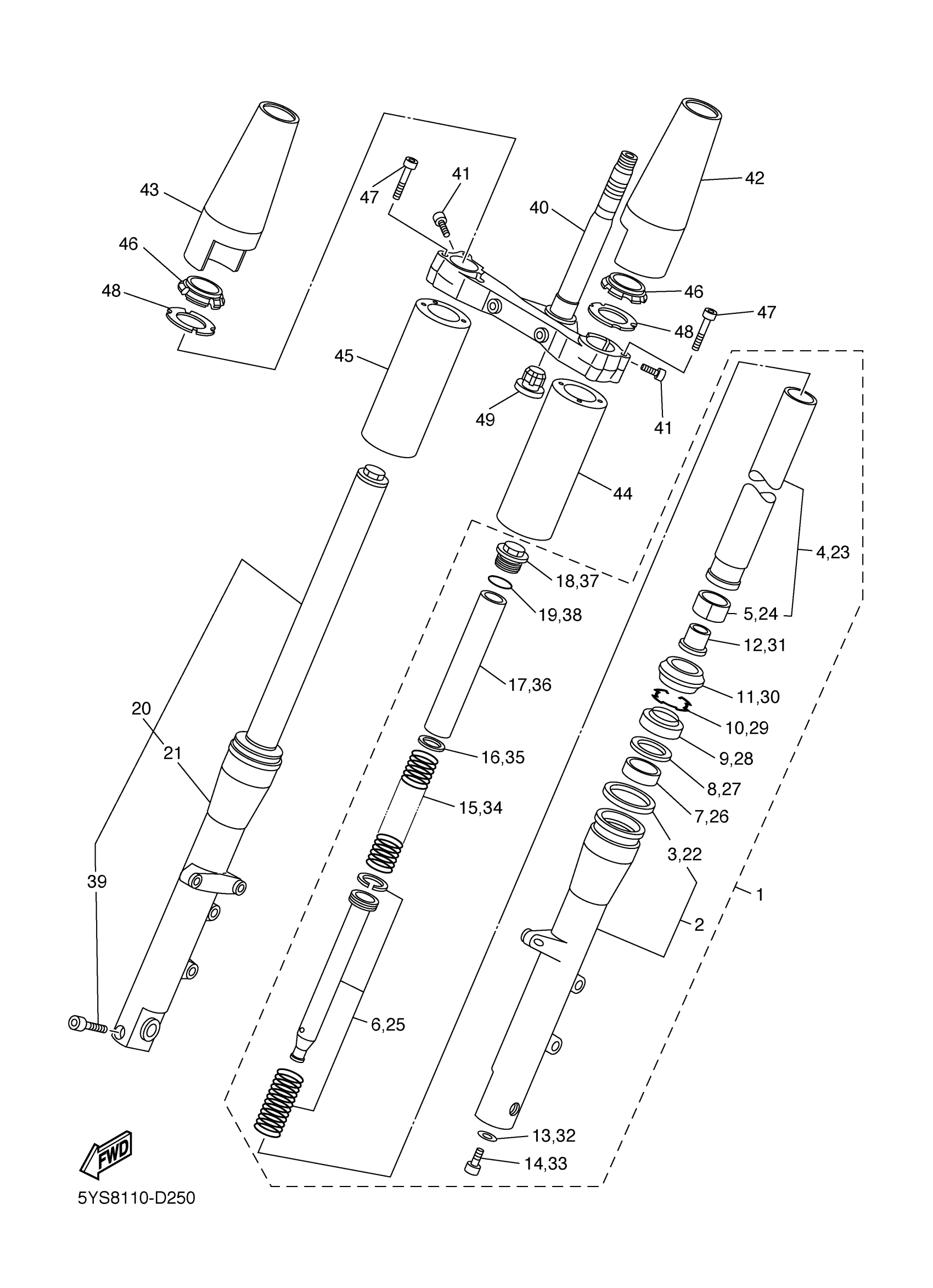

Yamaha XVS11ATVC (V STAR 1100 SILVERADO CA) 5YSN 2006 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
5KS-23102-10-00
Unavailable
2
TUBE, OUTER (LEFT)
5KS-23126-10-00
Unavailable
4
INNER TUBE COMP.1
5KS-23110-10-00
Unavailable
6
CYLINDER COMP., FRONT FORK
5KS-23170-10-00
Unavailable
12
SPINDLE, TAPER
4YR-23173-00-00
Unavailable
15
SPRING, FRONT FORK
5KS-23141-10-00
Unavailable
16
WASHER, SPRING UPPER
4DW-23149-40-00
Unavailable
17
SPACER
5EL-23118-00-00
Unavailable
18
BOLT, CAP
1D0-23111-00-00
Unavailable
19
O-RING
43F-23188-10-00
Unavailable
20
FRONT FORK ASSY (R.H)
5KS-23103-10-00
Unavailable
21
TUBE, OUTER (RIGHT)
5KS-23136-10-00
Unavailable
23
INNER TUBE COMP.1
5KS-23110-10-00
Unavailable
25
CYLINDER COMP., FRONT FORK
5KS-23170-10-00
Unavailable
31
SPINDLE, TAPER
4YR-23173-00-00
Unavailable
34
SPRING, FRONT FORK
5KS-23141-10-00
Unavailable
35
WASHER, SPRING UPPER
4DW-23149-40-00
Unavailable
36
SPACER
5EL-23118-00-00
Unavailable
37
BOLT, CAP
1D0-23111-00-00
Unavailable
38
O-RING
43F-23188-10-00
Unavailable
39
BOLT,SOCKET
91314-08040-00
Unavailable
40
UNDER BRACKET COMP.
5KS-23340-10-00
Unavailable
41
BOLT,SOCKET
91314-08025-00
Unavailable
42
COVER, UPPER 1
5KS-23121-20-00
Unavailable
43
COVER, UPPER 2
5KS-23131-20-00
Unavailable
44
COVER, LOWER 1
5KS-23123-20-00
Unavailable
45
COVER, LOWER 2
5KS-23133-20-00
Unavailable
46
GASKET
5BN-23163-00-00
Unavailable
47
BOLT, SPECIAL
5BN-23394-01-00
Unavailable
48
WASHER, FELT
5KS-23165-10-00
Unavailable
49
COVER, LOWER 1
4KM-23123-01-00
Unavailable
50
FORK SEAL KIT (TWO FORKS)
4EB-W003B-00-00
Unavailable
