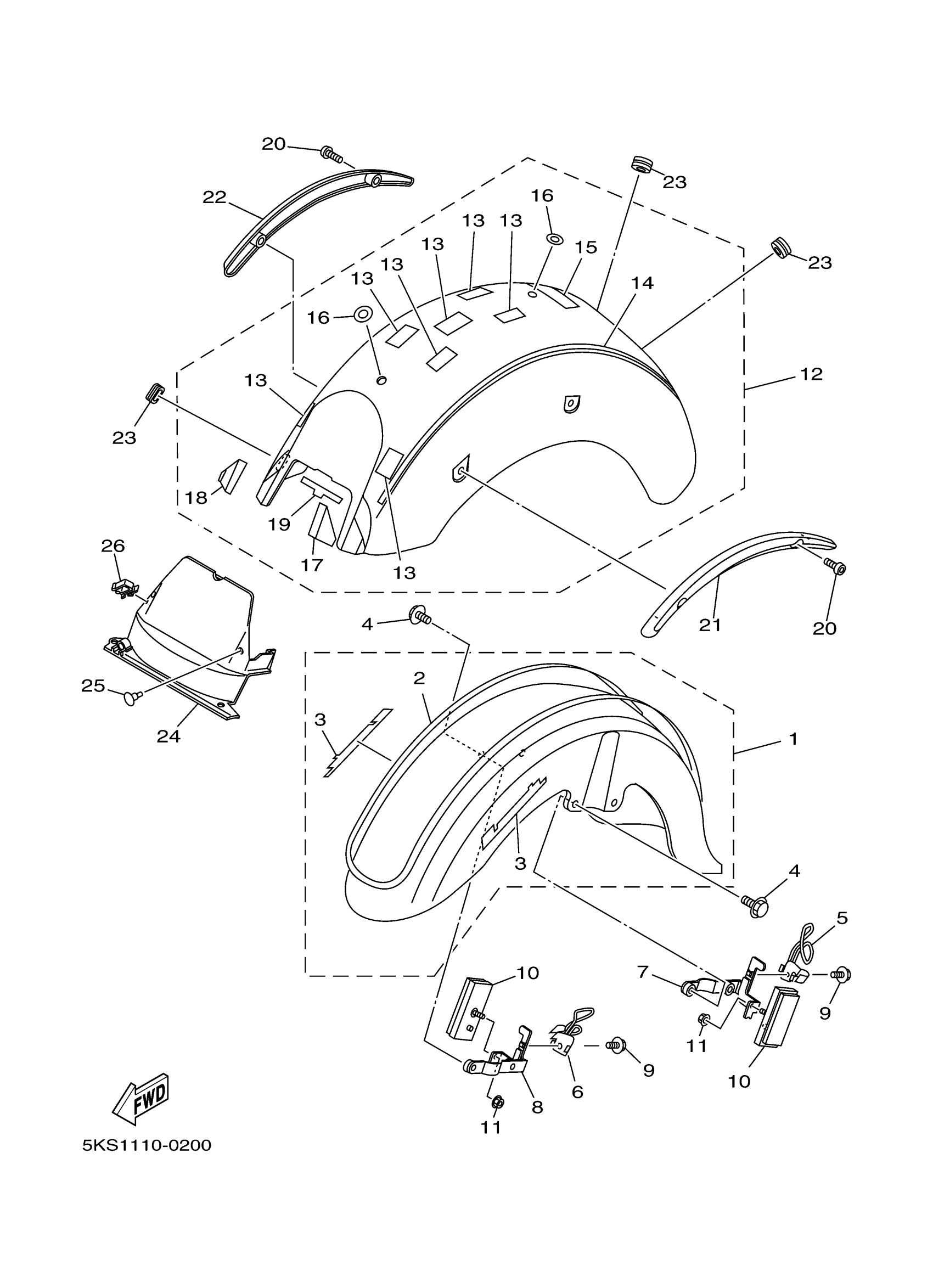

Yamaha XVS11ATVC (V STAR 1100 SILVERADO CA) 5YSN 2006 FENDER Diagram
#
Description
Price
1
FRONT FENDER ASSY
5KS-Y2151-F1-P2
Unavailable
1
FRONT FENDER ASSY
5KS-Y2151-B1-XA
Unavailable
2
GRAPHIC SET, FRONT FENDER
5YS-21570-50-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (LIGHT YELLOWISH GRAY ME 9)
5YS-21570-60-00
Unavailable
5
HOLDER,WIRE 1
5KS-21597-00-00
Unavailable
6
HOLDER, WIRE 2
5KS-21598-00-00
Unavailable
7
STAY 1
5KS-21587-00-00
Unavailable
8
STAY 2
5KS-21588-00-00
Unavailable
12
REAR FENDER COMP. (BLACK METALLIC X)
5KS-Y216R-0A-P2
Unavailable
12
REAR FENDER COMP. (LIGHT YELLOWISH GRAY ME 9) (SILVER 3)
5KS-Y216R-0B-XA
Unavailable
13
SEAL 1
3SP-21732-00-00
Unavailable
14
.. GRAPHIC SET, REAR FENDER (BLACK METALLIC X)
5YS-2165A-50-00
Unavailable
14
.. GRAPHIC SET, REAR FENDER (LIGHT YELLOWISH GRAY ME 9)
5YS-2165A-60-00
Unavailable
15
EMBLEM, YAMAHA
3WF-2153E-71-00
Unavailable
16
SEAL 2
4NK-21735-00-00
Unavailable
17
SEAL
5KS-21669-00-00
Unavailable
18
SEAL
5KS-21669-10-00
Unavailable
19
SEAL
5KS-21669-20-00
Unavailable
20
BOLT, BUTTON HEAD(3YF)
92014-08025-00
Unavailable
21
STAY 1
4WM-2164F-00-00
Unavailable
22
STAY 2
4WM-2164G-00-00
Unavailable
23
GROMMET (438)
90480-15061-00
Unavailable
24
GUARD, MUD
5KS-21629-00-00
Unavailable
25
RIVET(4PH)
90269-07077-00
Unavailable
26
CLAMP (1J7)
90464-16021-00
Unavailable
