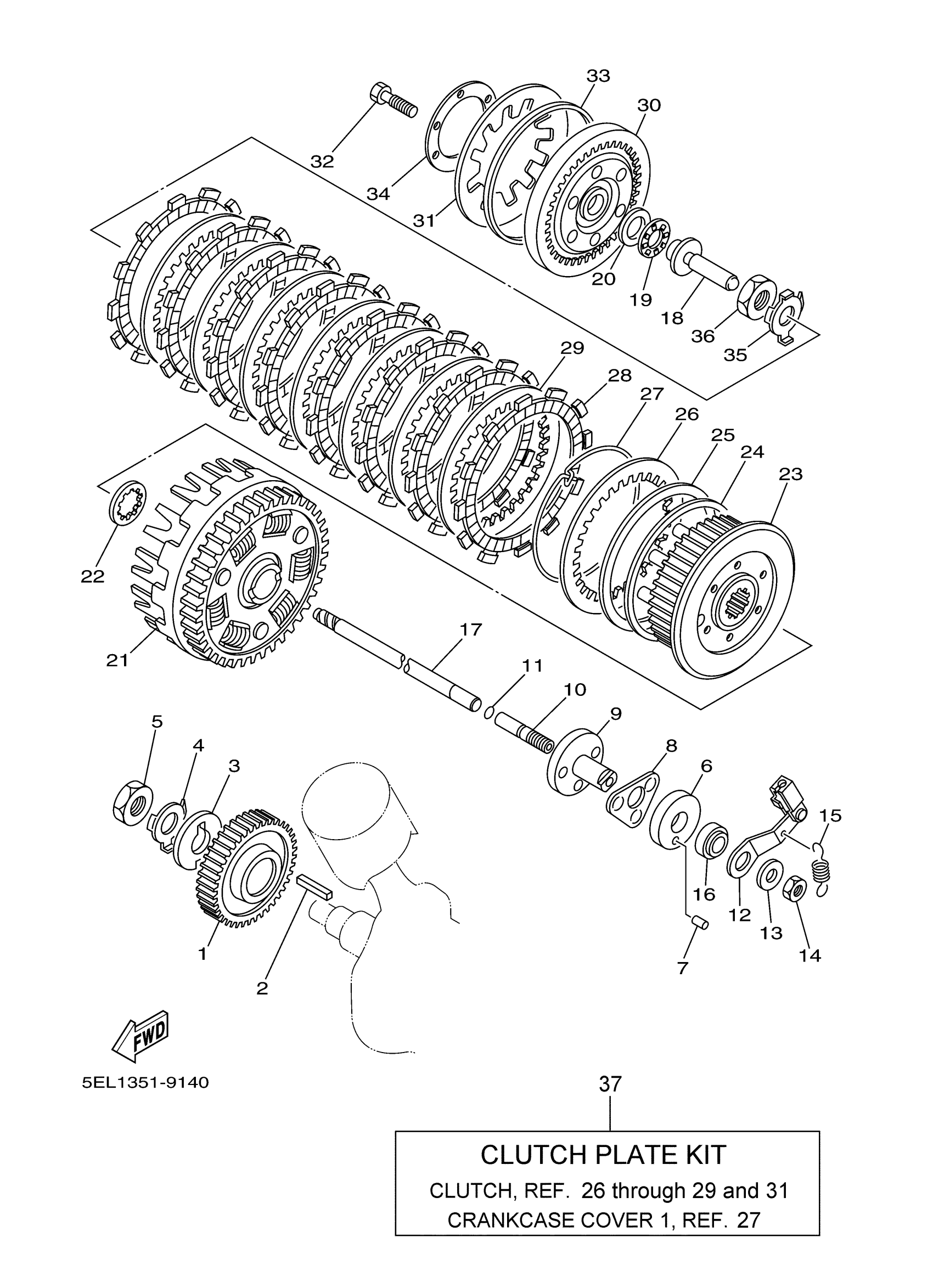

Yamaha XVS11ATTC (V STAR 1100 SILVERADO CA) 5YSD 2005 CLUTCH Diagram
#
Description
Price
3
WASHER, CLAW (4X7)
90214-20022-00
Unavailable
6
HOUSING, PUSH SCREW
2H7-16396-00-00
Unavailable
9
SCREW, PUSH
2H7-16341-00-00
Unavailable
12
PUSH LEVER ASSY
5EL-16340-01-00
Unavailable
15
SPRING TENSION 360163450000
90506-10069-00
Unavailable
16
OIL SEAL (14X25X5-2H7)
93104-14059-00
Unavailable
17
ROD, PUSH 2
5EL-16357-00-00
Unavailable
18
ROD, PUSH 1
4X7-16356-00-00
Unavailable
19
BEARING, THRUST (713)
93340-21505-00
Unavailable
20
WASHER, PLATE (5G3)
90201-154E9-00
Unavailable
21
PRIMARY DRIVEN GEAR COMP.
4X7-16150-02-00
Unavailable
22
PLATE, THRUST 1
2JN-16154-00-00
Unavailable
23
BOSS, CLUTCH
5EL-16371-00-00
Unavailable
24
PLATE, SEAT
4X7-16384-00-00
Unavailable
25
SPRING, CLUTCH BOSS
4X7-16383-01-00
Unavailable
26
PLATE, CLUTCH 1
4X7-16324-10-00
Unavailable
27
RING, CLUTCH BOSS
4X7-16385-00-00
Unavailable
28
PLATE, FRICTION
22U-16321-00-00
Unavailable
29
PLATE, CLUTCH 2
1TA-16325-10-00
Unavailable
30
PLATE, PRESSURE 1
1TA-16351-01-00
Unavailable
31
SPRING, CLUTCH 2
1TA-16334-00-00
Unavailable
32
BOLT, HEXAGON
97017-06025-00
Unavailable
33
HOUSING, SPRING
1TA-16335-00-00
Unavailable
34
PLATE, PRESSURE 2
1TA-16352-00-00
Unavailable
35
WASHER, LOCK (34L)
90215-20231-00
Unavailable
36
NUT (34L)
90170-20327-00
Unavailable
37
CLUTCH PLATE KIT
5P9-W001G-00-00
Unavailable
