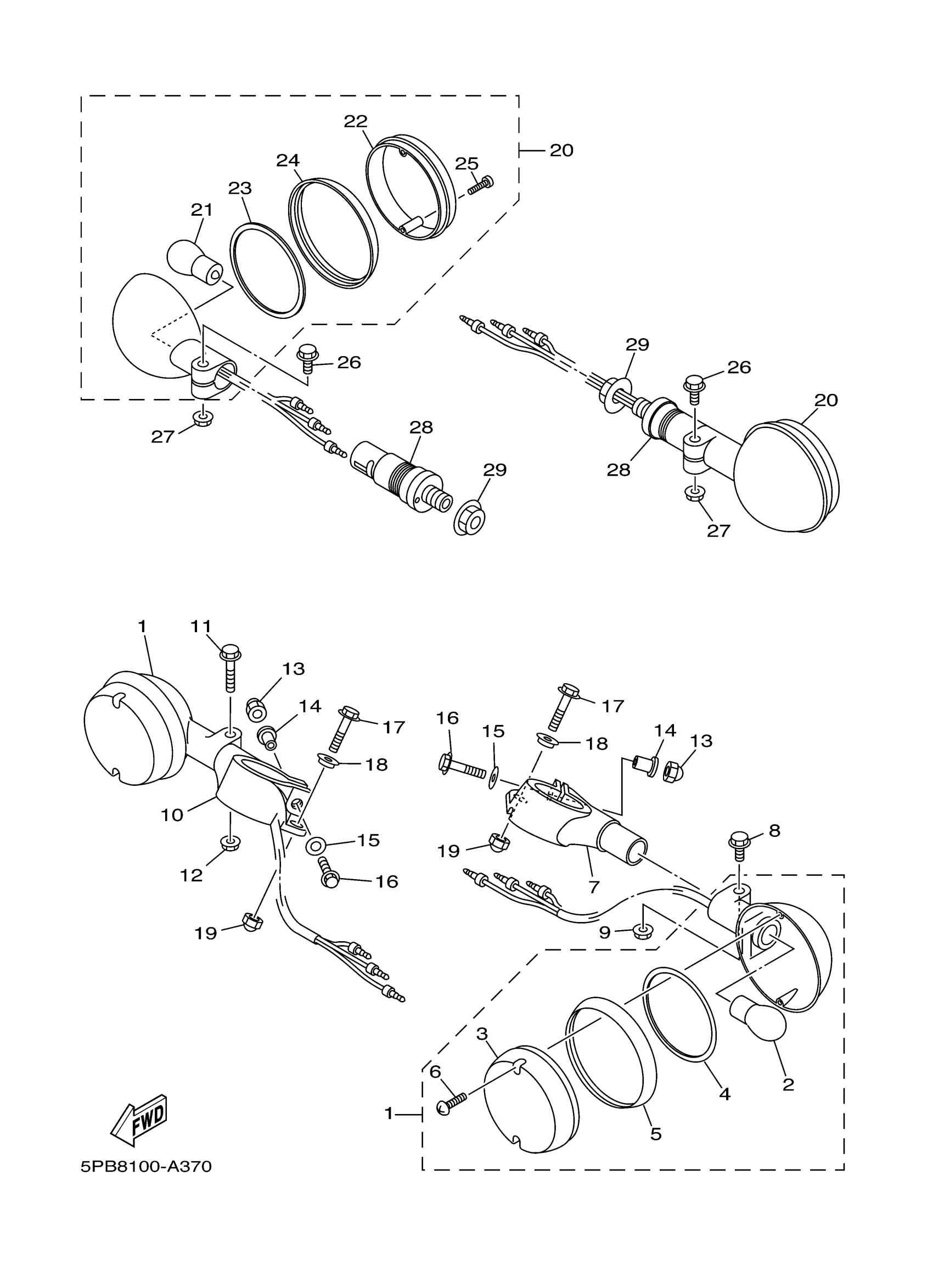

Yamaha XVS1100RC (V-STAR 1100 CUSTOM CA) 5PBE 2003 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

4WM-83310-01-00

$118.99

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

42X-83312-09-00

Unavailable

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

. LENS, RIM

42X-83363-00-00

Unavailable

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

BASE, FLASHER 1

4VR-83314-00-00

Unavailable

8

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

9

NUT, FLANGE(7NB)

95780-06500-00

$2.60

10

BASE, FLASHER 2

4VR-83324-00-00

$167.99

11

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

12

NUT, FLANGE(7NB)

95780-06500-00

$2.60

13

NUT, CROWN(1FN)

90176-06055-00

$5.60

14

COLLAR

90387-06076-00

$5.60

15

WASHER, PLATE

90201-06045-00

$8.49

16

BOLT, FLANGE

95817-06025-00

Unavailable

17

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

18

SPACER (25G)

90560-06244-00

Unavailable

19

NUT (J17)

95380-06800-00

Unavailable

20

REAR FLASHER LIGHT ASSY 1

1AA-83330-K9-00

Unavailable

21

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

22

LENS, FLASHER

42X-83312-09-00

Unavailable

23

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

24

. LENS, RIM

42X-83363-00-00

Unavailable

25

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

26

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

27

NUT, FLANGE(7NB)

95780-06500-00

$2.60

28

STAY, FLASHER 1

1AA-83318-00-00

Unavailable

29

NUT(3EF)

90179-12657-00

Unavailable
