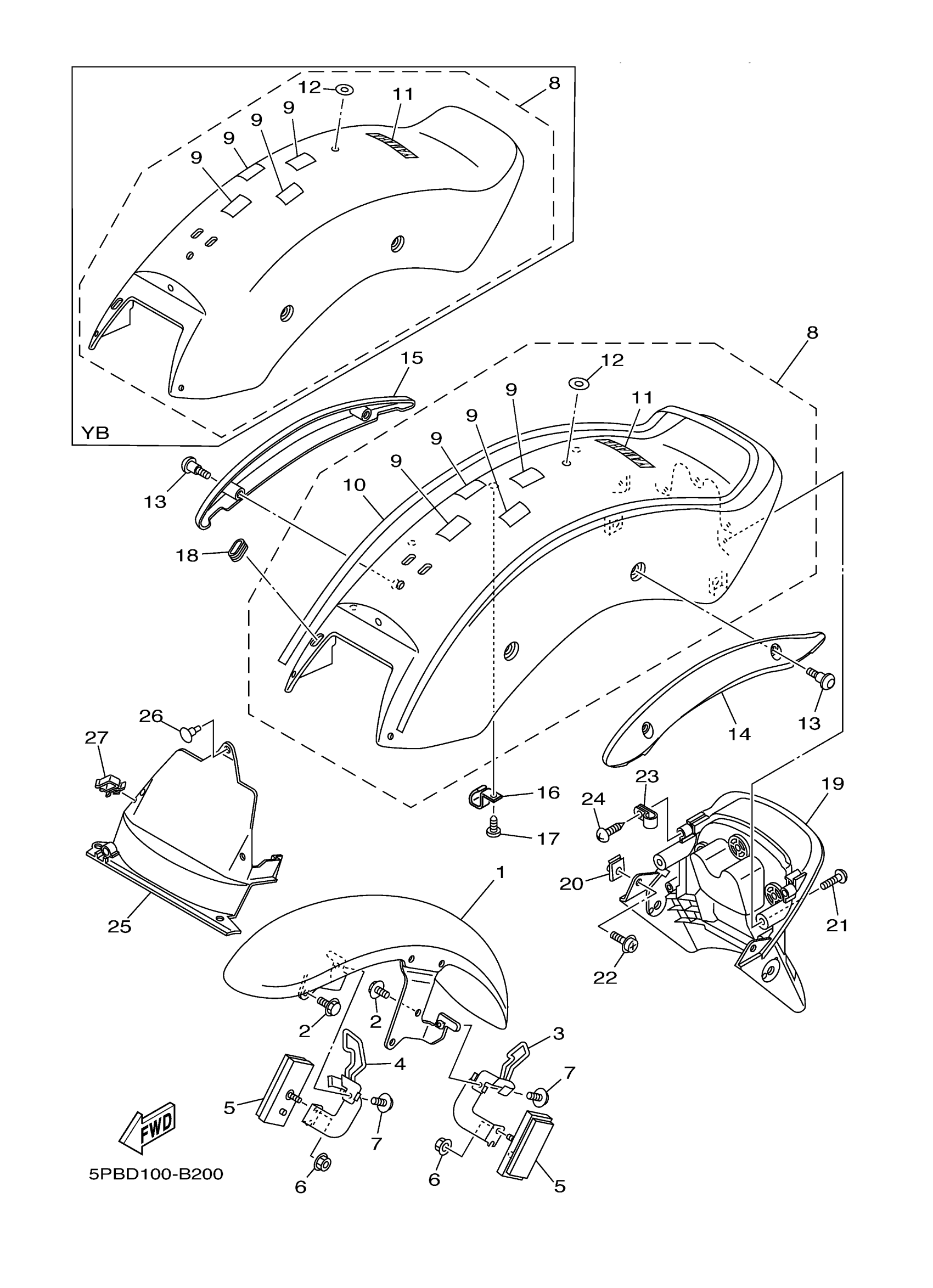

Yamaha XVS1100RC (V-STAR 1100 CUSTOM CA) 5PBE 2003 FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP.
5EL-21510-01-33
Unavailable
1
FRONT FENDER COMP. (DARK GRAY METALLIC A)
5EL-21510-01-P5
Unavailable
3
HOLDER,WIRE 1
5EL-21597-10-00
Unavailable
4
HOLDER, WIRE 2
5EL-21598-10-00
Unavailable
7
BOLT, FLANGE
95817-06014-00
Unavailable
8
REAR FENDER COMP. (YAMAHA BLACK)
5EL-W2161-C0-33
Unavailable
8
REAR FENDER COMP. (BLACK GOLD) (DARK GRAY METALLIC A)
5EL-W2161-S0-8X
Unavailable
10
. GRAPHIC, REAR FENDER (DARK GRAY METALLIC A)
5PB-21675-30-00
Unavailable
12
. SEAL 2
4VN-21735-00-00
Unavailable
14
STAY 1
5EL-2164F-00-00
Unavailable
15
STAY 2
5EL-2164G-00-00
Unavailable
16
CLAMP
90461-06001-00
Unavailable
17
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
18
GROMMET
90480-01001-00
Unavailable
19
FENDER 2
5EL-2162R-00-00
Unavailable
20
NUT, SPRING
90183-051A0-00
Unavailable
21
SCREW, C.R. BINDING (2T4)
90154-05004-00
Unavailable
22
SCREW, WITH WASHER
90159-05056-00
Unavailable
23
CLAMP(N07)
90461-10135-00
Unavailable
24
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
25
GUARD, MUD
5EL-21629-00-00
Unavailable
26
RIVET(4PH)
90269-07077-00
Unavailable
27
CLAMP (1J7)
90464-16021-00
Unavailable
