Description

Price

1

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

2

GASKET (5R6)

90430-10171-00

$3.18

3

IGNITOR UNIT ASSY

5EL-82305-00-00

$984.99

4

SCREW, TRUSS TAP.

97707-60016-00

$1.70

5

PLUG(4BP)

90338-08226-00

$2.17

6

IGNITION COIL ASSY

5EL-82310-00-00

Unavailable

7

BOLT (2E9)

90101-05396-00

Unavailable

8

WASHER(1RW)

92907-05600-00

$3.78

9

IGNITION COIL ASSY

5EL-82320-00-00

$172.99

10

BOLT(3JK)

97027-05020-00

$3.29

11

WASHER(1RW)

92907-05600-00

$3.78

12

PLUG CAP ASSY

5EL-82370-00-00

$62.99

13

SENSOR, SPEED

5EL-83755-02-00

$127.99

14

BOLT,SOCKET

91317-06012-00

$8.49

15

WIRE, SUB LEAD

4FL-82541-00-00

Unavailable

16

OIL LEVEL GAUGE ASSY

5EL-85720-02-00

Unavailable

17

BOLT,SOCKET

91317-06016-00

Unavailable

18

FLASHER RELAY ASSY

5EL-83350-01-00

Unavailable

19

HORN

55V-83371-00-00

Unavailable

20

BOLT, WASHER BASED

90105-082A5-00

Unavailable

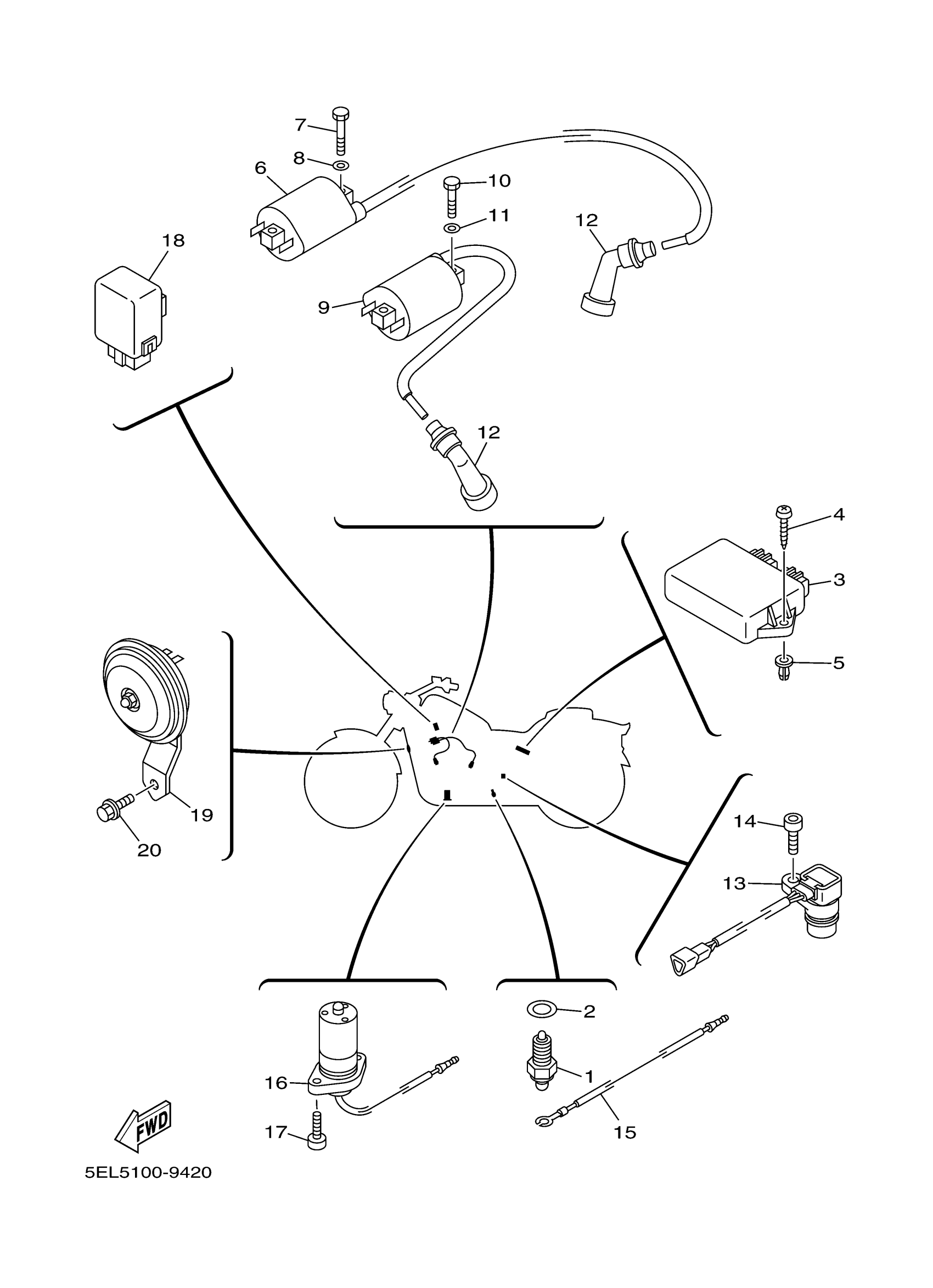

Yamaha XVS1100RC (V-STAR 1100 CUSTOM CA) 5PBE 2003 ELECTRICAL 1 Diagram

NEUTRAL SWITCH ASSY

GASKET (5R6)

IGNITOR UNIT ASSY

SCREW, TRUSS TAP.

PLUG(4BP)

IGNITION COIL ASSY

BOLT (2E9)

WASHER(1RW)

IGNITION COIL ASSY

BOLT(3JK)

WASHER(1RW)

PLUG CAP ASSY

SENSOR, SPEED

BOLT,SOCKET

WIRE, SUB LEAD

OIL LEVEL GAUGE ASSY

BOLT,SOCKET

FLASHER RELAY ASSY

HORN

BOLT, WASHER BASED
