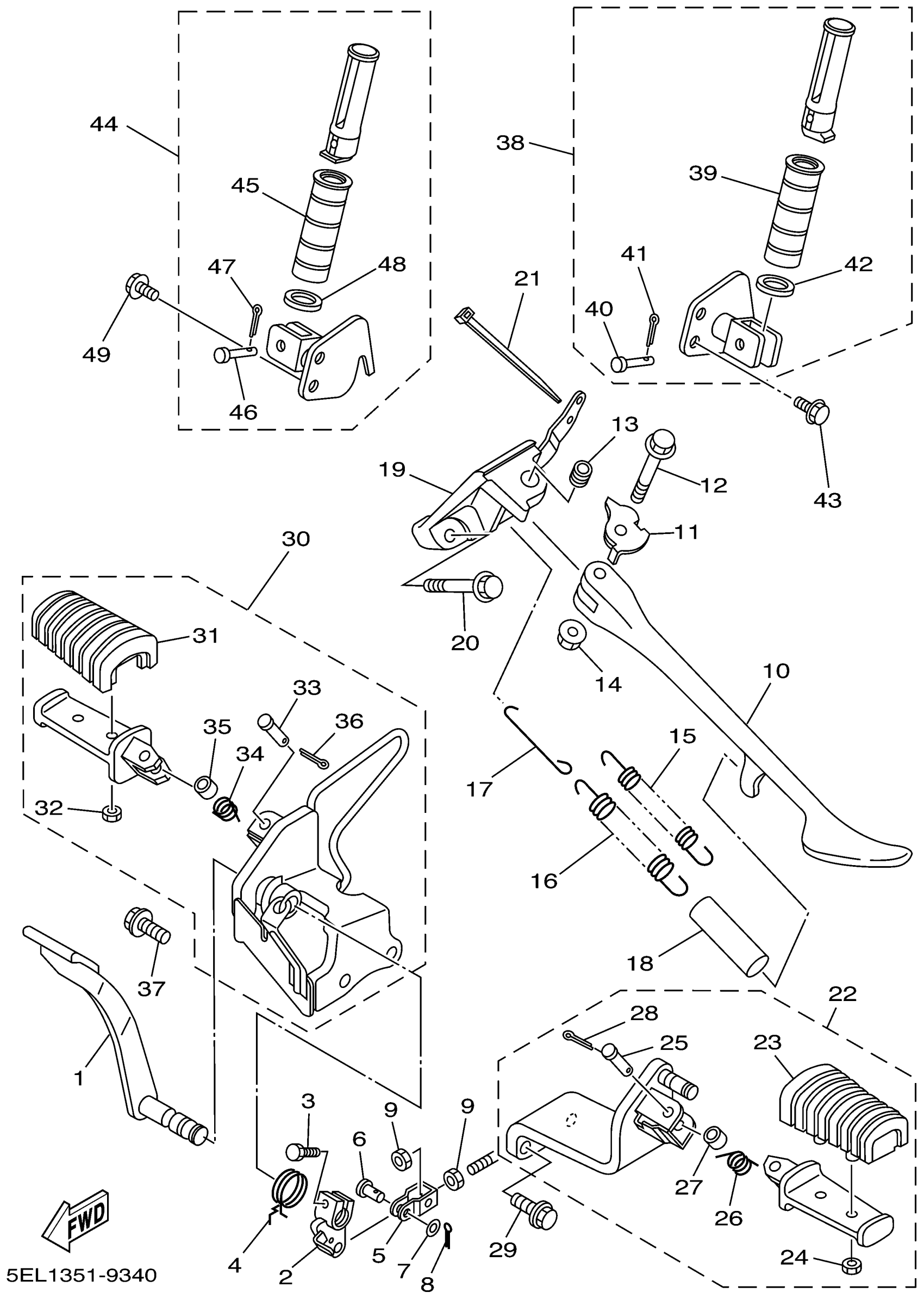

Yamaha XVS1100NC (V-STAR 1100 CUSTOM CA) 5PB5 2001 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

5EL-27211-00-00

$86.99

2

LEVER

5EL-27262-01-00

Unavailable

3

BOLT(3DM)

97024-06020-00

$8.49

4

SPRING, RETURN

5EL-27216-00-00

$6.99

5

JOINT

4BP-27222-02-00

$29.99

6

PIN, CLEVIS(2YK)

90240-08124-00

$7.49

7

WASHER, PLATE 1562722600

90201-08083-00

$9.49

8

PIN, COTTER (648)

91490-20015-00

$2.20

9

NUT, HEXAGON SMALL

95317-08700-00

$9.49

10

STAND, SIDE

4KU-27311-13-00

Unavailable

11

WASHER

5EL-27322-01-00

Unavailable

12

BOLT, WASHER BASED

90105-10012-00

$12.49

13

COLLAR(3XP)

90387-1003G-00

$21.99

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

15

SPRING, TENSION(4KU)

90506-23490-00

$11.49

16

SPRING, TENSION

90506-29507-00

Unavailable

17

LINK, SIDE STAND

5EL-27315-00-00

Unavailable

18

HOSE (L60)

90445-16641-00

Unavailable

19

BRACKET, SIDE STAND

5EL-27321-00-00

Unavailable

20

BOLT, FLANGE(4GB)

95817-10045-00

Unavailable

21

BAND

1UA-82591-00-00

Unavailable

22

FRONT FOOTREST ASSY (LEFT)

5EL-27410-00-00

Unavailable

23

COVER, FOOTREST

4VR-27413-00-00

Unavailable

24

NUT, SELF-LOCKING

95617-06100-00

Unavailable

25

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

26

SPRING, TORSION(1MY)

90508-18696-00

Unavailable

27

COLLAR(1HX)

90387-087K5-00

Unavailable

28

PIN, COTTER

91490-25020-00

Unavailable

29

BOLT, WASHER BASED

90105-102A3-00

Unavailable

30

FRONT FOOTREST ASSY (RIGHT)

5EL-27420-00-00

Unavailable

31

COVER, FOOTREST

4VR-27413-00-00

Unavailable

32

NUT, SELF-LOCKING

95617-06100-00

Unavailable

33

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

34

SPRING, TORSION(1MY)

90508-18696-00

Unavailable

35

COLLAR(1HX)

90387-087K5-00

Unavailable

36

PIN, COTTER

91490-25020-00

Unavailable

37

BOLT, WASHER BASED

90105-102A3-00

Unavailable

38

REAR FOOTREST ASSY 1

5EL-27430-00-00

Unavailable

39

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

40

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

41

PIN, COTTER (648)

91490-20015-00

$2.20

42

WASHER, PLATE(8CJ)

90201-210U0-00

Unavailable

43

BOLT, WASHER BASED

90105-082A5-00

Unavailable

44

REAR FOOTREST ASSY 2

5EL-27440-00-00

Unavailable

45

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

46

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

47

PIN, COTTER (648)

91490-20015-00

$2.20

48

WASHER, PLATE(8CJ)

90201-210U0-00

Unavailable

49

BOLT, WASHER BASED

90105-082A5-00

Unavailable
