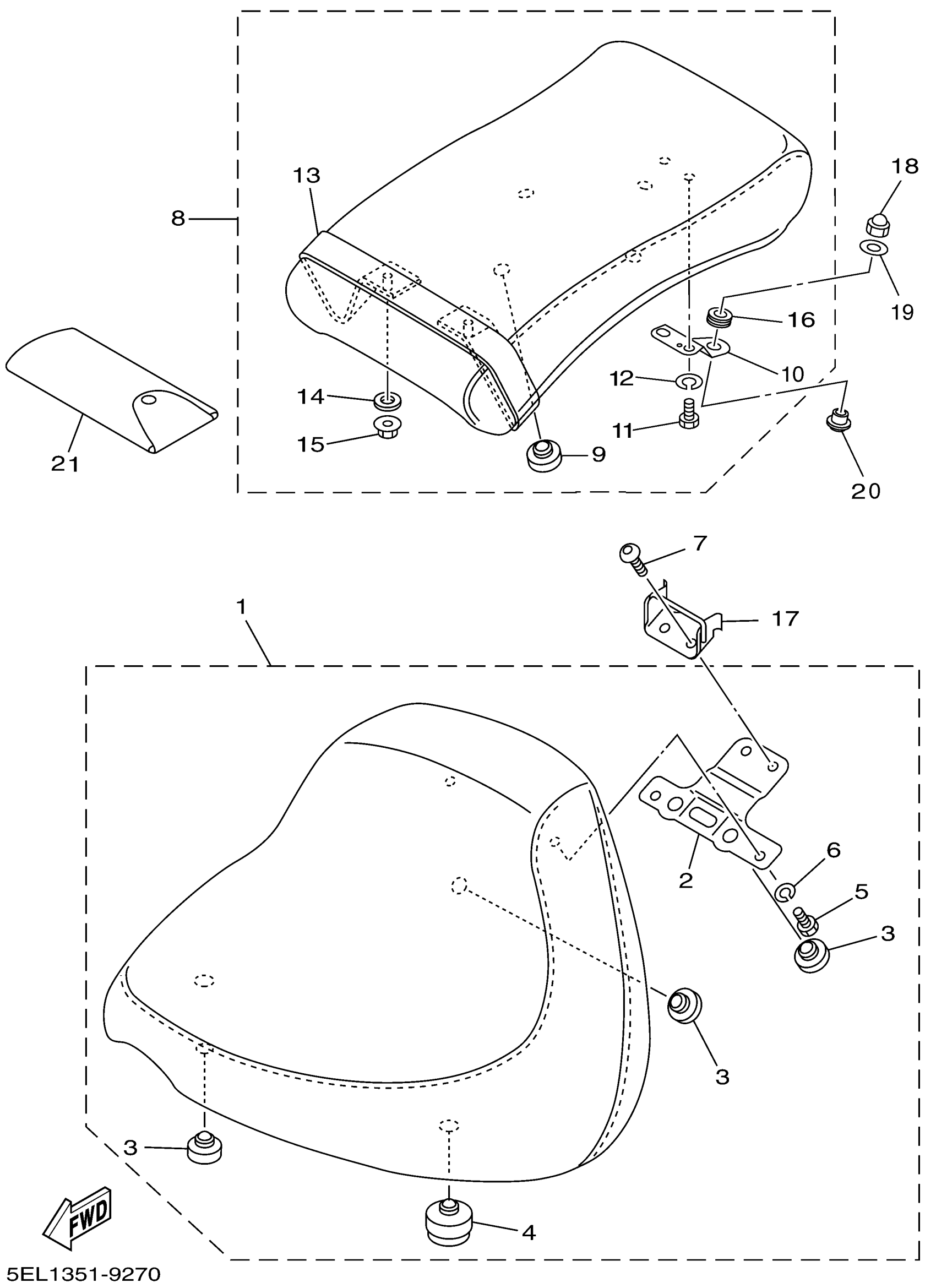

Yamaha XVS1100NC (V-STAR 1100 CUSTOM CA) 5PB5 2001 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

5EL-24710-00-00

Unavailable

2

BRACKET, SEAT LEVER 1

5EL-2475H-00-00

$18.44

3

PAD, SEAT

22W-24741-00-00

$7.20

4

PAD, SEAT

1T4-24741-00-00

Unavailable

5

BOLT, HEXAGON

97017-06012-00

$2.44

6

WASHER, SPRING

92907-06100-00

$0.98

7

BOLT, BUTTON HEAD

92017-06016-00

$5.75

8

TANDEM SEAT ASSY

5EL-24750-10-00

Unavailable

9

PAD, SEAT

22W-24741-00-00

$7.20

10

BRACKET, SEAT LEVER 2

5PB-2475J-00-00

Unavailable

11

BOLT, HEXAGON

97017-06012-00

$2.44

12

WASHER, SPRING

92907-06100-00

$0.98

13

. BAND, SEAT

5EL-24734-00-00

Unavailable

14

WASHER, PLATE

90201-06380-00

$0.54

15

NUT, FLANGE(4MV)

95707-06500-00

$0.73

16

GROMMET

5YS-24742-00-00

Unavailable

17

BRACKET

5EL-2475N-00-00

Unavailable

18

NUT, CROWN

90176-08001-00

Unavailable

19

WASHER, PLATE

90201-08042-00

Unavailable

20

COLLAR 2

5PB-2471M-00-00

$17.30

21

TOOL KIT

5EL-28100-10-00

Unavailable
