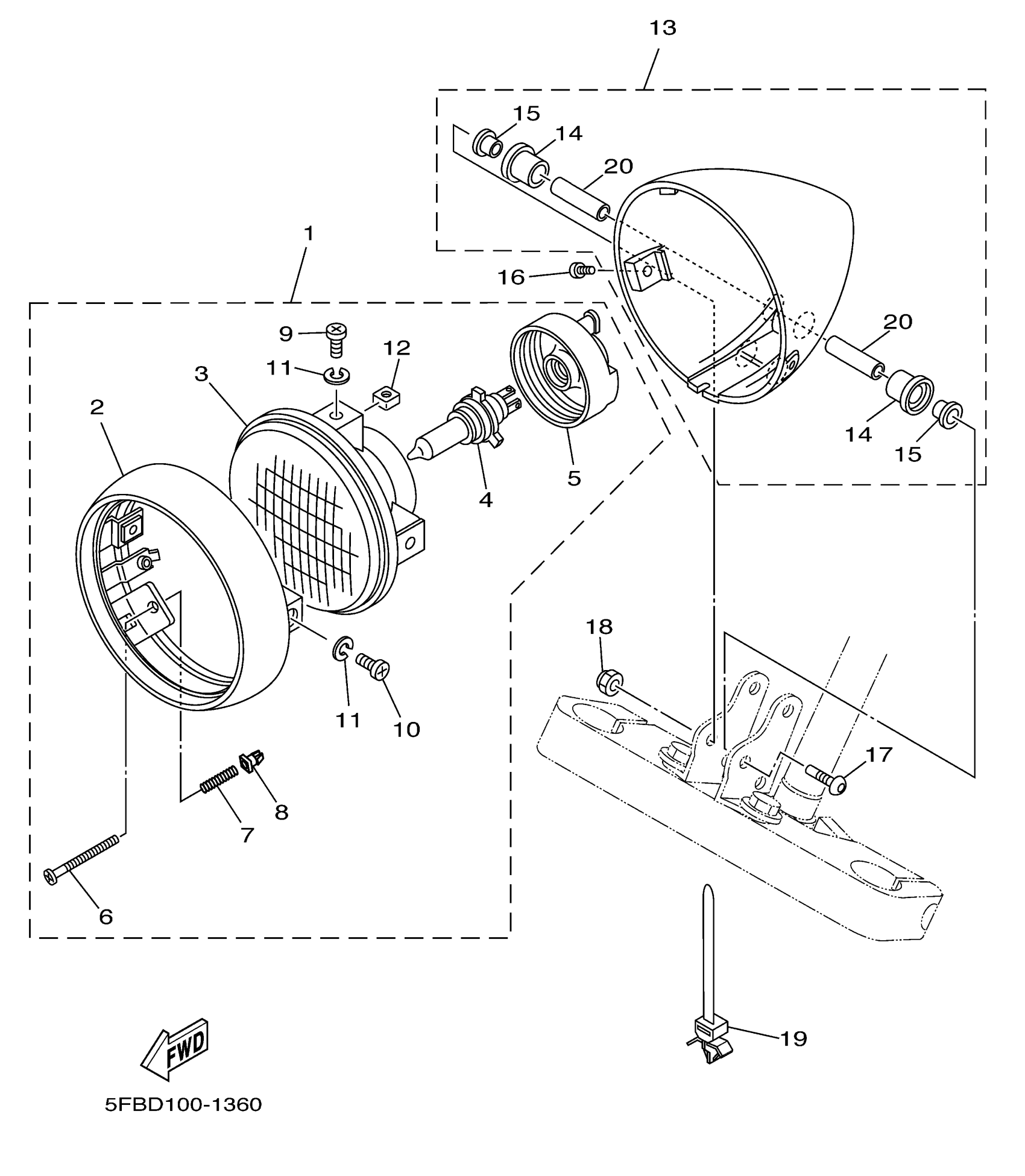

Yamaha XVS1100NC (V-STAR 1100 CUSTOM CA) 5PB5 2001 HEADLIGHT Diagram
#
Description
Price
1
HEADLIGHT UNIT ASSY
5KP-84310-01-00
Unavailable
2
RIM, HEADLIGHT
5JX-84315-01-00
Unavailable
3
LENS ASSY
5KP-84321-00-00
Unavailable
5
COVER, SOCKET
4JG-84397-00-00
Unavailable
8
. NUT, ADJUSTING
47J-84334-00-00
Unavailable
11
WASHER, SPRING
92995-06100-00
Unavailable
13
BODY ASSY
5JX-84330-00-00
Unavailable
16
SCREW, PAN HEAD
90157-05011-00
Unavailable
17
BOLT, BUTTON HEAD(4TR)
92014-06045-00
Unavailable
18
NUT, CROWN (35R)
90176-06047-00
Unavailable
19
CLAMP(2TV)
90464-10112-00
Unavailable
20
COLLAR 1
5JX-84388-00-00
Unavailable
