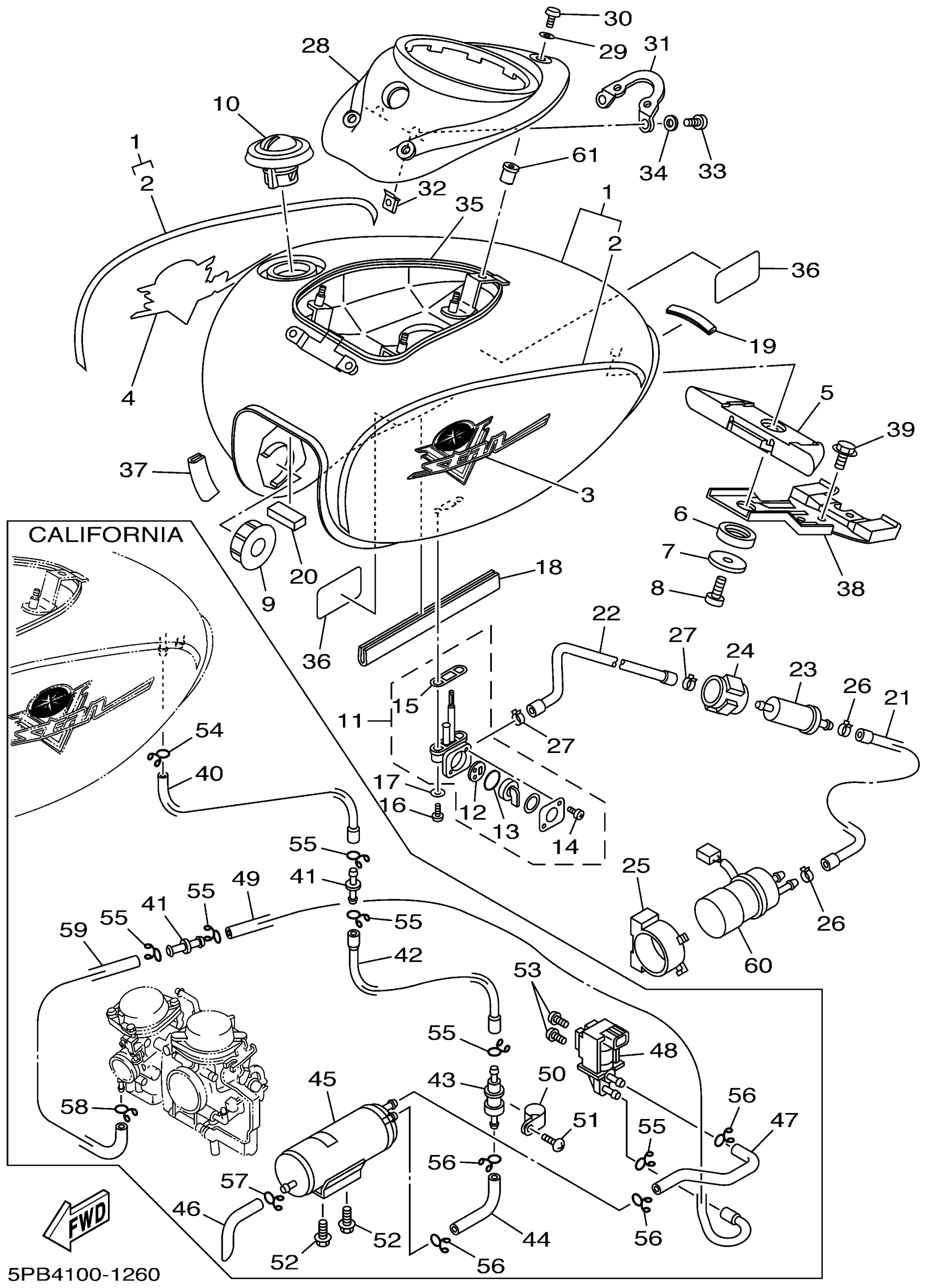

Yamaha XVS1100NC (V-STAR 1100 CUSTOM CA) 5PB5 2001 FUEL TANK Diagram
#
1
FUEL TANK COMP.
5EL-Y2410-32-W1
Unavailable
1
FUEL TANK COMP.
5EL-Y2410-12-W3
Unavailable
1
FUEL TANK COMP.
5EL-YK241-12-33
Unavailable
1
FUEL TANK COMP.
5EL-YK241-32-33
Unavailable
2
. GRAPHIC SET (DARK GRAYISH PURPLE METALLIC 1)
5PB-24240-10-00
Unavailable
3
EMBLEM
5KS-2416B-00-00
Unavailable
4
EMBLEM
5KS-2417B-00-00
Unavailable
5
DAMPER, LOCATING 2
5EL-24182-00-00
Unavailable
12
VALVE PACKING
3AC-24523-00-00
Unavailable
13
SEAL, COCK
3AJ-24534-01-00
Unavailable
14
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
15
O-RING
4X8-24512-00-00
Unavailable
16
SCREW 256241430000
90149-06011-00
Unavailable
17
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
18
MOLE, SIDE COVER 1
1FK-2171L-00-00
Unavailable
19
MOLD, FUEL TANK
5EL-24188-00-00
Unavailable
20
DAMPER, SIDE COVER
3XV-21717-00-00
Unavailable
21
PIPE, FUEL 1
5EL-24311-00-00
Unavailable
22
PIPE 3
5EL-24313-00-00
Unavailable
23
FILTER ASSY
1FK-24560-10-00
Unavailable
24
BRACKET, FILTER
1FK-24566-00-00
Unavailable
25
BAND 1
4EB-24398-00-00
Unavailable
26
CLIP (7K7)
90467-11044-00
Unavailable
27
CLIP
90467-11028-00
Unavailable
28
COVER, TOP
5EL-2171A-00-00
Unavailable
29
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
30
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
31
BRACKET, SEAT
5EL-2412F-00-00
Unavailable
32
NUT, SPRING(3GM)
90183-05061-00
Unavailable
33
SCREW, PAN
98517-05012-00
Unavailable
34
WASHER(1RW)
92907-05600-00
Unavailable
35
SEAL
5EL-2414G-00-00
Unavailable
36
SEAL
4DN-21268-00-00
Unavailable
37
MOLD, FUEL TANK
5EL-24188-00-00
Unavailable
38
PLATE, FITTING 1
5EL-2411F-00-00
Unavailable
39
BOLT, FLANGE
95817-08012-00
Unavailable
40
PIPE 10
5EL-24321-10-00
Unavailable
41
JOINT
4XY-14568-00-00
Unavailable
42
PIPE 2
5EL-24312-00-00
Unavailable
43
ROLL OVER VALVE ASSY
25H-24180-00-00
Unavailable
44
PIPE 4
5EL-24314-00-00
Unavailable
45
CANISTER ASSY
5EL-24170-00-00
Unavailable
46
PIPE 6
5EL-24316-10-00
Unavailable
47
PIPE 7
5EL-24317-00-00
Unavailable
48
VALVE, OUTER VENT CONTROL 2
4WM-14896-00-00
Unavailable
49
PIPE 5
5EL-24315-00-00
Unavailable
50
CLAMP
90464-15014-00
Unavailable
51
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
52
BOLT, FLANGE
95817-06012-00
Unavailable
53
GASKET, EXHAUST
98507-05008-00
Unavailable
54
CLIP (16G)
90467-08021-00
Unavailable
55
CLIP
90467-090A2-00
Unavailable
56
CLIP
90467-100A1-00
Unavailable
57
CLIP(1JH)
90467-11106-00
Unavailable
58
CLIP (8L2)
90467-08017-00
Unavailable
59
PIPE 11
5EL-24322-10-00
Unavailable
60
FUEL PUMP COMP.
3YX-13907-02-00
Unavailable
61
NUT
90179-05009-00
Unavailable
