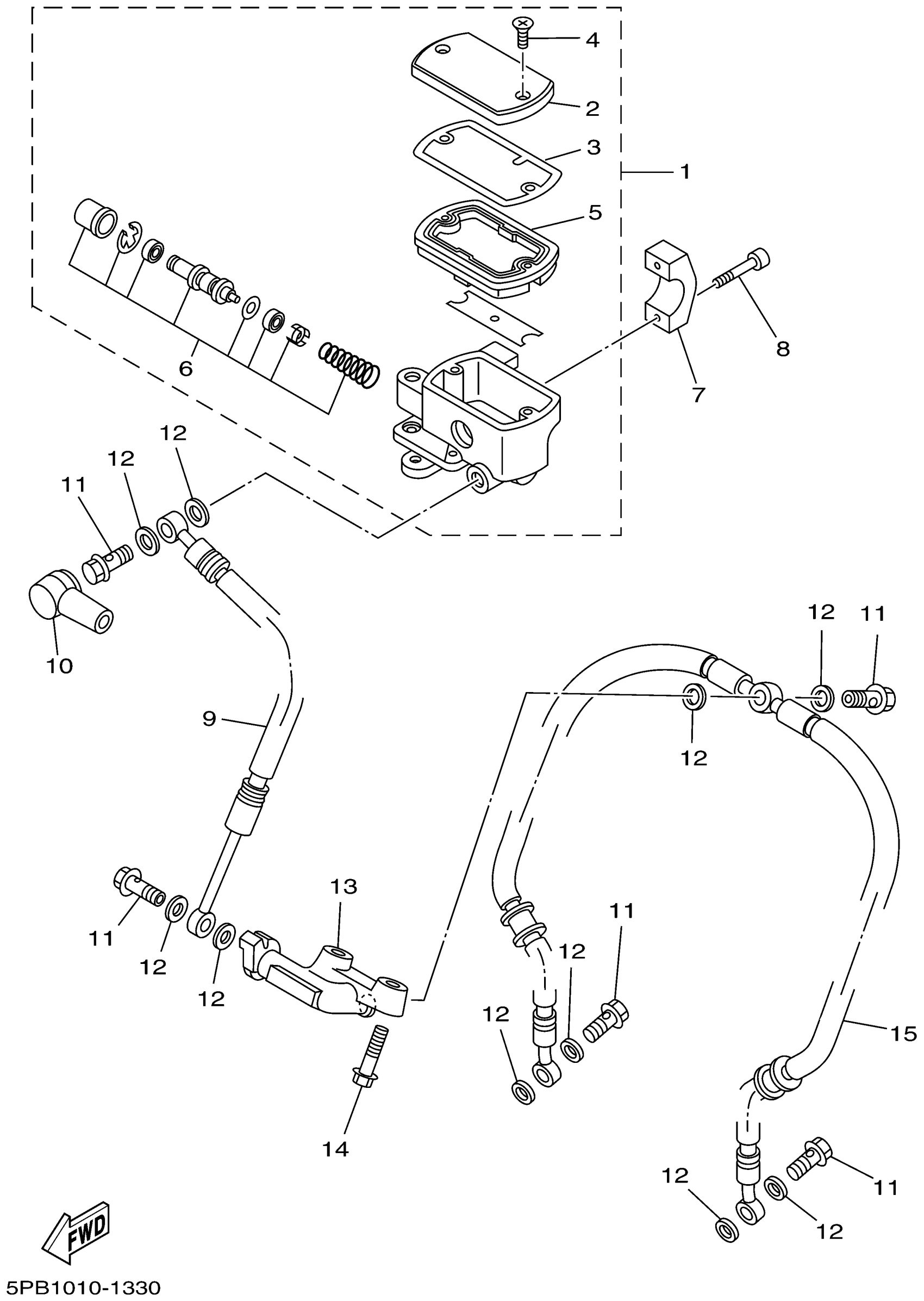

Yamaha XVS1100NC (V-STAR 1100 CUSTOM CA) 5PB5 2001 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

3D8-25870-11-00

$309.99

2

CAP, RESERVOIR

4TR-25852-01-00

$64.99

3

SEAL, PISTON

4BH-25815-00-00

Unavailable

4

SCREW, FLAT HEAD

98780-04012-00

$2.87

5

DIAPHRAGM, RESERVOIR

4BH-25854-02-00

Unavailable

6

CYLINDER KIT, MASTER

2KR-25807-00-00

Unavailable

7

BRACKET, MASTER CYLINDER

4TR-25867-00-00

Unavailable

8

BOLT,SOCKET HEAD

91314-06025-00

$8.49

9

HOSE, BRAKE 1

5PB-25872-00-00

Unavailable

10

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

11

BOLT, UNION(3GM)

90401-10159-00

$11.49

12

WASHER, PLATE(481)

90201-10118-00

Unavailable

13

JOINT

5PB-25885-00-00

Unavailable

14

BOLT, FLANGE

95817-06025-00

Unavailable

15

HOSE, BRAKE 2

5PB-25873-00-00

$140.99
