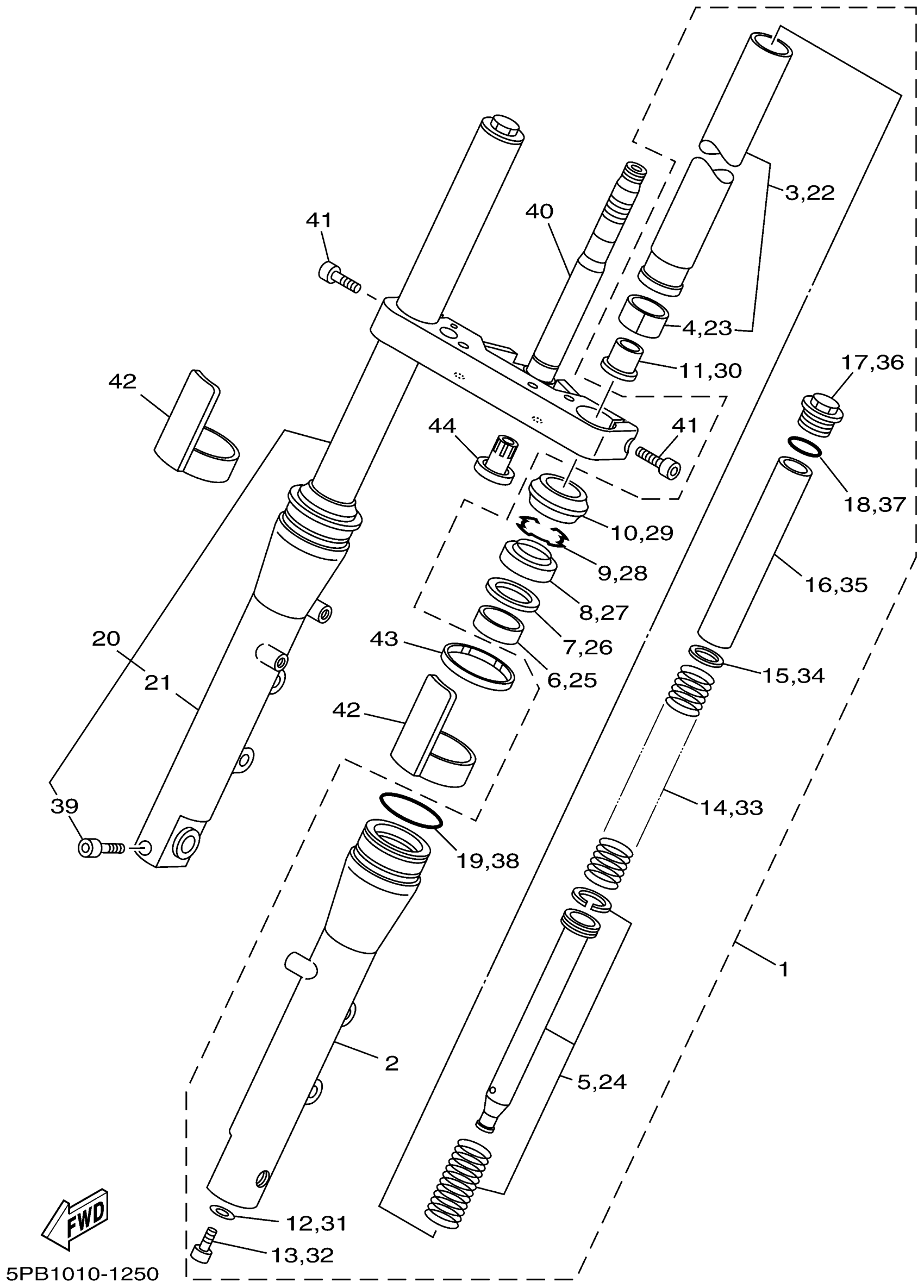

Yamaha XVS1100NC (V-STAR 1100 CUSTOM CA) 5PB5 2001 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
5PB-23102-03-00
Unavailable
2
. TUBE, OUTER (LEFT)
5PB-23126-00-00
Unavailable
3
INNER TUBE COMP.1
5EL-23110-00-00
Unavailable
5
. CYLINDER COMP, FRONT FORK
5EL-23170-00-00
Unavailable
11
SPINDLE, TAPER
4YR-23173-00-00
Unavailable
14
. SPRING, FRONT FORK
5EL-23141-00-00
Unavailable
16
SPACER
5EL-23118-00-00
Unavailable
17
BOLT, CAP
1D0-23111-00-00
Unavailable
18
O-RING
43F-23188-10-00
Unavailable
19
O-RING
5EL-23147-00-00
Unavailable
20
FRONT FORK ASSY (R.H)
5PB-23103-03-00
Unavailable
21
TUBE, OUTER (RIGHT)
5PB-23136-00-00
Unavailable
22
INNER TUBE COMP.1
5EL-23110-00-00
Unavailable
24
. CYLINDER COMP, FRONT FORK
5EL-23170-00-00
Unavailable
30
SPINDLE, TAPER
4YR-23173-00-00
Unavailable
33
. SPRING, FRONT FORK
5EL-23141-00-00
Unavailable
35
SPACER
5EL-23118-00-00
Unavailable
36
BOLT, CAP
1D0-23111-00-00
Unavailable
37
O-RING
43F-23188-10-00
Unavailable
38
O-RING
5EL-23147-00-00
Unavailable
39
BOLT,SOCKET
91314-08040-00
Unavailable
40
UNDER BRACKET COMP.
5PB-23340-01-00
Unavailable
41
BOLT,SOCKET
91314-10030-00
Unavailable
42
COVER
5EL-2331G-00-00
Unavailable
43
STOPPER
5EL-23376-00-00
Unavailable
44
COVER, LOWER 1
5PB-23123-00-00
Unavailable
45
FORK SEAL KIT (TWO FORKS)
4EB-W003B-00-00
Unavailable
