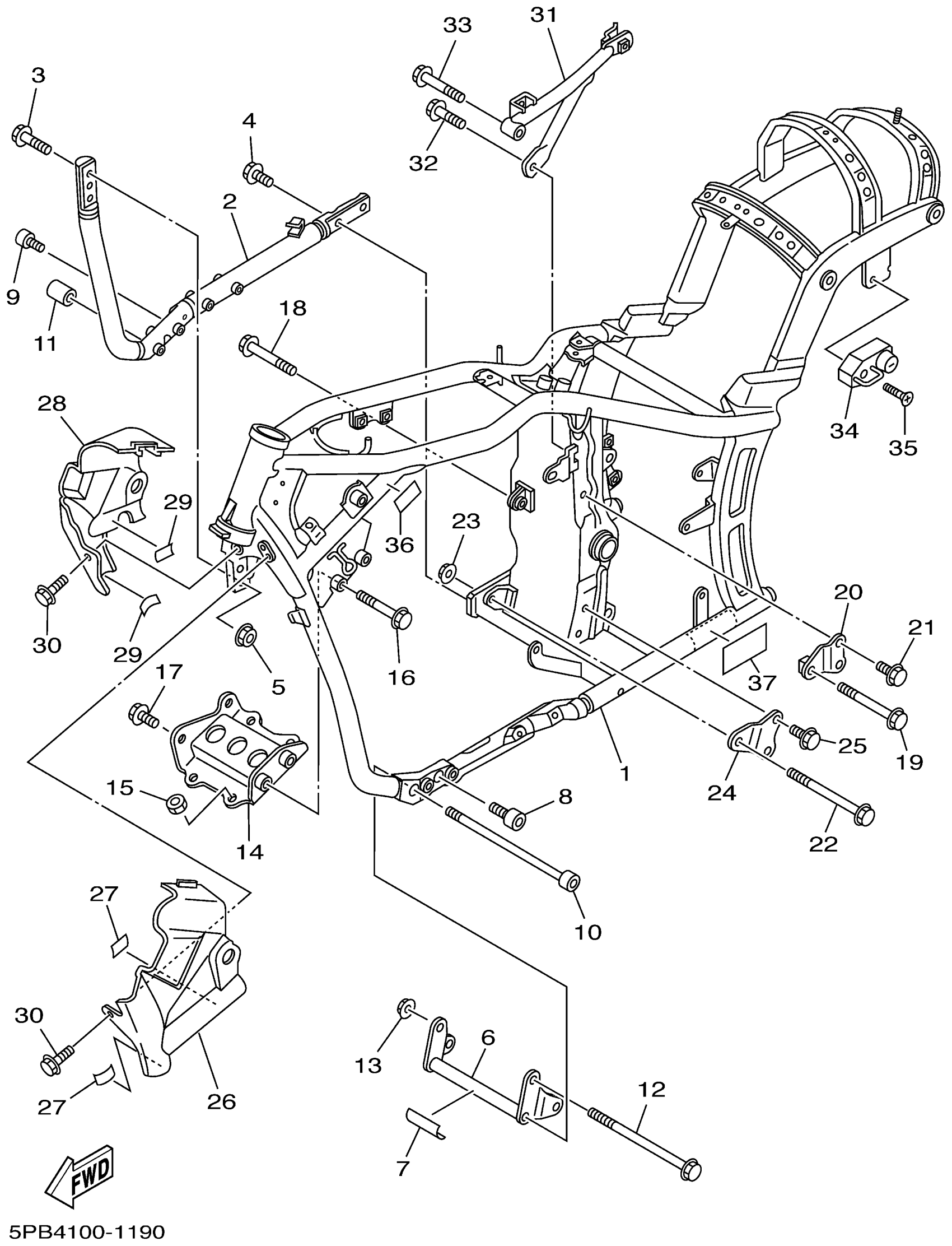

Yamaha XVS1100NC (V-STAR 1100 CUSTOM CA) 5PB5 2001 FRAME Diagram
#
1
FRAME COMP.
5EL-21110-03-00
Unavailable
2
DOWN TUBE COMP.2
5EL-21150-01-00
Unavailable
3
BOLT, WASHER BASED
90105-10009-00
Unavailable
6
STAY, ENGINE 5
5EL-21318-00-00
Unavailable
7
SEAL
4DN-21268-00-00
Unavailable
10
BOLT, HEXAGON SOCKET HEAD(3LN)
90110-10182-00
Unavailable
12
BOLT, WASHER BASED(4KM)
90105-10781-00
Unavailable
16
BOLT, FLANGE
90105-100A4-00
Unavailable
17
BOLT, WASHER BASED
90105-10003-00
Unavailable
18
BOLT, WASHER BASED
90105-10013-00
Unavailable
19
BOLT, WASHER BASED (2H7)
90105-10105-00
Unavailable
20
STAY, ENGINE 5
5EL-21314-00-00
Unavailable
21
BOLT, FLANGE(3HP)
95817-10016-00
Unavailable
22
BOLT, WASHER BASED (2T4)
90105-10117-00
Unavailable
24
STAY, ENGINE 3
5EL-21316-00-00
Unavailable
25
BOLT, FLANGE(3HP)
95817-10016-00
Unavailable
26
COVER, SIDE 5
5EL-2171E-00-00
Unavailable
27
DAMPER 1
3TB-28217-00-00
Unavailable
28
COVER, SIDE 6
5EL-2171X-00-00
Unavailable
29
DAMPER 1
3TB-28217-00-00
Unavailable
30
BOLT, WITH WASHER
90119-06236-00
Unavailable
31
STAY, MUFFLER
5EL-21460-00-00
Unavailable
32
BOLT, FLANGE
95817-08014-00
Unavailable
33
BOLT, FLANGE
95817-08035-00
Unavailable
34
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
35
SCREW (3H1)
90149-06150-00
Unavailable
36
SEAL 1
3SP-21732-00-00
Unavailable
37
PLATE, EPA 2(CALIFORNIA)
5EL-2179R-20-00
Unavailable
37
PLATE, EPA 1(NON CALIFORNIA)
5EL-2179V-20-00
Unavailable
