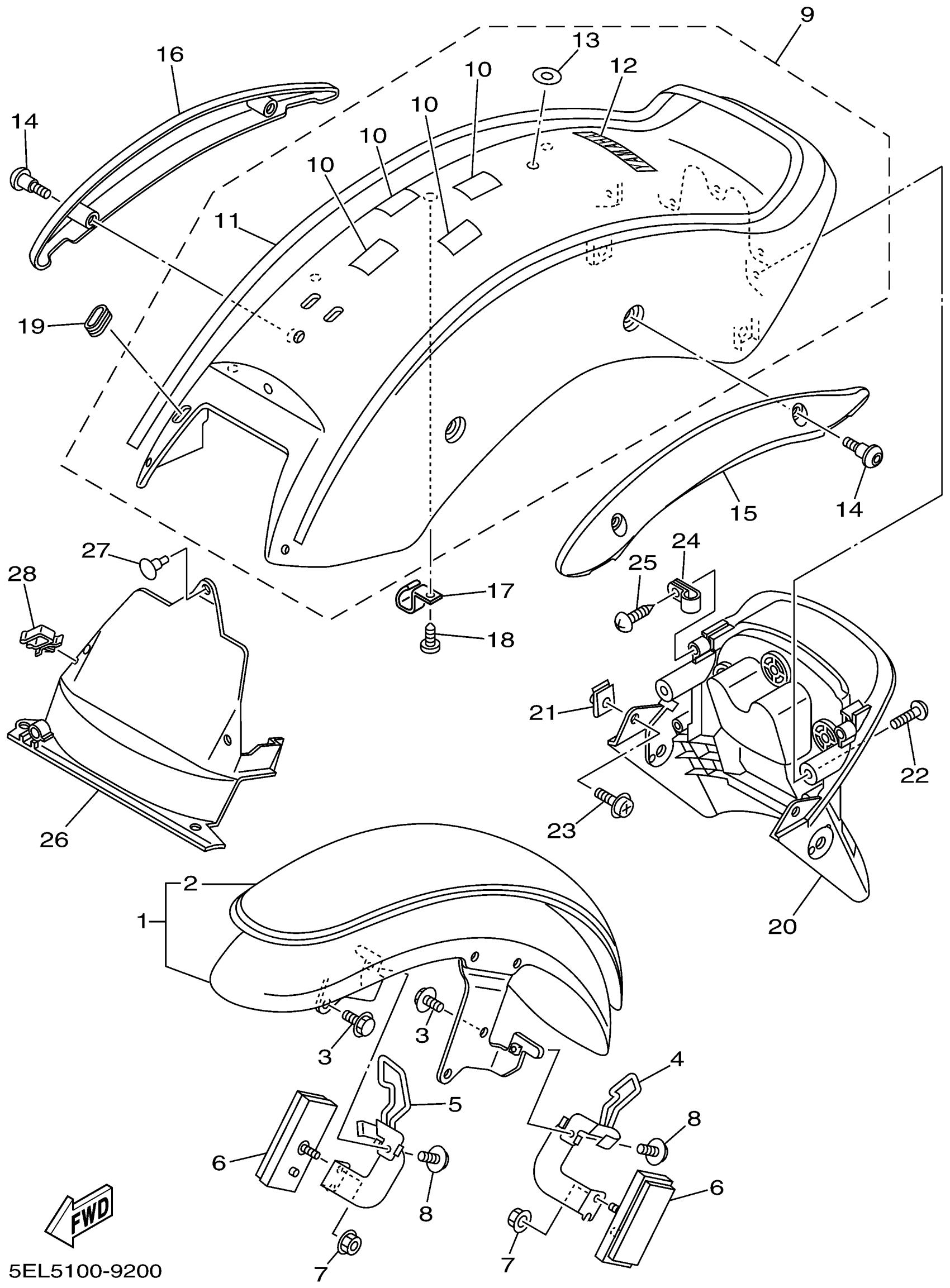

Yamaha XVS1100NC (V-STAR 1100 CUSTOM CA) 5PB5 2001 FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP.
5EL-21510-01-33
Unavailable
1
FRONT FENDER COMP. (MARSHAL GOLD) (DARK GRAYISH PURPLE METALLIC 1)
5EL-Y2151-41-KE
Unavailable
2
. GRAPHIC 1 (DARK GRAYISH PURPLE METALLIC 1)
5PB-21569-00-00
Unavailable
4
HOLDER,WIRE 1
5EL-21597-10-00
Unavailable
5
HOLDER, WIRE 2
5EL-21598-10-00
Unavailable
8
BOLT, FLANGE
95817-06014-00
Unavailable
9
REAR FENDER COMP. (YAMAHA BLACK)
5EL-W2161-C0-33
Unavailable
9
REAR FENDER COMP. (MARSHAL GOLD) (DARK GRAYISH PURPLE METALLIC 1)
5EL-W2161-J0-7X
Unavailable
11
. GRAPHIC, REAR FENDER (DARK GRAYISH PURPLE METALLIC 1)
5PB-21675-00-00
Unavailable
14
BOLT
90111-08001-00
Unavailable
15
STAY 1
5EL-2164F-00-00
Unavailable
16
STAY 2
5EL-2164G-00-00
Unavailable
17
CLAMP
90461-06001-00
Unavailable
18
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
19
GROMMET
90480-01001-00
Unavailable
20
FENDER 2
5EL-2162R-00-00
Unavailable
21
NUT, SPRING
90183-051A0-00
Unavailable
22
SCREW, C.R. BINDING (2T4)
90154-05004-00
Unavailable
23
SCREW, WITH WASHER
90159-05056-00
Unavailable
24
CLAMP(N07)
90461-10135-00
Unavailable
25
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
26
GUARD, MUD
5EL-21629-00-00
Unavailable
27
RIVET(4PH)
90269-07077-00
Unavailable
28
CLAMP (1J7)
90464-16021-00
Unavailable
