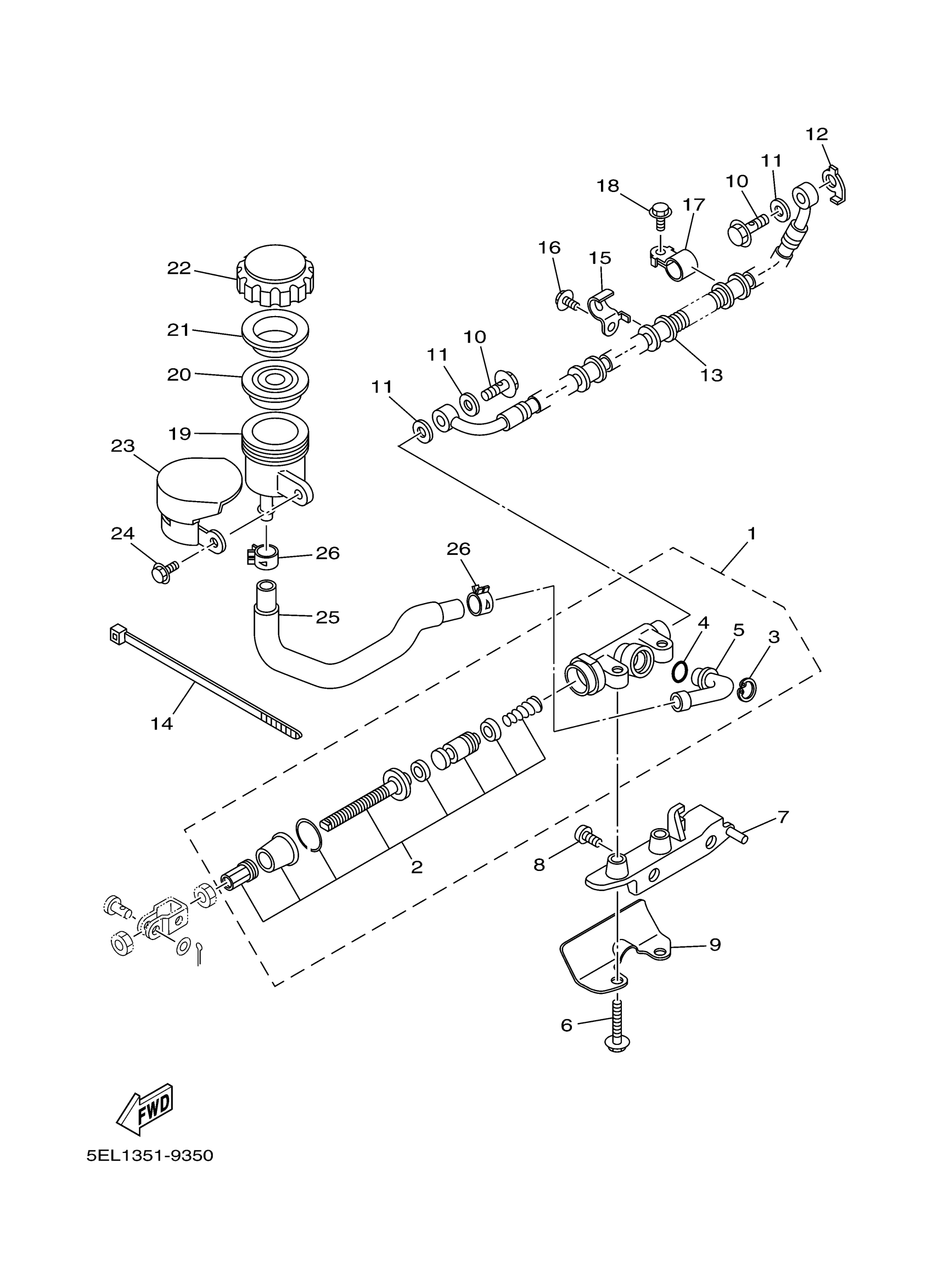

Yamaha XVS1100MC (V-STAR 1100 CUSTOM CA) 5ELB 2000 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

5EL-2583V-00-00

$185.98

2

CYLINDER KIT, MASTER

5EL-W0042-50-00

$67.42

3

CIRCLIP

2VN-25866-00-00

$5.55

4

O-RING (22U)

93210-15566-00

$5.39

5

CONNECTER

3LD-2582A-00-00

$27.35

6

BOLT, FLANGE(4MY)

95027-08035-00

$5.75

7

BRACKET, MASTER CYLINDER

5EL-25867-01-00

$45.30

8

BOLT, BUTTON

92014-08016-00

$6.22

9

PROTECTOR

5EL-27491-00-00

$15.41

10

BOLT, UNION(3GM)

90401-10159-00

$8.26

11

WASHER, PLATE(481)

90201-10118-00

Unavailable

12

WASHER, LOCK

5EL-25844-00-00

Unavailable

13

HOSE, BRAKE 4

5EL-2581J-02-00

Unavailable

14

BAND

1UA-82591-00-00

$3.85

15

HOLDER, BRAKE HOSE 2

3XV-25876-00-00

Unavailable

16

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

17

CLAMP 1

90461-08031-00

Unavailable

18

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

19

TANK, RESERVOIR

31A-25894-01-00

Unavailable

20

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

21

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

22

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

23

COVER, RESERVOIR TANK

5EL-25888-00-00

Unavailable

24

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

25

HOSE, RESERVOIR

5EL-25895-00-00

Unavailable

26

CLIP (5K4)

90467-14057-00

Unavailable
