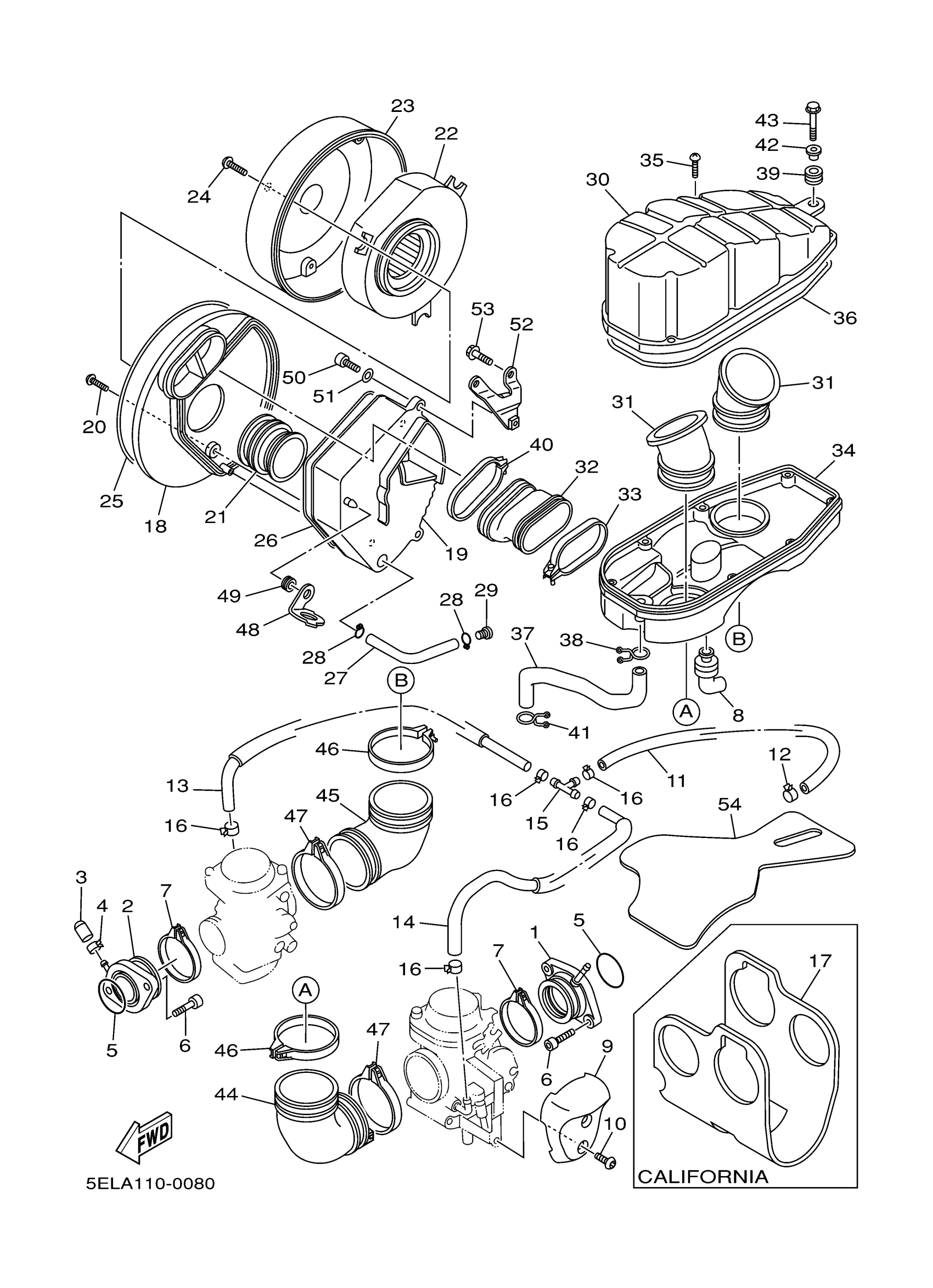

Yamaha XVS1100MC (V-STAR 1100 CUSTOM CA) 5ELB 2000 INTAKE Diagram
#
6
BOLT,SOCKET
91317-06020-00
Unavailable
8
HOSE
5EL-14987-00-00
Unavailable
11
HOSE
5EL-14294-00-00
Unavailable
16
CLIP(3BM)
90467-10135-00
Unavailable
17
PLATE
5EL-14477-00-00
Unavailable
18
CASE, AIR CLEANER 1
5EL-14411-00-00
Unavailable
19
COVER 1
5EL-14417-02-00
Unavailable
20
SCREW, PAN TAP.2
97707-50516-00
Unavailable
21
DUCT
5EL-14437-00-00
Unavailable
22
ELEMENT, AIR CLEANER
5EL-14451-00-00
Unavailable
23
CASE, AIR CLEANER 2
5EL-14421-10-00
Unavailable
25
SEAL
51Y-14462-00-00
Unavailable
26
SEAL
51Y-14462-00-00
Unavailable
27
PIPE
5EL-14148-00-00
Unavailable
28
CLIP(1JH)
90467-11106-00
Unavailable
29
PLUG (1HX)
90338-08174-00
Unavailable
30
SILENCER, INTAKE 1
5EL-14431-00-00
Unavailable
31
JOINT
5EL-14454-00-00
Unavailable
32
JOINT, AIR FILTER 1
5EL-1440F-00-00
Unavailable
33
BAND
5EL-14455-00-00
Unavailable
34
SILENCER, INNER
5EL-14432-00-00
Unavailable
35
SCREW, PAN TAP.2
97707-50525-00
Unavailable
36
SEAL
51Y-14462-00-00
Unavailable
37
PIPE, BREATHER 1
5EL-11166-00-00
Unavailable
38
CLIP (371)
90467-14015-00
Unavailable
39
GROMMET(3AA)
90480-12497-00
Unavailable
40
BAND
5EL-14455-00-00
Unavailable
41
CLIP (371)
90467-14015-00
Unavailable
42
COLLAR
90387-06159-00
Unavailable
43
BOLT, FLANGE
95817-06020-00
Unavailable
44
JOINT, AIR CLEANER 1
5EL-14453-00-00
Unavailable
45
JOINT, AIR CLEANER 2
5EL-14463-00-00
Unavailable
46
HOSE CLAMP ASSY
90450-72003-00
Unavailable
47
HOSE CLAMP ASSY
90450-63002-00
Unavailable
48
STAY 2
5EL-14499-00-00
Unavailable
49
GROMMET
90480-13014-00
Unavailable
50
BOLT,SOCKET
91317-06020-00
Unavailable
51
WASHER(6TA)
92907-06600-00
Unavailable
52
STAY 2
5EL-14414-00-00
Unavailable
53
BOLT, FLANGE
95817-06010-00
Unavailable
54
PROTECTOR, HEAT
5EL-12682-00-00
Unavailable
