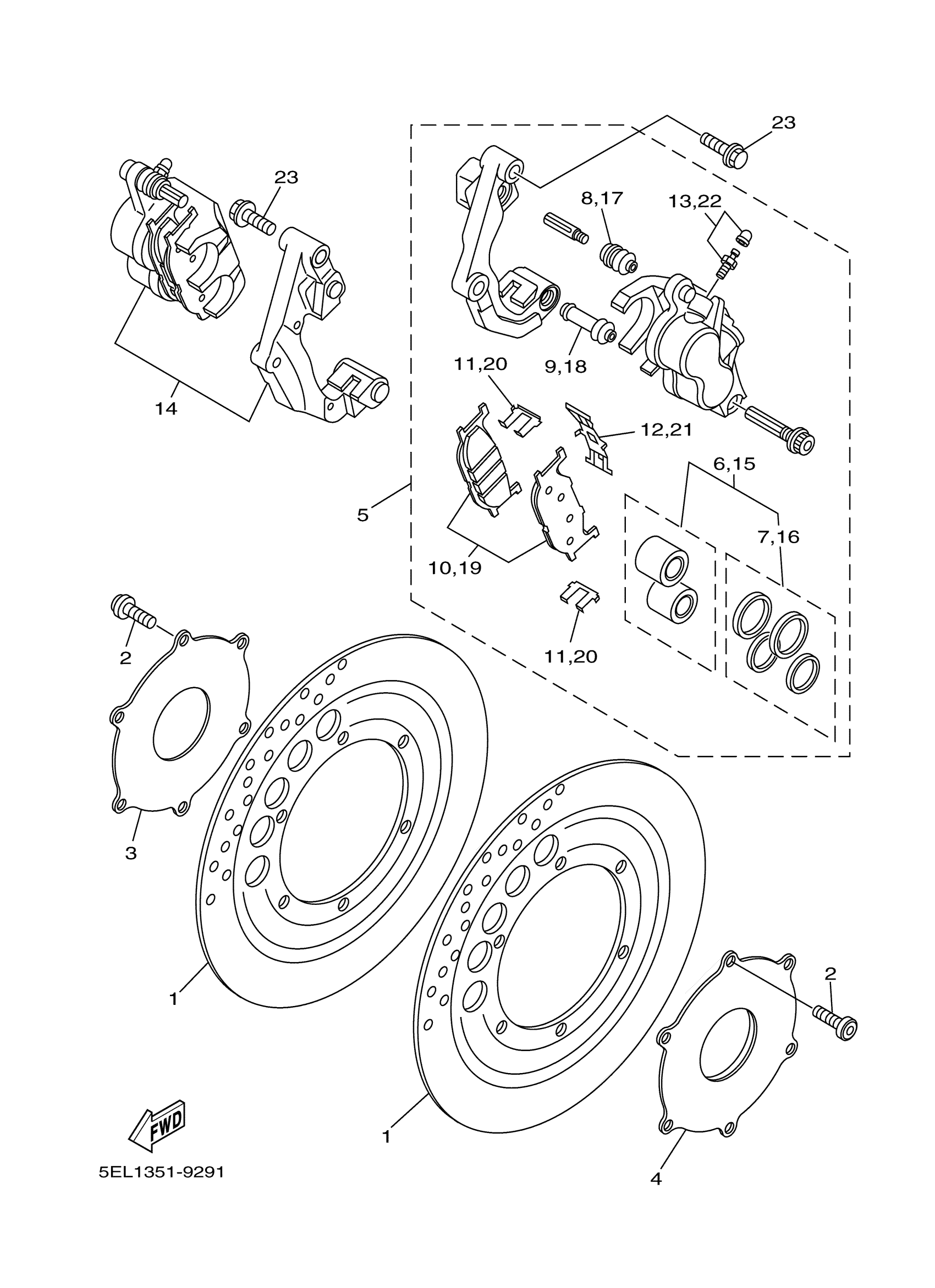

Yamaha XVS1100MC (V-STAR 1100 CUSTOM CA) 5ELB 2000 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (RIGHT)

3JB-2582U-01-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

3

RING, WHEEL 1 (RIGHT)

5EL-2514A-00-00

Unavailable

4

RING, WHEEL 2 (LEFT)

5EL-2515A-00-00

Unavailable

5

CALIPER ASSY (LEFT)

5KS-2580T-01-00

Unavailable

6

PISTON ASSY, CALIPER

4HC-W0057-50-00

Unavailable

7

CALIPER SEAL KIT

4HC-25803-50-00

$61.99

8

BOOT 2

5R2-25937-00-00

$37.99

9

BOOT 2

3YX-25937-00-00

Unavailable

10

BRAKE PAD KIT

5VU-25805-00-00

$44.99

11

SUPPORT, PAD

4BP-25919-00-00

$44.99

12

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

13

BLEED SCREW KIT

15B-W0048-00-00

$19.99

14

CALIPER ASSY (RIGHT)

5KS-2580U-01-00

Unavailable

15

PISTON ASSY, CALIPER

4HC-W0057-50-00

Unavailable

16

CALIPER SEAL KIT

4HC-25803-50-00

$61.99

17

BOOT 2

5R2-25937-00-00

$37.99

18

BOOT 2

3YX-25937-00-00

Unavailable

19

BRAKE PAD KIT

5VU-25805-00-00

$44.99

20

SUPPORT, PAD

4BP-25919-00-00

$44.99

21

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

22

BLEED SCREW KIT

15B-W0048-00-00

$19.99

23

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
