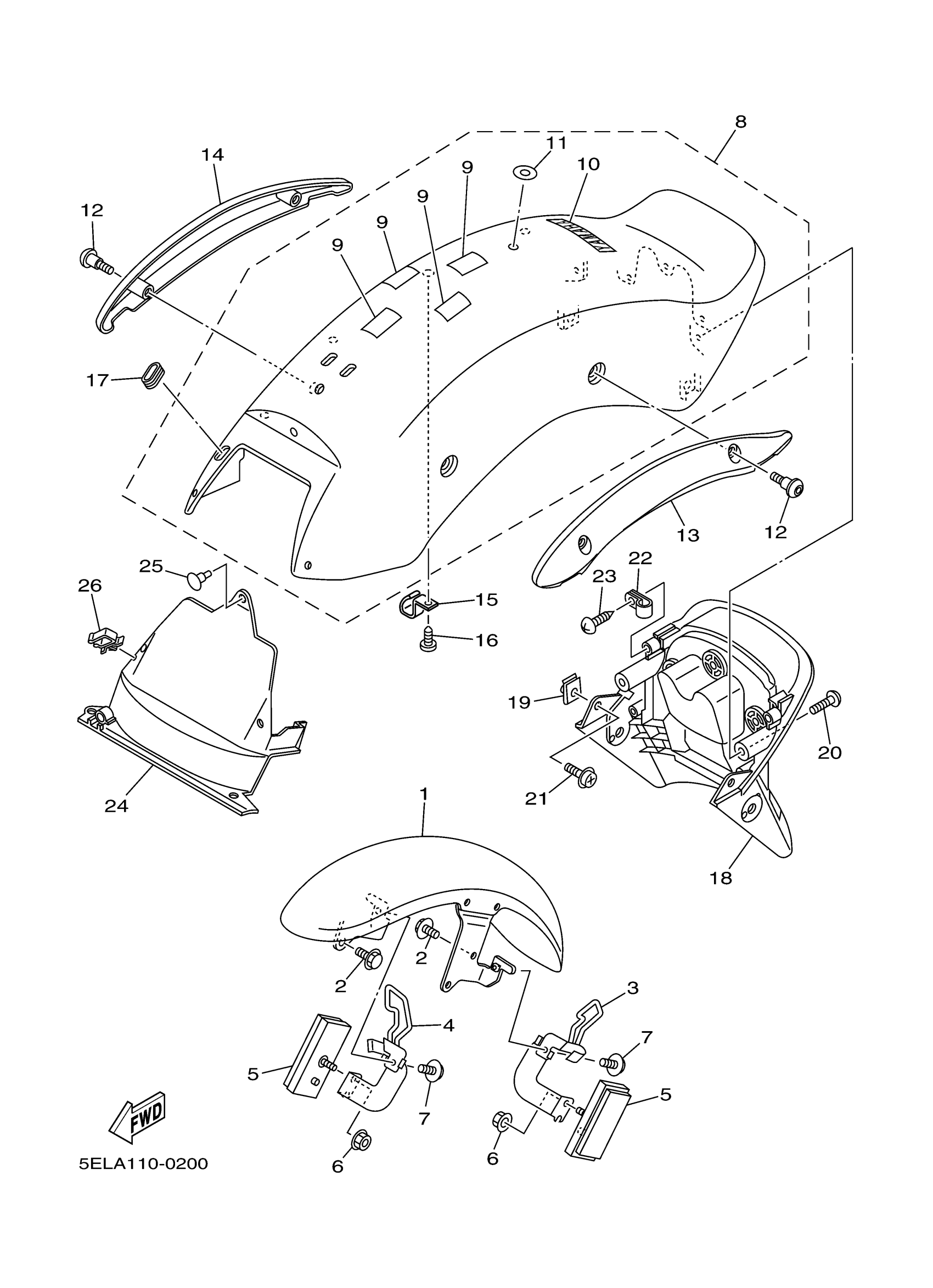

Yamaha XVS1100MC (V-STAR 1100 CUSTOM CA) 5ELB 2000 FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP.
5EL-21510-01-33
Unavailable
1
FRONT FENDER COMP.
5EL-21510-01-P3
Unavailable
3
HOLDER,WIRE 1
5EL-21597-10-00
Unavailable
4
HOLDER, WIRE 2
5EL-21598-10-00
Unavailable
7
BOLT, FLANGE
95817-06014-00
Unavailable
8
REAR FENDER COMP. (YAMAHA BLACK)
5EL-W2161-C0-33
Unavailable
8
REAR FENDER COMP. (DARK GRAYISH PURPLE METALLIC 1)
5EL-W2161-C0-P0
Unavailable
13
STAY 1
5EL-2164F-00-00
Unavailable
14
STAY 2
5EL-2164G-00-00
Unavailable
15
CLAMP
90461-06001-00
Unavailable
16
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
17
GROMMET
90480-01001-00
Unavailable
18
FENDER 2
5EL-2162R-00-00
Unavailable
19
NUT, SPRING
90183-051A0-00
Unavailable
20
SCREW, C.R. BINDING (2T4)
90154-05004-00
Unavailable
21
SCREW, WITH WASHER
90159-05056-00
Unavailable
22
CLAMP(N07)
90461-10135-00
Unavailable
23
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
24
GUARD, MUD
5EL-21629-00-00
Unavailable
25
RIVET(4PH)
90269-07077-00
Unavailable
26
CLAMP (1J7)
90464-16021-00
Unavailable
