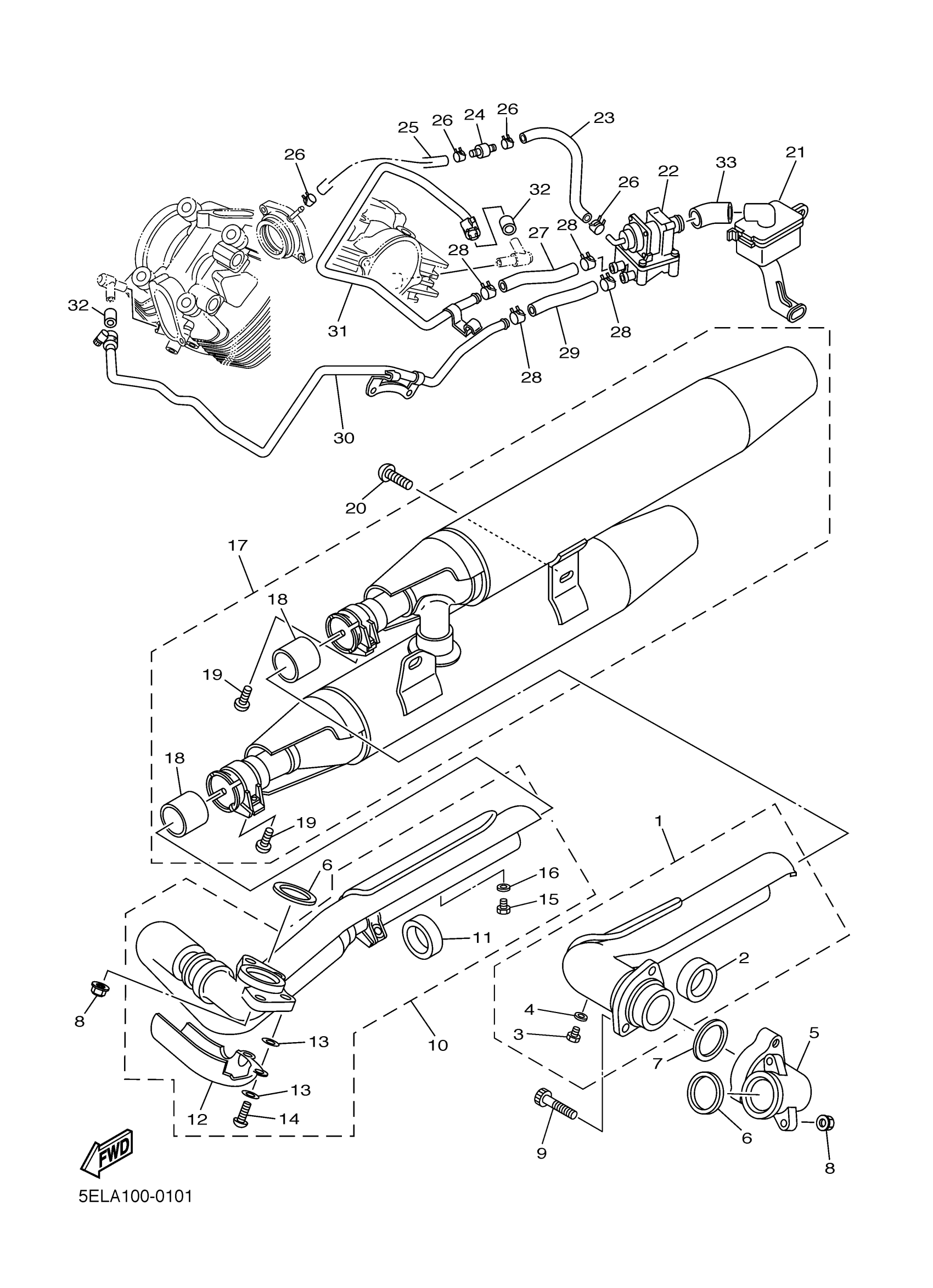

Yamaha XVS1100MC (V-STAR 1100 CUSTOM CA) 5ELB 2000 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

5EL-14610-10-00

Unavailable

2

GASKET, MUFFLER

4NK-14714-00-00

$27.99

3

BOLT (11T)

90101-06576-00

$8.49

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

JOINT, EXHAUST 1

5EL-14615-01-00

Unavailable

6

GASKET, EXHAUST PIPE

3EG-14613-00-00

$23.99

7

GASKET, EXHAUST PIPE

4TR-14613-00-00

$13.49

8

NUT, SELF-LOCKING(3BN)

90185-08146-00

$9.49

9

BOLT, SOCKET

91314-08035-00

$2.22

10

EXHAUST PIPE ASSY 2

5EL-14620-00-00

Unavailable

11

GASKET, MUFFLER

4NK-14714-00-00

$27.99

12

COVER, EXHAUST

5EL-14624-00-00

Unavailable

13

WASHER, PLATE(3AJ)

90202-05191-00

$9.49

14

SCREW, BIND(J39)

98980-06014-00

$9.49

15

BOLT (11T)

90101-06576-00

$8.49

16

WASHER, PLAIN (646)

92990-06600-00

$2.80

17

MUFFLER ASSY 1

5EL-14710-50-00

Unavailable

18

GASKET, SILENCER

3XW-14755-00-00

Unavailable

19

BOLT, BUTTON

92014-08020-00

Unavailable

20

BOLT, BUTTON HEAD

92017-10020-00

Unavailable

21

AIR FILTER

5EL-14806-00-00

Unavailable

22

AIR INDUCTION SYSTEM ASSY

5EL-14803-03-00

Unavailable

23

HOSE, VACUUM SENSING 2

5EL-13544-01-00

Unavailable

24

NOZZLE

41R-14489-00-00

Unavailable

25

HOSE,VAC.SENSING 5

4BH-13534-00-00

Unavailable

26

CLIP(41W)

90467-08092-00

Unavailable

27

HOSE, BEND 2

5EL-14882-00-00

Unavailable

28

CLIP

90468-08104-00

Unavailable

29

HOSE, BEND 4

5EL-14884-00-00

Unavailable

30

PIPE 2

5EL-14872-00-00

Unavailable

31

PIPE 1

5EL-14871-00-00

Unavailable

32

GASKET, MUFFLER

42H-14714-10-00

Unavailable

33

HOSE, BEND 1

5EL-14881-00-00

Unavailable
