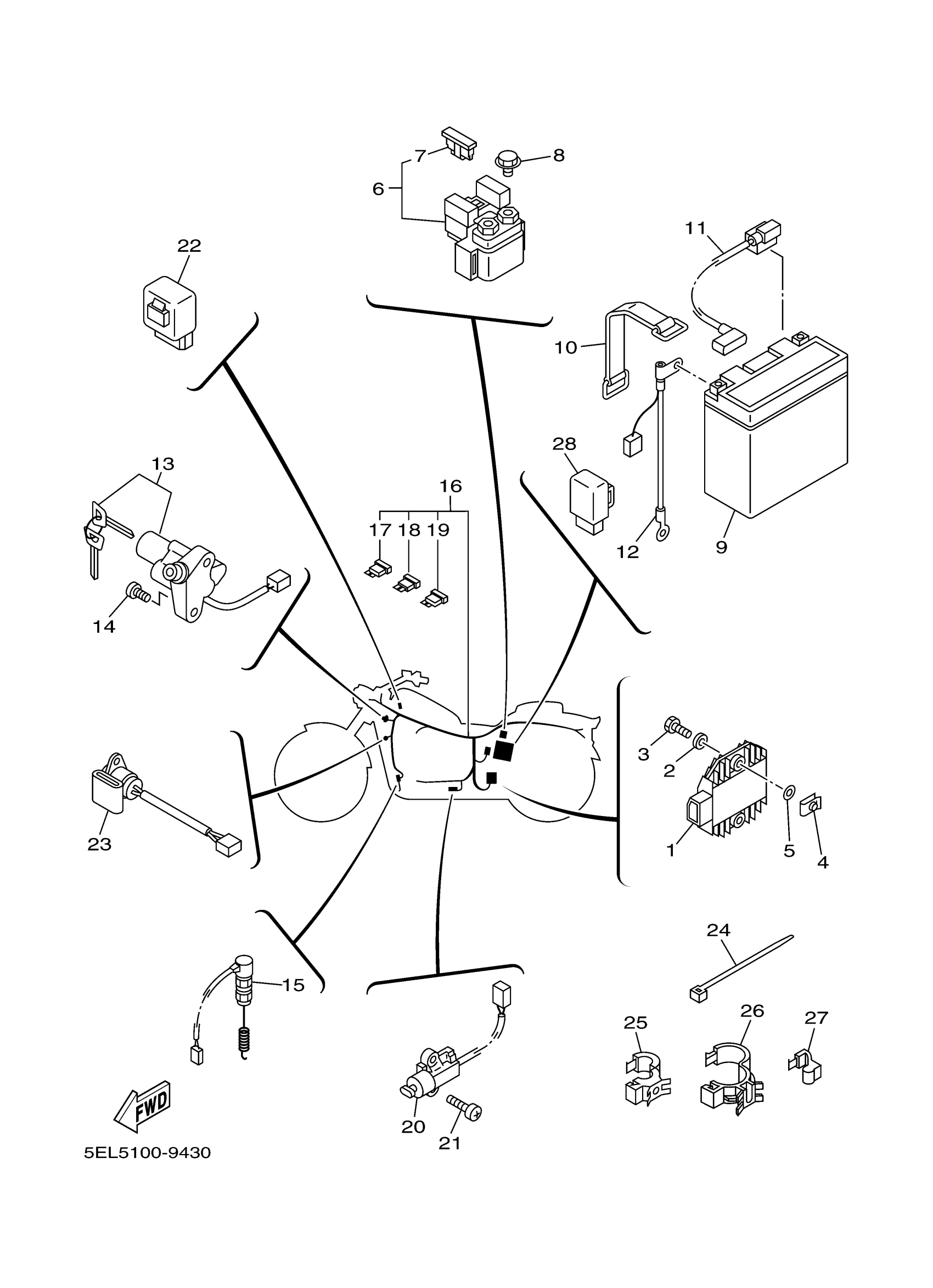

Yamaha XVS1100MC (V-STAR 1100 CUSTOM CA) 5ELB 2000 ELECTRICAL 2 Diagram

RECTIFIER & REGULATOR ASSY

5BN-81960-00-00

$204.99

WASHER, PLATE (8H9)

90201-06727-00

$8.49

BOLT, HEXAGON

97017-06025-00

$4.24

NUT, SPRING(4ES)

90183-06069-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

$1.38

STARTER RELAY ASSY (RC19-003)

4DN-81940-12-00

$149.99

FUSE (12V 30A)

1AE-82151-00-00

$7.99

BOLT, SMALL FLANGE

95027-06008-00

$7.99

GT14B4 GS BATTERY - FA

GT1-4B400-00-00

Unavailable

BAND, BATTERY

118-82131-00-00

$22.99

WIRE, PLUS LEAD

5EL-82115-00-00

Unavailable

WIRE, MINUS LEAD

5EL-82116-00-00

Unavailable

MAIN SWITCH STEERING LOCK

4TR-82501-02-00

$309.99

BOLT, BUTTON

92017-08020-00

$7.49

STOP SWITCH ASSY

5EL-82530-01-00

Unavailable

WIRE HARNESS ASSEMBLY

5EL-82590-21-00

Unavailable

WIRE HARNESS ASSEMBLY

5EL-82590-31-00

Unavailable

FUSE

1NL-82151-00-00

Unavailable

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

FUSE (10A)

42X-82151-00-00

Unavailable

SWITCH, SIDE STAND

3LD-82566-41-00

Unavailable

SCREW, PAN HEAD

98507-05014-00

Unavailable

RELAY ASSY

3EN-81950-02-00

Unavailable

THERMO SWITCH ASSY

4TR-82560-00-00

Unavailable

BAND

1UA-82591-00-00

Unavailable

CLAMP(4GY)

90464-20191-00

Unavailable

CLAMP(4KM)

90464-25217-00

Unavailable

CLAMP(4GY)

90464-10190-00

Unavailable

RELAY ASSY

4XV-8195A-00-00

Unavailable
