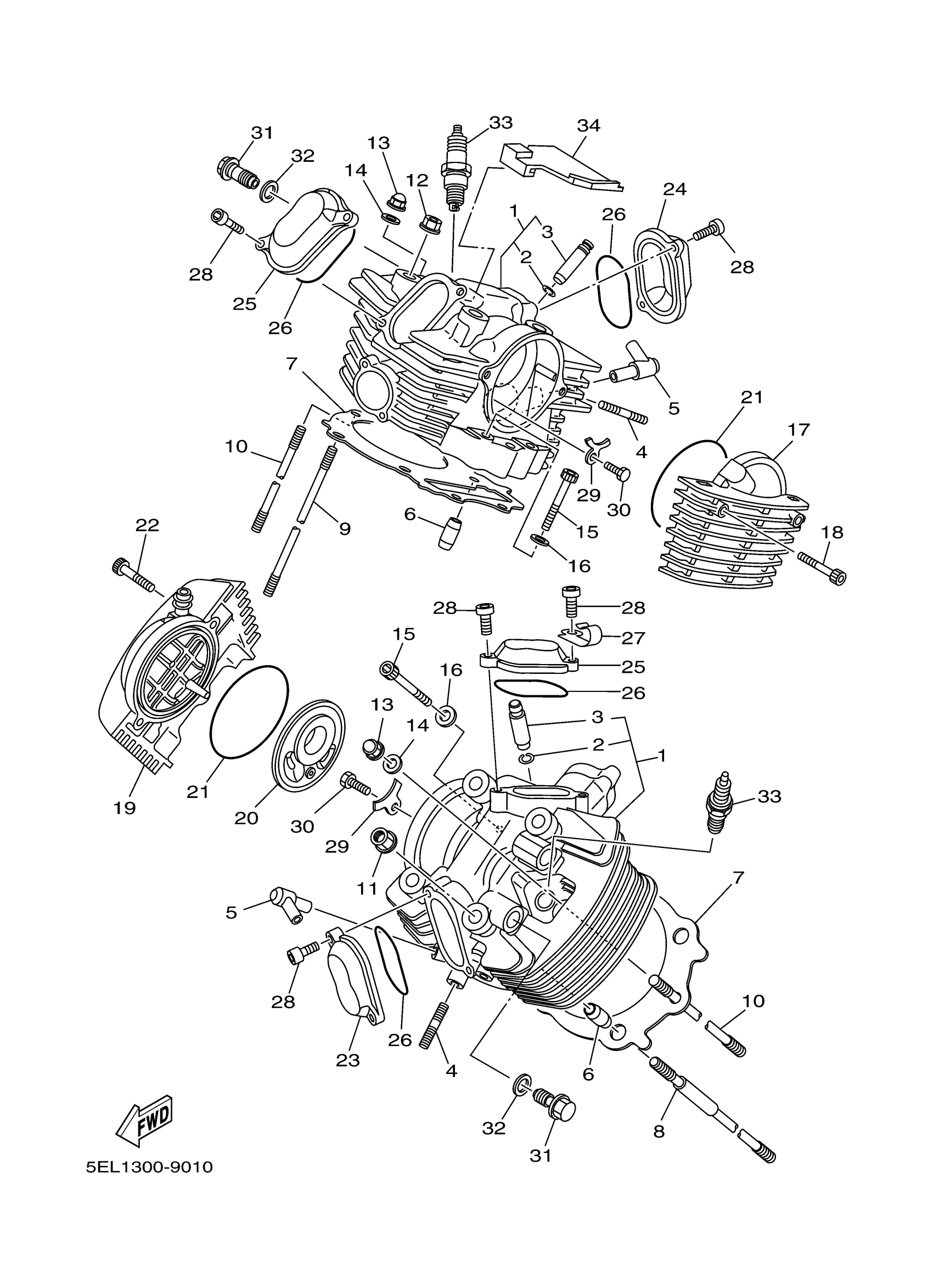

Yamaha XVS1100MC (V-STAR 1100 CUSTOM CA) 5ELB 2000 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5EL-11101-01-00

Unavailable

2

CIRCLIP (4X7)

93440-14086-00

$9.49

3

GUIDE, INTAKE VALVE (1ST O/S)

4X7-11133-10-00

$69.99

4

BOLT, STUD 3

95617-08625-00

$8.49

5

PIPE 5

5EL-14875-00-00

Unavailable

6

PIN, DOWEL(3EF)

91817-30011-00

$12.49

7

GASKET, CYLINDER HEAD 1

5EL-11181-00-00

$58.99

8

BOLT, CYLINDER HOLDING 3

4X7-11363-01-00

Unavailable

9

BOLT,STUD

90116-12350-00

Unavailable

10

BOLT, STUD (4X7)

90116-10344-00

$13.99

11

NUT (4X7)

90179-12326-00

$10.49

12

NUT (4X7)

90179-12325-00

$5.60

13

NUT, CROWN(2GG)

90176-10075-00

$8.49

14

WASHER, PLATE (26H)

90201-102G9-00

$9.49

15

BOLT, SOCKET

91314-08050-00

$7.49

16

WASHER(6TA)

92907-08600-00

Unavailable

17

COVER, CYLINDER HEAD SIDE 4

5EL-1111H-00-00

Unavailable

18

BOLT, SOCKET

91314-06035-00

Unavailable

19

COVER, CYLINDER HEAD SIDE 1

5EL-11185-00-00

Unavailable

20

PLATE, BREATHER

42X-11165-00-00

Unavailable

21

O-RING (4X7)

93210-92448-00

Unavailable

22

BOLT, SOCKET

91314-06035-00

Unavailable

23

COVER, CYLINDER HEAD SIDE 2

42H-11186-02-00

Unavailable

24

COVER, CYLINDER HEAD SIDE 3

5EL-11187-01-00

Unavailable

25

COVER, CYLINDER HEAD SIDE 3

4X7-11187-02-00

Unavailable

26

O-RING (4X7)

93210-62446-00

Unavailable

27

CLAMP

90465-10264-00

Unavailable

28

BOLT, SOCKET

91314-06016-00

Unavailable

29

PLATE

4X7-1111F-00-00

Unavailable

30

BOLT, HEXAGON

97017-08020-00

Unavailable

31

BOLT, UNION

90401-16065-00

Unavailable

32

GASKET (4X7)

90430-17168-00

Unavailable

33

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable

34

COVER

5EL-1112M-00-00

Unavailable
