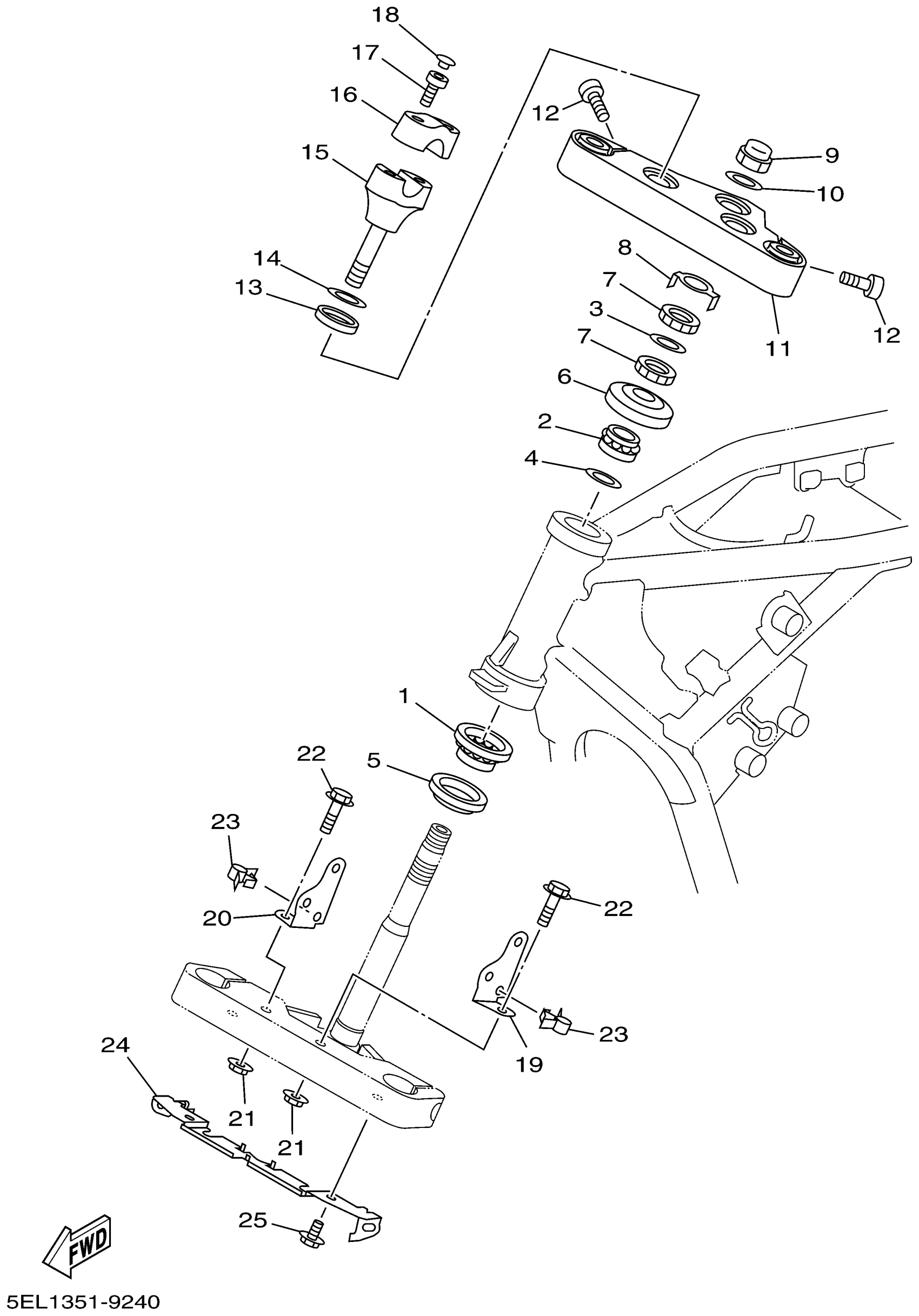

Yamaha XVS1100LC (V-STAR 1100 CA) 5EL6 1999 STEERING Diagram

#

Description
Price

1

BEARING(3FV)

93399-99932-00

$51.86

2

BEARING(3FV)

93399-99931-00

$47.36

3

WASHER, PLATE (26H)

90202-26142-00

$7.52

4

WASHER, PLATE(3FV)

90202-24190-00

$7.97

5

SEAL, STEERING

3FV-23462-00-00

$20.00

6

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

7

NUT

90179-25004-00

$19.41

8

WASHER, SPECIAL

26H-23418-01-00

$11.84

9

NUT, CROWN(4FM)

90176-22081-00

$27.98

10

WASHER, PLATE

90201-22018-00

$3.82

11

CROWN, HANDLE

4VR-W2341-10-00

$221.73

12

BOLT,SOCKET

91314-08030-00

$2.14

13

DAMPER

3DM-23445-00-00

$6.29

14

WASHER PLATE 248181370000

90201-14220-00

$5.75

15

HOLDER, HANDLE LOWER

4VR-23442-01-00

$103.95

16

HOLDER, HANDLE UPPER

4VR-23441-00-00

Unavailable

17

BOLT,SOCKET

91314-08025-00

Unavailable

18

PLUG(42X)

90338-08163-00

Unavailable

19

BRACKET, HEADLIGHT STAY 1

4TR-23175-01-00

Unavailable

20

BRACKET, HEADLIGHT STAY 2

4TR-23176-01-00

Unavailable

21

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

22

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable

23

CLAMP(3XV)

90464-15157-00

Unavailable

24

HOLDER, BRAKE HOSE

5EL-25886-00-00

Unavailable

25

BOLT, FLANGE(2UJ)

95024-06010-00

Unavailable
