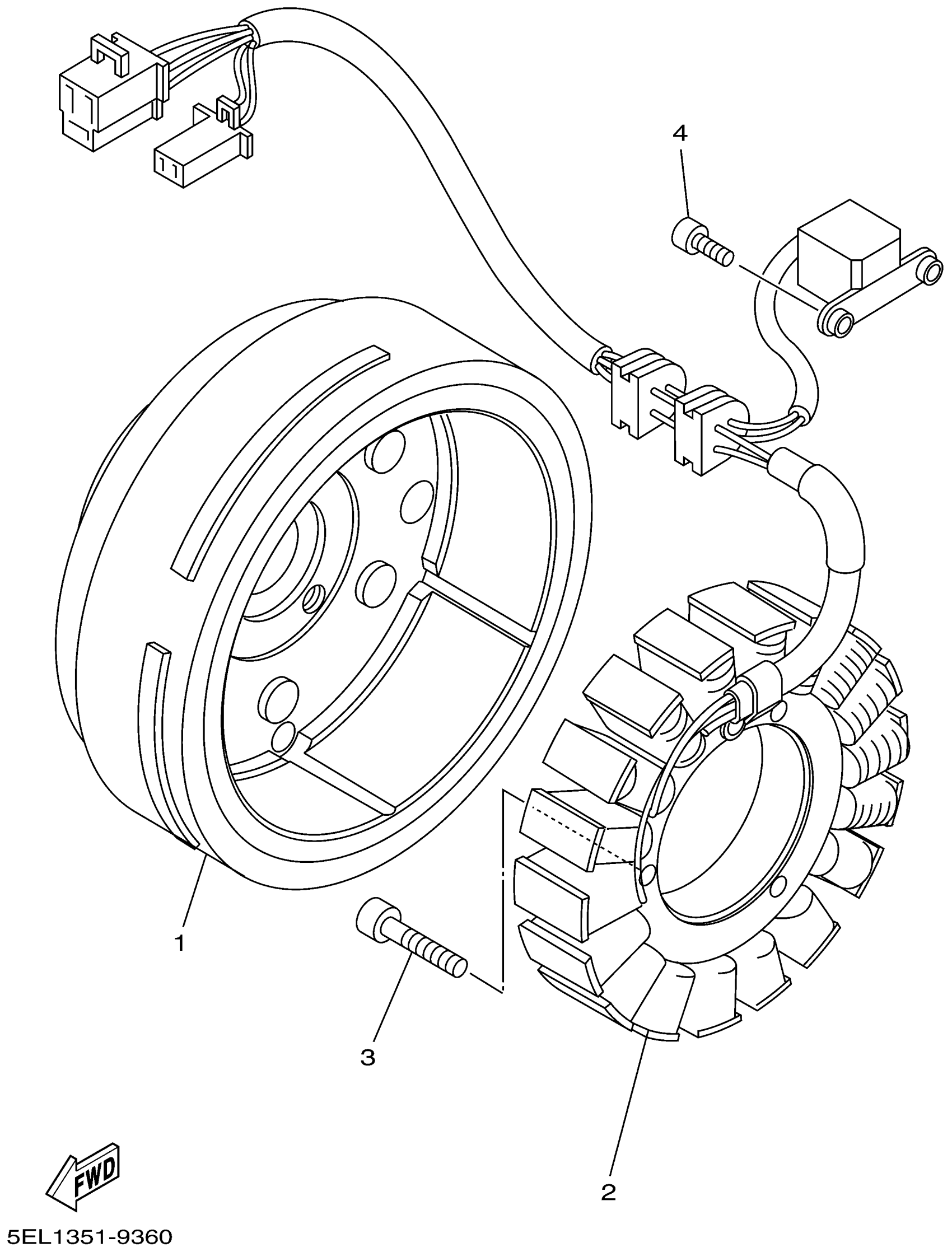

Yamaha XVS1100LC (V-STAR 1100 CA) 5EL6 1999 GENERATOR Diagram

#

Description

Price

1

ROTOR SUB-ASSY

5EL-W155B-30-00

Unavailable

2

STATOR ASSY

5EL-81410-01-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

4

BOLT, SOCKET

91317-05012-00

$1.62
