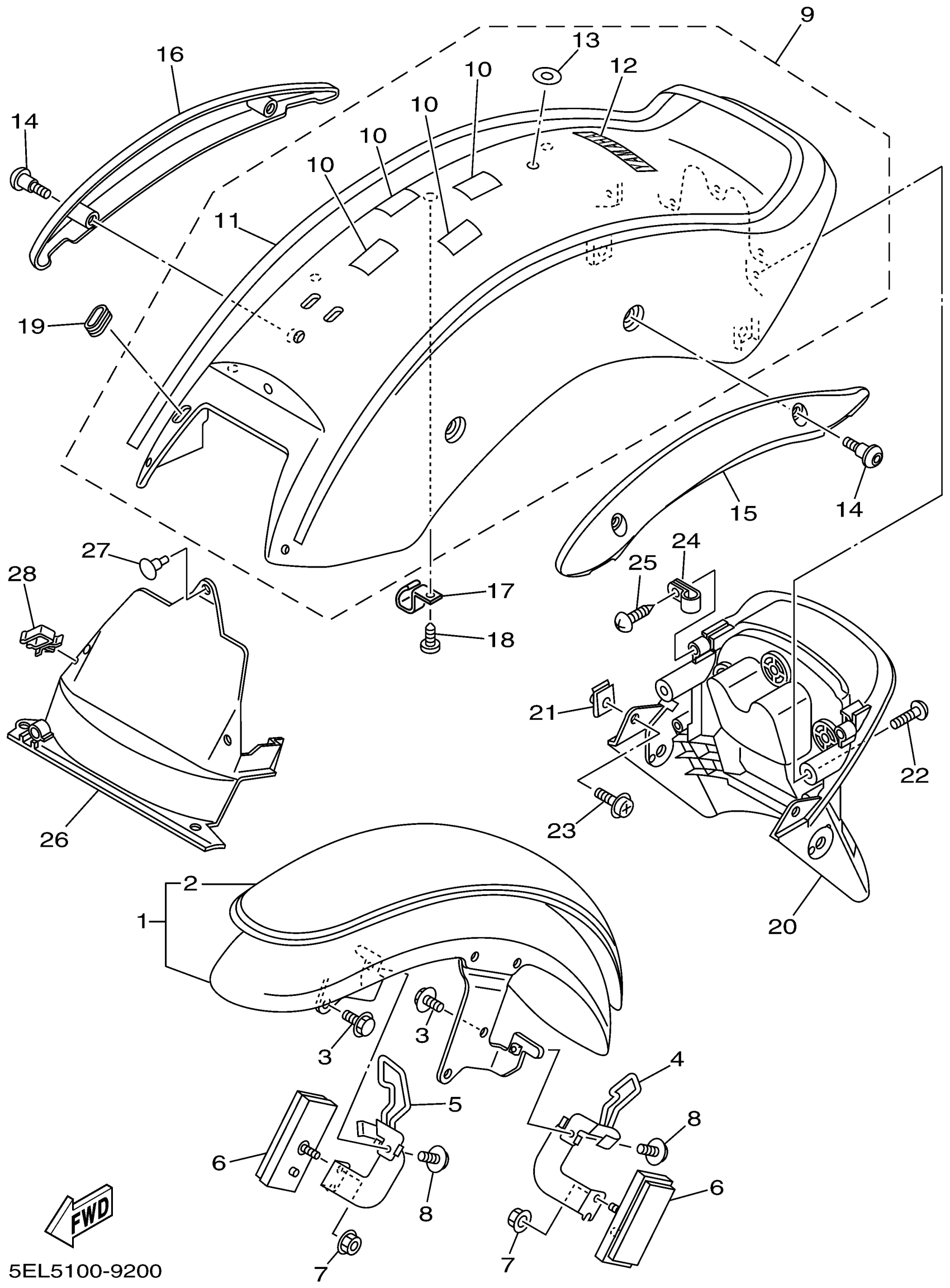

Yamaha XVS1100LC (V-STAR 1100 CA) 5EL6 1999 FENDER Diagram
#
1
FRONT FENDER COMP.
5EL-Y2151-51-P0
Unavailable
1
FRONT FENDER COMP.
5EL-W2151-31-P8
Unavailable
1
FRONT FENDER COMP.
5EL-Y2151-G1-E9
Unavailable
2
. GRAPHIC 1 (LIGHT GREENISH GRAY METALLIC 6)
5EL-21569-01-00
Unavailable
2
. GRAPHIC 1 (BLACK 2)
5EL-21569-31-00
Unavailable
2
. GRAPHIC 1 (CARMINE RED)
5EL-21569-41-00
Unavailable
4
HOLDER,WIRE 1
5EL-21597-10-00
Unavailable
5
HOLDER, WIRE 2
5EL-21598-10-00
Unavailable
8
BOLT, FLANGE
95817-06014-00
Unavailable
9
REAR FENDER C0MP. (LIGHT GREENISH GRAY METALLIC 6) (DEEP REDDISH YELLOW COCKTAIL 1)
5EL-W2161-00-0X
Unavailable
9
REAR FENDER C0MP. (BLACK 2)
5EL-W2161-30-4B
Unavailable
9
REAR FENDER C0MP. (BRIGHT CHERRY RED) (CARMINE RED)
5EL-W2161-40-2X
Unavailable
10
SEAL 1
3SP-21732-00-00
Unavailable
11
. GRAPHIC, REAR FENDER (LIGHT GREENISH GRAY METALLIC 6)
5EL-21675-00-00
Unavailable
11
. GRAPHIC, REAR FENDER (BLACK 2)
5EL-21675-30-00
Unavailable
11
. GRAPHIC, REAR FENDER (CARMINE RED)
5EL-21675-40-00
Unavailable
12
EMBLEM, YAMAHA
99247-00080-00
Unavailable
13
SEAL 2
5VN-21735-00-00
Unavailable
14
BOLT
90111-08001-00
Unavailable
15
STAY 1
5EL-2164F-00-00
Unavailable
16
STAY 2
5EL-2164G-00-00
Unavailable
17
CLAMP
90461-06001-00
Unavailable
18
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
19
GROMMET
90480-01001-00
Unavailable
20
FENDER 2
5EL-2162R-00-00
Unavailable
21
NUT, SPRING
90183-051A0-00
Unavailable
22
SCREW, C.R. BINDING (2T4)
90154-05004-00
Unavailable
23
SCREW, WITH WASHER
90159-05056-00
Unavailable
24
CLAMP(N07)
90461-10135-00
Unavailable
25
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
26
GUARD, MUD
5EL-21629-00-00
Unavailable
27
RIVET(4PH)
90269-07077-00
Unavailable
28
CLAMP (1J7)
90464-16021-00
Unavailable
