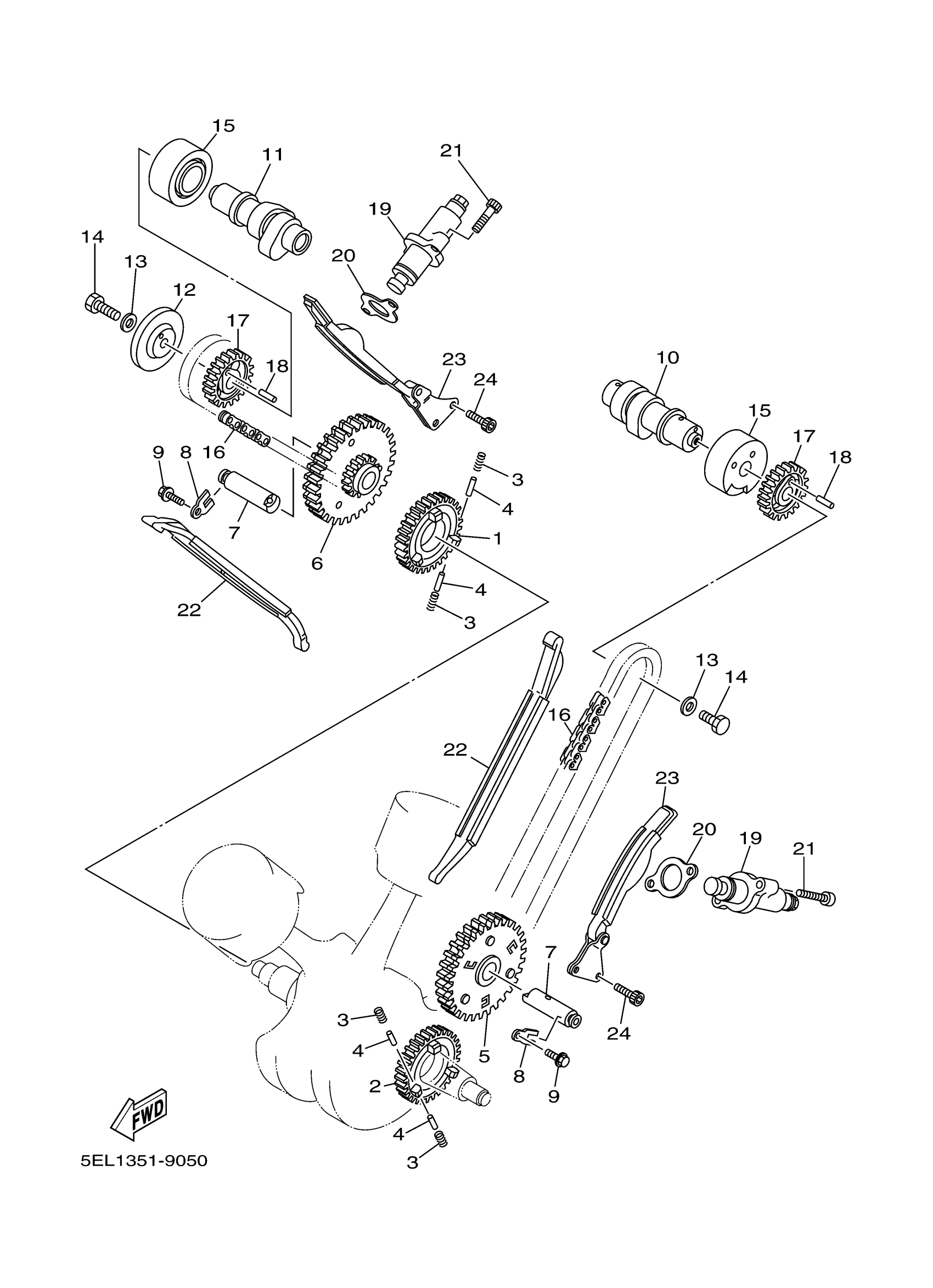

Yamaha XVS1100LC (V-STAR 1100 CA) 5EL6 1999 CAMSHAFT CHAIN Diagram

#

Description
Price

1

GEAR, DRIVE (35T)

4X7-11536-00-00

Unavailable

2

GEAR, BREAKER DRIVE

4X7-11534-00-00

Unavailable

3

SPRING COMPRESSION341114880000

90501-21133-00

$8.49

4

PIN, DOWEL

93605-10090-00

$8.49

5

CAM CHAIN SPROCKET ASSY 1

5EL-11540-01-00

$277.99

6

CAM CHAIN SPROCKET ASSY 2

5EL-11550-01-00

$294.99

7

SHAFT, TENSIONER

5EL-12247-00-00

$84.99

8

WASHER (4X7)

90209-06205-00

Unavailable

9

BOLT, WASHER BASED (4H7)

90105-06154-00

$4.72

10

CAMSHAFT 1

5EL-12171-00-00

$240.99

11

CAMSHAFT 2

5EL-12181-00-00

Unavailable

12

PLATE, BREATHER 2

42X-11145-00-00

Unavailable

13

WASHER, PLATE (3L6)

90201-10774-00

$9.49

14

BOLT (583)

90101-10303-00

$9.49

15

BUSH, SOLID (20X)

90380-25125-00

$57.99

16

CHAIN

94591-49098-00

Unavailable

17

SPROCKET, CAM CHAIN

5EL-12176-00-00

Unavailable

18

PIN,DOWEL (168)

93604-12037-00

Unavailable

19

TENSIONER ASSY, CAM CHAIN

5EL-12210-01-00

Unavailable

20

GASKET, TENSIONER CASE

4FM-12213-00-00

Unavailable

21

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

22

GUIDE, STOPPER 1

5EL-12231-00-00

Unavailable

23

GUIDE, STOPPER 2

5EL-12241-01-00

Unavailable

24

BOLT, SOCKET

91314-06016-00

Unavailable
