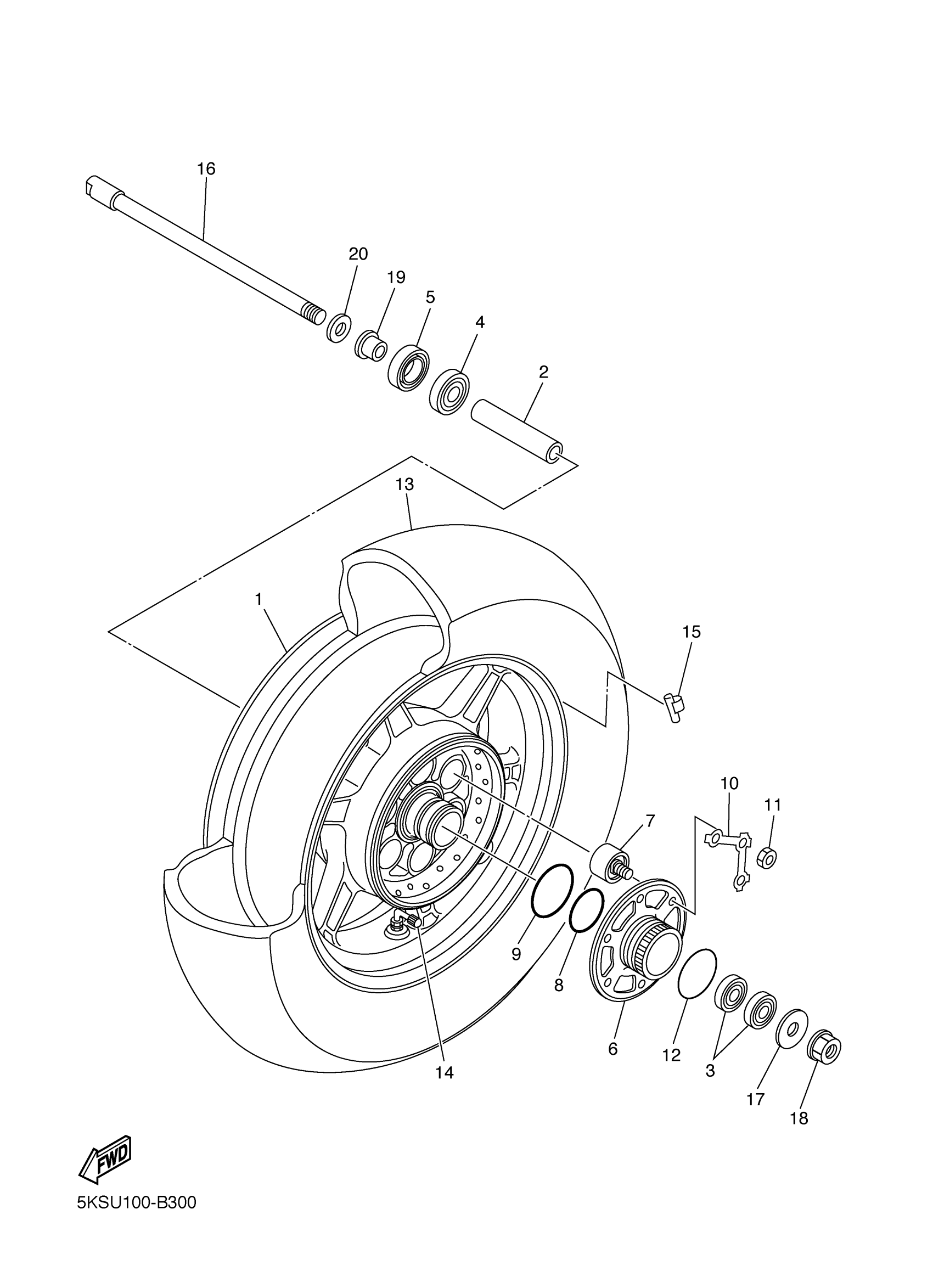

Yamaha XVS1100AWRC (V STAR 1100 CLASSIC (CAST WHEEL) CA) 5KSK 2003 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

5KS-25338-00-MA

Unavailable

2

COLLAR(1FN)

90387-173M5-00

Unavailable

3

BEARING

93306-20348-00

$40.99

4

BEARING(4HM)

93306-30317-00

$39.99

5

OIL SEAL (25X47X7-801)

93102-25044-00

$14.99

6

CLUTCH, HUB

16G-25366-01-00

$236.99

7

DAMPER

5EL-25364-00-00

$37.99

8

O-RING (11H)

93210-48530-00

$7.49

9

O-RING (11H)

93210-59531-00

$15.99

10

WASHER

16G-25412-00-00

$10.99

11

NUT

90170-10011-00

$7.49

12

O-RING (4H7)

93210-57428-00

$14.99

13

TIRE (170/80-15 M/C 77S D404)

94117-15011-00

Unavailable

13

TIRE (170/80-15 M/C 77S G702)

94117-15012-00

Unavailable

14

VALVE, RIM (2JE)

93900-00025-00

$19.99

15

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

15

BALANCER, WHEEL

5MT-25398-10-00

Unavailable

15

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

16

AXLE, WHEEL

5EL-25381-10-00

Unavailable

17

WASHER, PLATE(3LD)

90201-160T2-00

Unavailable

18

NUT, FLANGE (4PT)

95604-16200-00

Unavailable

19

COLLAR (3HE)

90387-177Y4-00

Unavailable

20

COLLAR, WHEEL

4H7-25377-00-00

Unavailable
