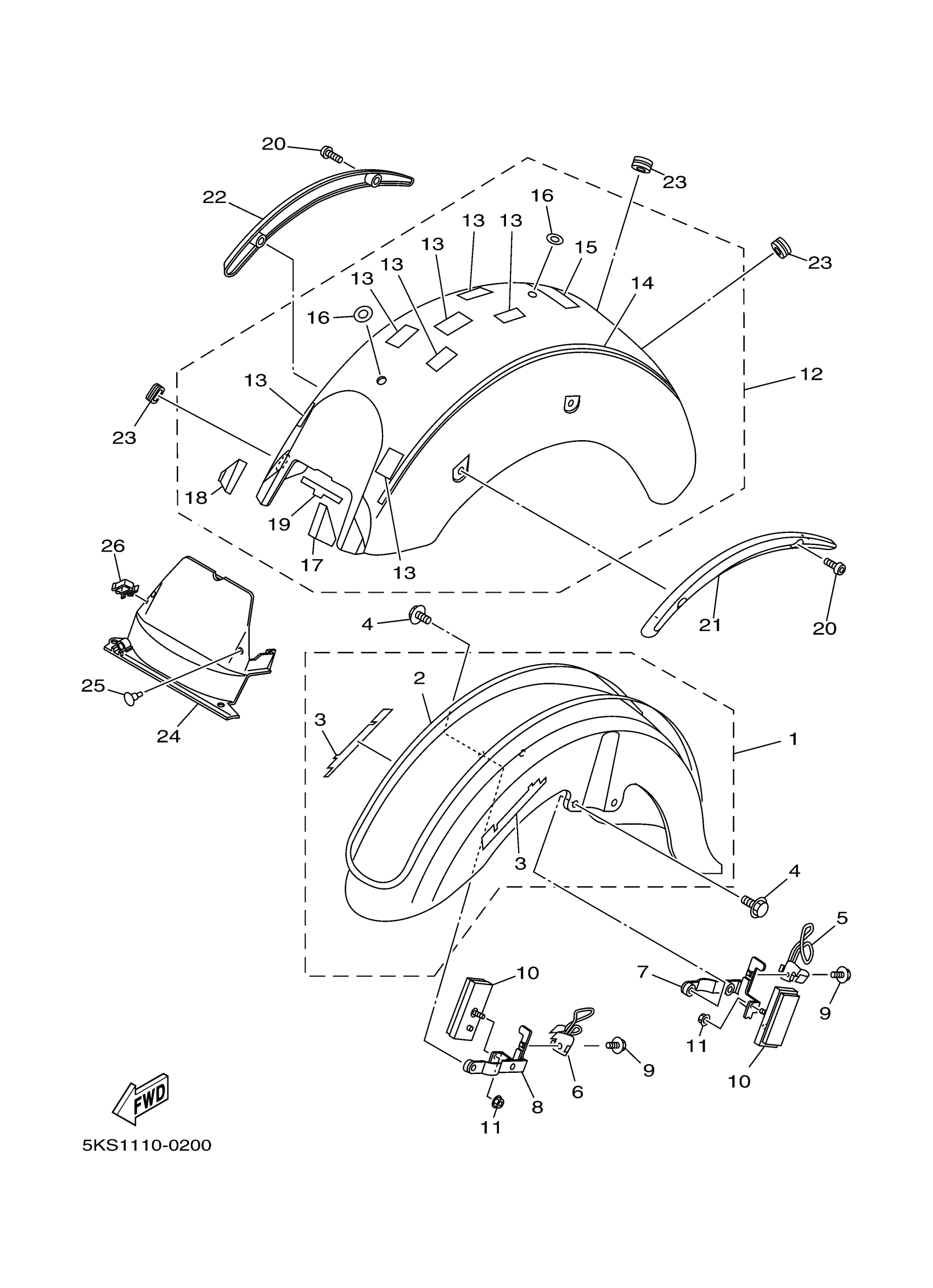

Yamaha XVS1100ARC (V-STAR 1100 CLASSIC CA) 5KSS 2003 FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP.
5KS-Y2151-U1-33
Unavailable
1
FRONT FENDER ASSY
5KS-Y2151-H1-P0
Unavailable
2
. GRAPHIC SET, FRONT FENDER (YAMAHA BLACK)
5KS-21570-C0-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (BLUISH SILVER 4)
5KS-21570-D0-00
Unavailable
5
HOLDER,WIRE 1
5KS-21597-00-00
Unavailable
6
HOLDER, WIRE 2
5KS-21598-00-00
Unavailable
7
STAY 1
5KS-21587-00-00
Unavailable
8
STAY 2
5KS-21588-00-00
Unavailable
12
REAR FENDER COMP.
5KS-Y216R-0K-33
Unavailable
12
REAR FENDER COMP.
5KS-Y216R-0J-P0
Unavailable
13
SEAL 1
3SP-21732-00-00
Unavailable
14
.. GRAPHIC SET, REAR FENDER (YAMAHA BLACK)
5KS-2165A-C0-00
Unavailable
14
GRAPHIC SET,REAR FENDER
5KS-2165A-D0-00
Unavailable
15
EMBLEM, YAMAHA
99247-00080-00
Unavailable
16
SEAL 2
4NK-21735-00-00
Unavailable
17
SEAL
5KS-21669-00-00
Unavailable
18
SEAL
5KS-21669-10-00
Unavailable
19
SEAL
5KS-21669-20-00
Unavailable
20
BOLT, BUTTON HEAD(3YF)
92014-08025-00
Unavailable
21
STAY 1
4WM-2164F-00-00
Unavailable
22
STAY 2
4WM-2164G-00-00
Unavailable
23
GROMMET (438)
90480-15061-00
Unavailable
24
GUARD, MUD
5KS-21629-00-00
Unavailable
25
RIVET(4PH)
90269-07077-00
Unavailable
26
CLAMP (1J7)
90464-16021-00
Unavailable
