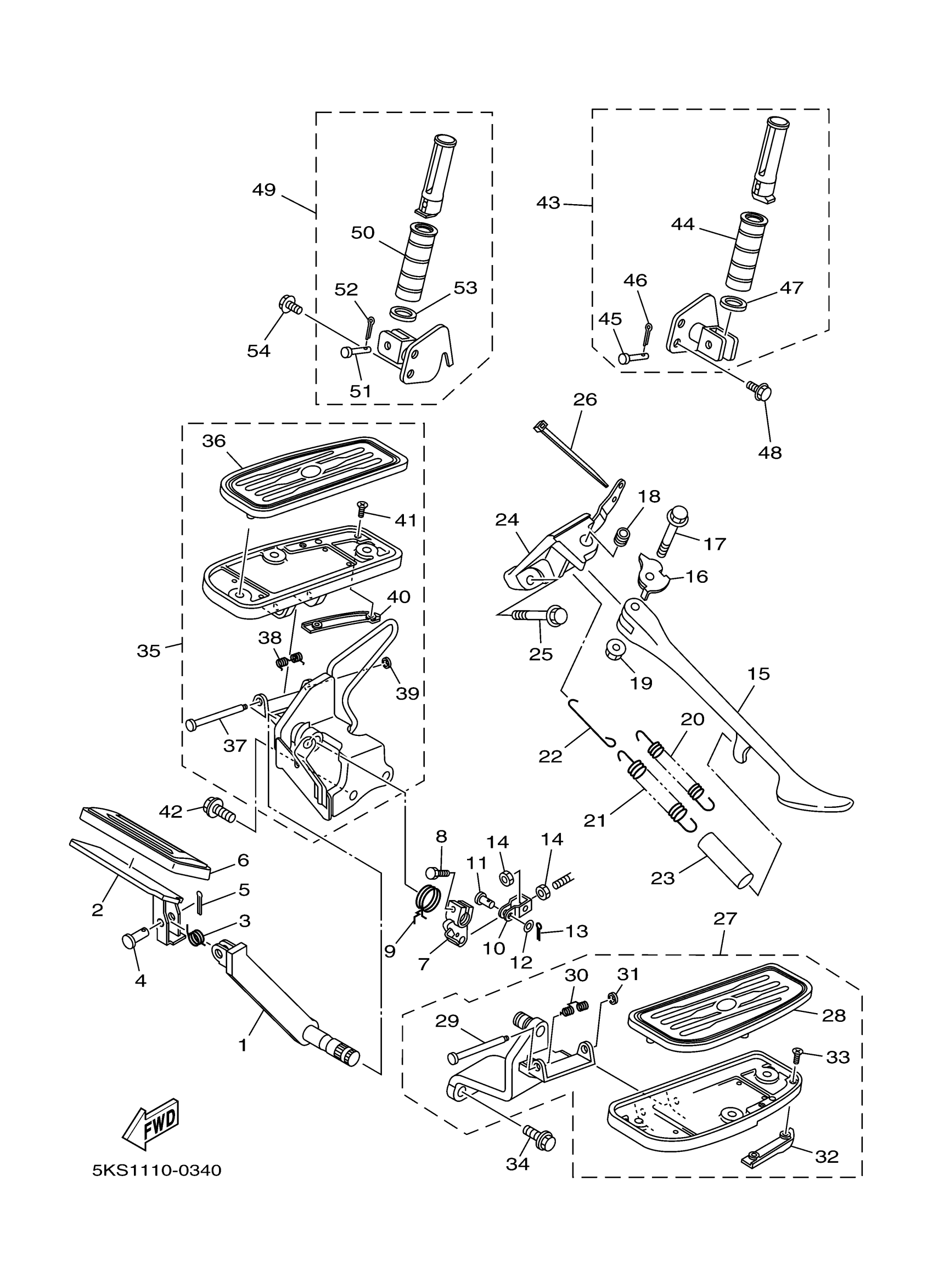

Yamaha XVS1100APC (V-STAR 1100 CLASSIC CA) 5KSD 2002 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

5KS-27211-00-00

Unavailable

2

PEDAL, BRAKE

4NK-27242-00-00

Unavailable

3

SPRING, TORSION

90508-18023-00

$7.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

PIN, COTTER (648)

91490-20015-00

$2.20

6

CAP

4NK-27285-00-00

Unavailable

7

LEVER

5EL-27262-01-00

Unavailable

8

BOLT(3DM)

97024-06020-00

$8.49

9

SPRING, RETURN

5EL-27216-00-00

$6.99

10

JOINT

4BP-27222-02-00

$29.99

11

PIN, CLEVIS(2YK)

90240-08124-00

$7.49

12

WASHER, PLATE 1562722600

90201-08083-00

$9.49

13

PIN, COTTER (648)

91490-20015-00

$2.20

14

NUT, HEXAGON SMALL

95317-08700-00

$9.49

15

STAND, SIDE

4KU-27311-13-00

Unavailable

16

WASHER

5EL-27322-01-00

Unavailable

17

BOLT, WASHER BASED

90105-10012-00

Unavailable

18

COLLAR(3XP)

90387-1003G-00

Unavailable

19

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

20

SPRING, TENSION(4KU)

90506-23490-00

Unavailable

21

SPRING, TENSION

90506-29507-00

Unavailable

22

LINK, SIDE STAND

5EL-27315-00-00

Unavailable

23

HOSE (L60)

90445-16641-00

Unavailable

24

BRACKET, SIDE STAND

5EL-27321-00-00

Unavailable

25

BOLT, FLANGE(4GB)

95817-10045-00

Unavailable

26

BAND

1UA-82591-00-00

Unavailable

27

FRONT FOOTREST ASSY (LEFT)

5KS-27410-10-00

Unavailable

28

COVER, FOOTREST

4XY-27413-01-00

Unavailable

29

SHAFT

3D8-27427-00-00

Unavailable

30

SPRING, RETURN

4NK-27426-00-00

Unavailable

31

CIRCLIP(53L)

99001-06600-00

Unavailable

32

MOLE 1

4WM-27496-00-00

Unavailable

33

SCREW, FLAT

98707-05010-00

Unavailable

34

BOLT, WASHER BASED

90105-102A3-00

Unavailable

35

FRONT FOOTREST ASSY (RIGHT)

5KS-27420-10-00

Unavailable

36

COVER, FOOTREST

4XY-27423-01-00

Unavailable

37

SHAFT

3D8-27427-00-00

Unavailable

38

SPRING, RETURN

4NK-27426-00-00

Unavailable

39

CIRCLIP(53L)

99001-06600-00

Unavailable

40

MOLE 2

4WM-27497-00-00

Unavailable

41

SCREW, FLAT

98707-05010-00

Unavailable

42

BOLT, WASHER BASED

90105-102A3-00

Unavailable

43

REAR FOOTREST ASSY 1

5EL-27430-00-00

Unavailable

44

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

45

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

46

PIN, COTTER (648)

91490-20015-00

$2.20

47

WASHER, PLATE(8CJ)

90201-210U0-00

Unavailable

48

BOLT, WASHER BASED

90105-082A5-00

Unavailable

49

REAR FOOTREST ASSY 2

5EL-27440-00-00

Unavailable

50

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

51

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

52

PIN, COTTER (648)

91490-20015-00

$2.20

53

WASHER, PLATE(8CJ)

90201-210U0-00

Unavailable

54

BOLT, WASHER BASED

90105-082A5-00

Unavailable
