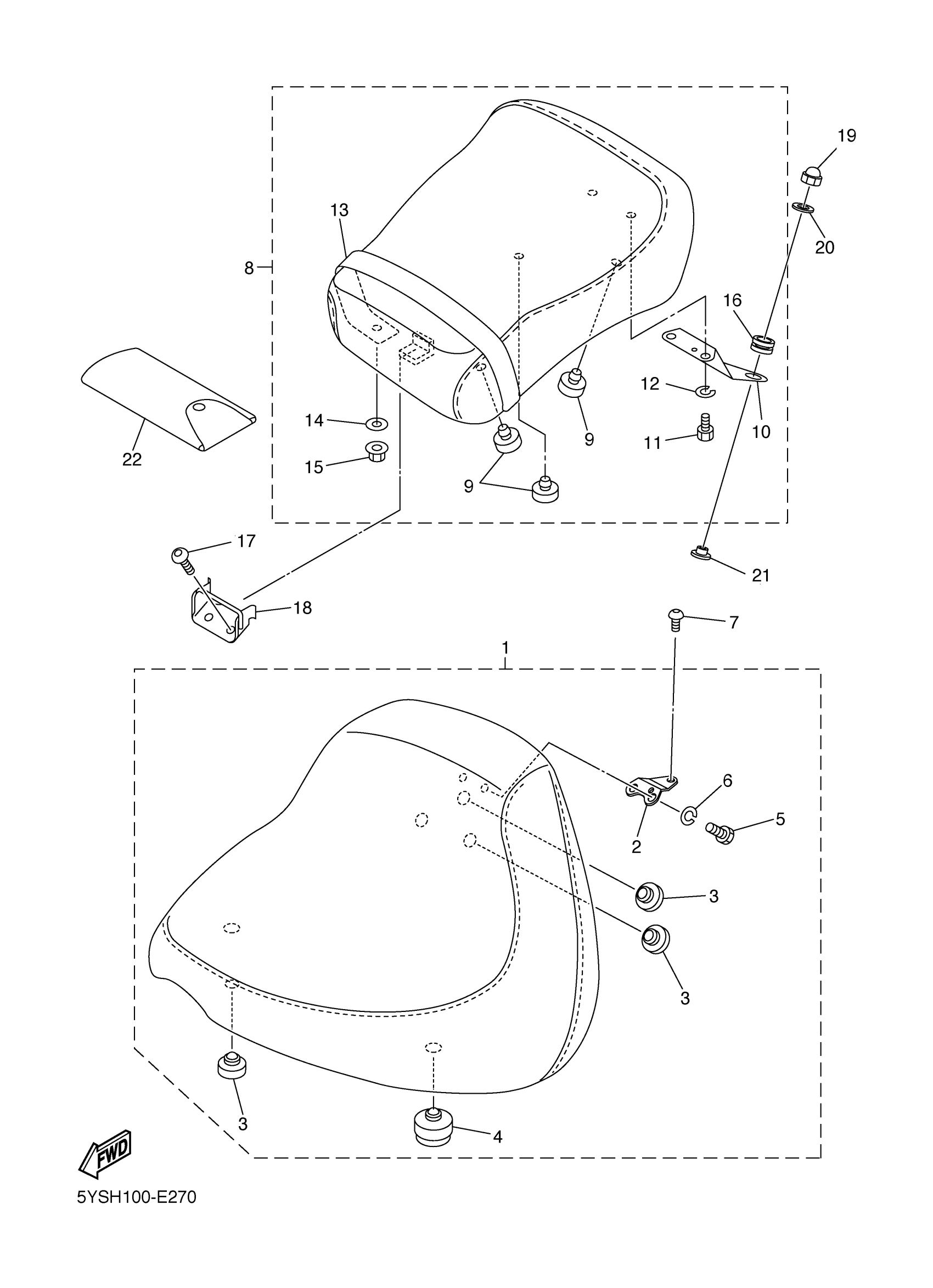

Yamaha XVS1100APC (V-STAR 1100 CLASSIC CA) 5KSD 2002 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

5KS-24710-00-00

Unavailable

1

SINGLE SEAT ASSY

5KS-24710-10-00

Unavailable

2

BRACKET, SEAT LEVER 1

5KS-2475H-00-00

Unavailable

3

PAD, SEAT

22W-24741-00-00

$8.99

4

PAD, SEAT

1T4-24741-00-00

Unavailable

5

BOLT, HEXAGON

97017-06012-00

$3.76

6

WASHER, SPRING

92907-06100-00

$4.25

7

BOLT, BUTTON HEAD

92014-08012-00

$9.49

8

TANDEM SEAT ASSY

5KS-24750-31-00

Unavailable

8

TANDEM SEAT ASSY

5KS-24750-41-00

Unavailable

9

PAD, SEAT

22W-24741-00-00

$8.99

10

BRACKET, SEAT LEVER 2

5YS-2475J-00-00

Unavailable

11

BOLT, HEXAGON

97017-06012-00

$3.76

12

WASHER, SPRING

92907-06100-00

$4.25

13

BAND, SEAT

5KS-24734-00-00

Unavailable

14

WASHER, FINISH

90207-06380-00

Unavailable

15

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

16

GROMMET

5YS-24742-00-00

Unavailable

17

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

18

BRACKET

5KS-2475N-00-00

Unavailable

19

NUT, CROWN

90176-08001-00

Unavailable

20

WASHER, PLATE

90201-08042-00

Unavailable

21

COLLAR 1

5YS-2471N-00-00

Unavailable

22

TOOL KIT

5EL-28100-10-00

Unavailable
