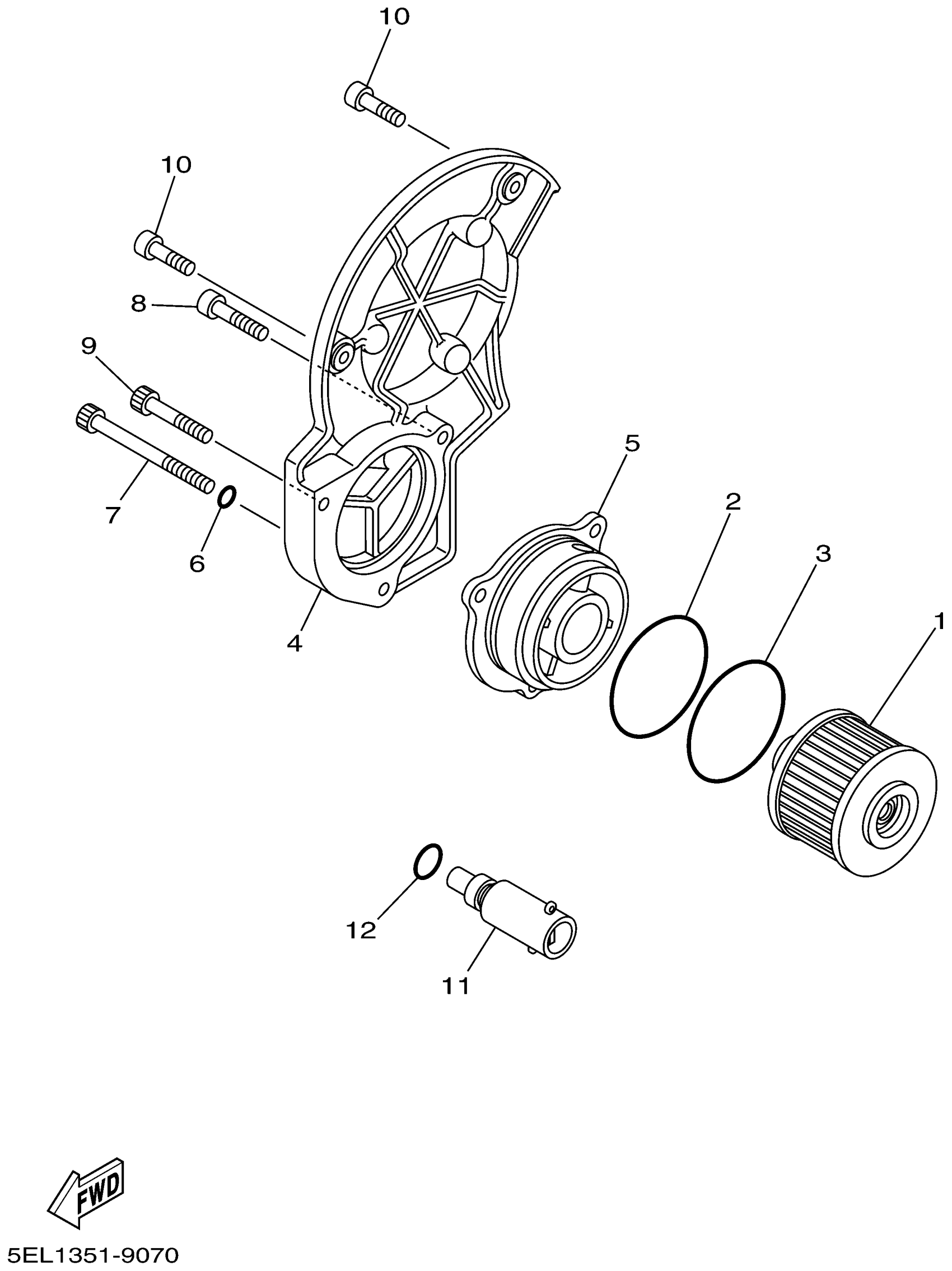

Yamaha XVS1100APC (V-STAR 1100 CLASSIC CA) 5KSD 2002 OIL CLEANER Diagram

#

Description
Price

1

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

$14.49

2

O-RING (4G0)

93210-56459-00

$13.49

3

O-RING (4X7)

93210-54452-00

$10.49

4

COVER, OIL ELEMENT

5EL-13447-00-00

Unavailable

5

CAP

5EL-13448-00-00

$115.99

6

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

7

BOLT (4X7)

90109-06667-00

Unavailable

8

BOLT, SOCKET

91314-06040-00

$8.49

9

BOLT,SOCKET

91314-06050-00

$8.49

10

BOLT,SOCKET HEAD

91314-06020-00

$1.49

11

RELIEF VALVE ASSY

11H-13490-00-00

Unavailable

12

O-RING (611)

93210-10096-00

$3.76
