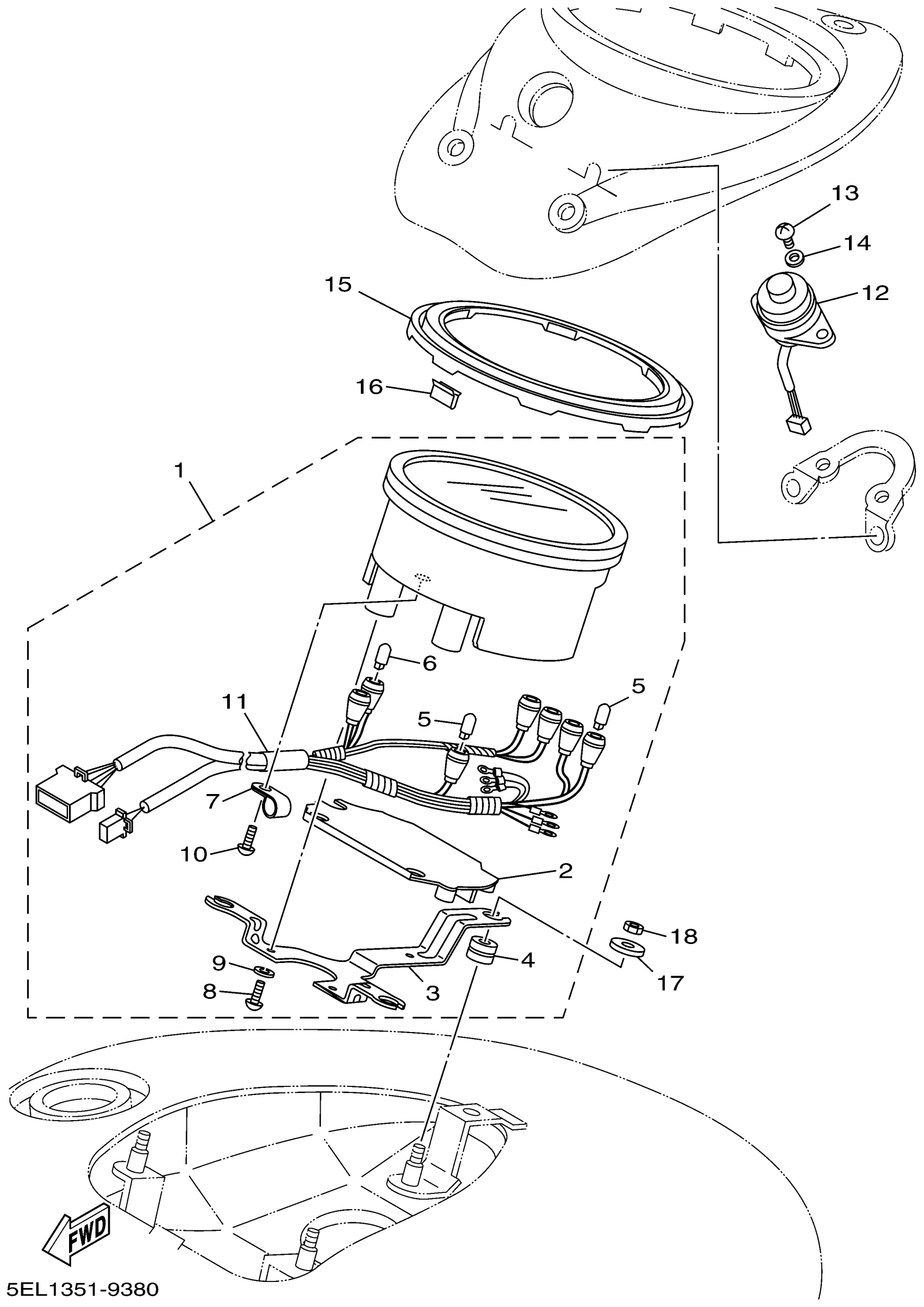

Yamaha XVS1100APC (V-STAR 1100 CLASSIC CA) 5KSD 2002 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY (MPH)

5KS-83500-70-00

Unavailable

2

COVER, METER 2

4NK-83579-00-00

$7.99

3

BRACKET, METER

5EL-83519-00-00

Unavailable

4

DAMPER

4NK-83523-00-00

Unavailable

5

BULB (12V-1.7W)

3FV-83517-00-00

$8.99

6

BULB (12V-1.4W, T6.5)

4NK-83517-00-00

Unavailable

7

CLAMP

5EL-8357E-00-00

$3.28

8

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.50

9

WASHER(6TA)

92907-04100-00

$8.49

10

SCREW, TAPPING (35R)

90167-05016-00

$0.74

11

SOCKET CORD ASSY

5EL-83509-00-00

Unavailable

12

SWITCH, METER CONTROL

4NK-8358J-00-00

$148.99

13

SCREW, PAN

98517-05012-00

$4.73

14

WASHER(1RW)

92907-05600-00

$3.78

15

MOLE 2

5EL-28346-00-00

Unavailable

16

GUIDE

1FK-2171H-00-00

Unavailable

17

WASHER, PLATE

90210-61A50-00

Unavailable

18

NUT, HEXAGON

95317-05600-00

Unavailable
