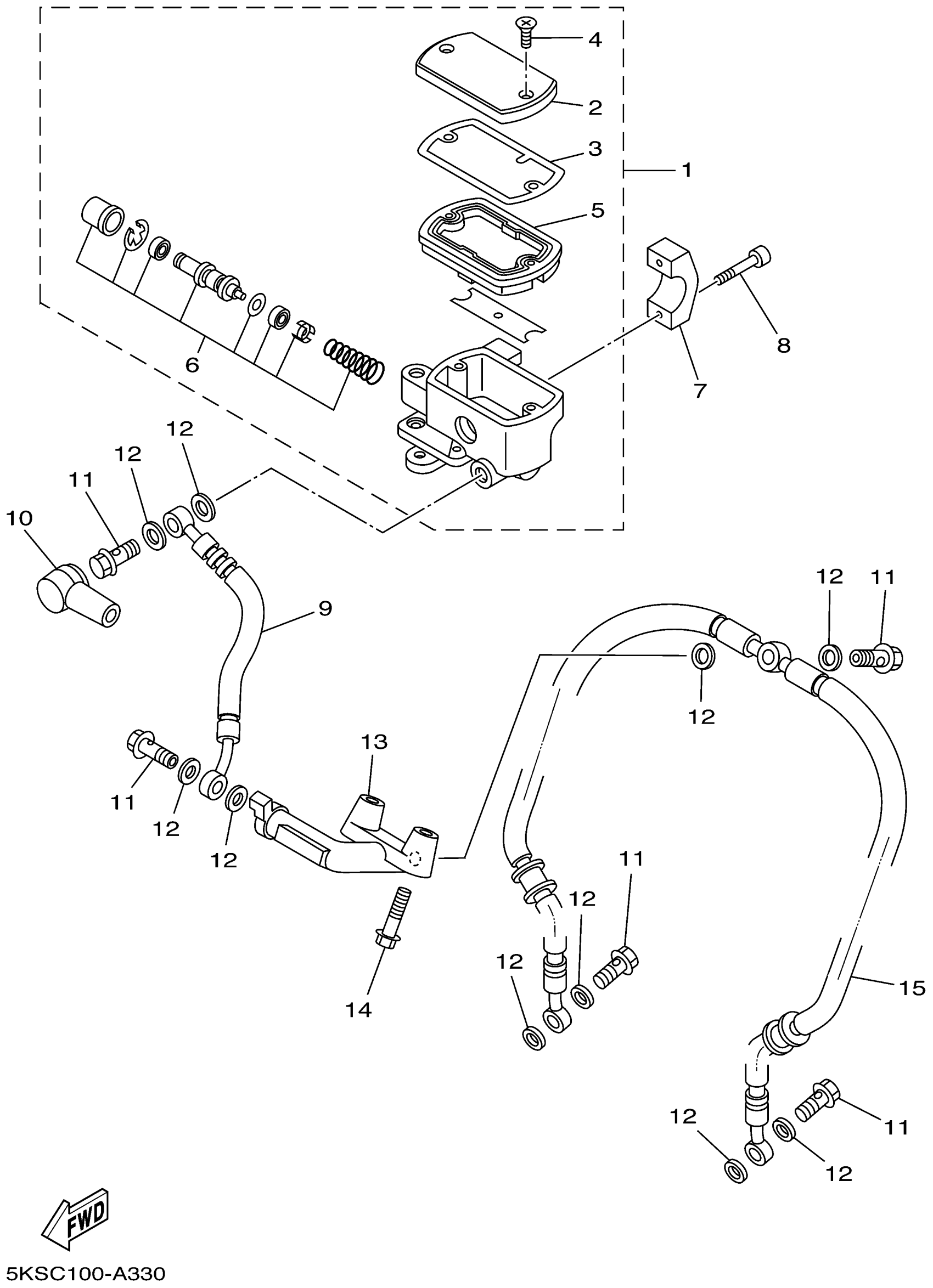

Yamaha XVS1100APC (V-STAR 1100 CLASSIC CA) 5KSD 2002 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

3D8-25870-11-00

$309.99

CAP, RESERVOIR

4TR-25852-01-00

$64.99

SEAL, PISTON

4BH-25815-00-00

Unavailable

SCREW

4TR-2589H-00-00

$6.99

DIAPHRAGM, RESERVOIR

4BH-25854-02-00

Unavailable

CYLINDER KIT, MASTER

2KR-25807-00-00

Unavailable

BRACKET, MASTER CYLINDER

4TR-25867-00-00

Unavailable

BOLT,SOCKET HEAD

91314-06025-00

$8.49

HOSE, BRAKE 1

5KS-25872-01-00

Unavailable

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

BOLT, UNION

90401-10172-00

$5.60

WASHER, PLATE(481)

90201-10118-00

Unavailable

JOINT

5KS-25885-00-00

Unavailable

BOLT, FLANGE

95817-06030-00

$4.29

HOSE, BRAKE 2

5KS-25873-00-00

Unavailable
