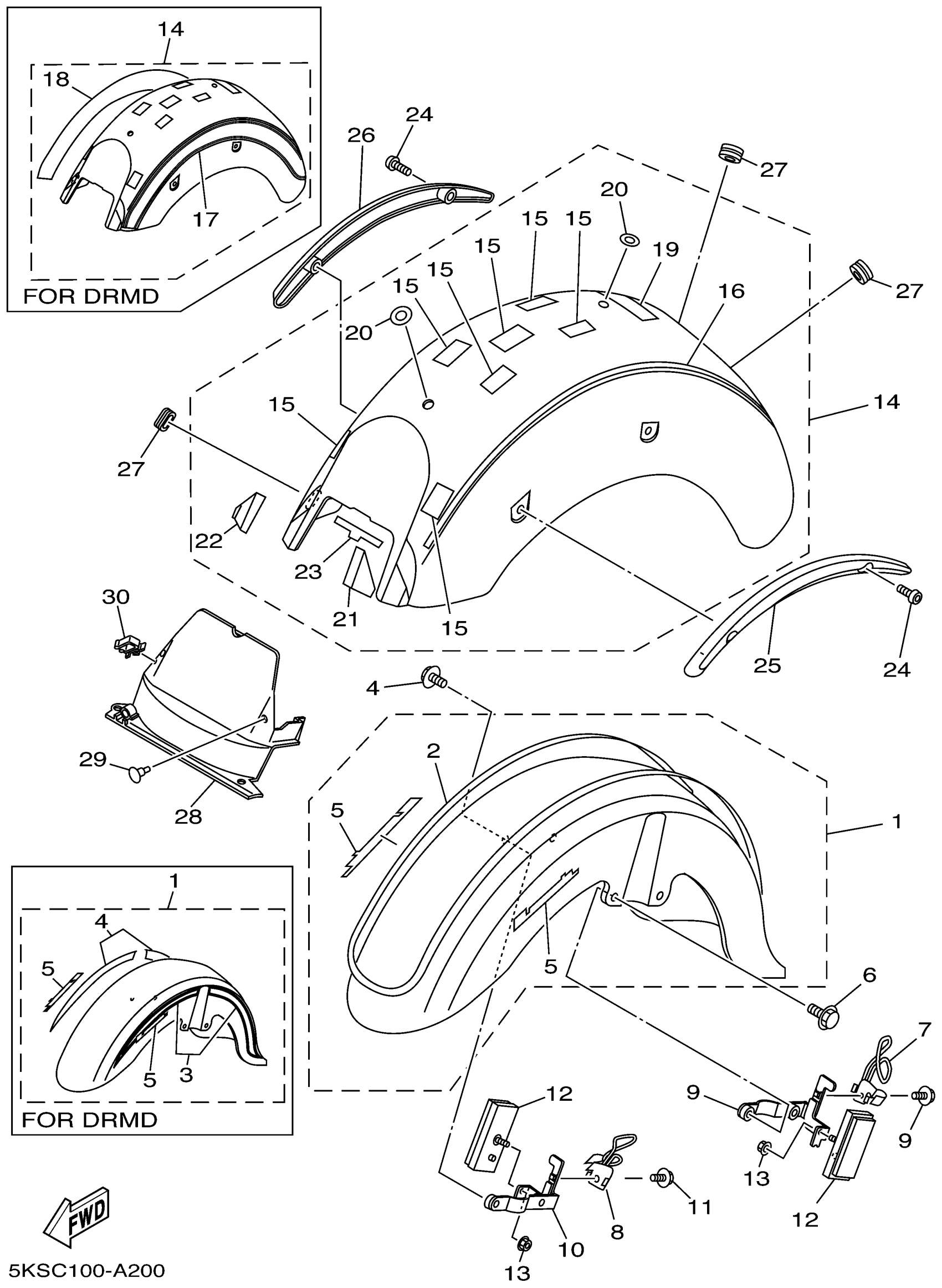

Yamaha XVS1100APC (V-STAR 1100 CLASSIC CA) 5KSD 2002 FENDER Diagram
#
1
FRONT FENDER ASSY
5KS-Y2151-V1-33
Unavailable
1
FRONT FENDER ASSY
5KS-Y2151-N1-5X
Unavailable
1
FRONT FENDER COMP.
5KS-W2151-1N-P2
Unavailable
2
GRAPHIC SET, FRONT FENDER
5KS-21570-80-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (ELEGANT BROWN)
5KS-21570-90-00
Unavailable
3
. GRAPHIC SET 1 (DULL RED METALLIC D)
5KS-2159A-00-00
Unavailable
4
. GRAPHIC SET 2 (DULL RED METALLIC D)
5KS-2159B-00-00
Unavailable
7
HOLDER,WIRE 1
5KS-21597-00-00
Unavailable
8
HOLDER, WIRE 2
5KS-21598-00-00
Unavailable
9
STAY 1
5KS-21587-00-00
Unavailable
10
STAY 2
5KS-21588-00-00
Unavailable
13
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
14
REAR FENDER COMP.
5KS-Y216R-0M-33
Unavailable
14
REAR FENDER COMP.
5KS-Y216R-R1-5X
Unavailable
14
REAR FENDER COMP.
5KS-W216R-0L-P2
Unavailable
15
SEAL 1
3SP-21732-00-00
Unavailable
16
. GRAPHIC SET,REAR FENDER (YAMAHA BLACK)
5KS-2165A-80-00
Unavailable
16
. GRAPHIC SET,REAR FENDER (ELEGANT BROWN)
5KS-2165A-90-00
Unavailable
17
. GRAPHIC 1 (DULL RED METALLIC D)
5KS-2165C-00-00
Unavailable
18
. GRAPHIC 1 (DULL RED METALLIC D)
5KS-2165D-00-00
Unavailable
19
EMBLEM, YAMAHA
99246-00080-00
Unavailable
19
EMBLEM, YAMAHA
99247-00080-00
Unavailable
20
SEAL 2
4NK-21735-00-00
Unavailable
21
SEAL
5KS-21669-00-00
Unavailable
22
SEAL
5KS-21669-10-00
Unavailable
23
SEAL
5KS-21669-20-00
Unavailable
24
BOLT, BUTTON HEAD(3YF)
92014-08025-00
Unavailable
25
STAY 1
4WM-2164F-00-00
Unavailable
26
STAY 2
4WM-2164G-00-00
Unavailable
27
GROMMET (438)
90480-15061-00
Unavailable
28
GUARD, MUD
5KS-21629-00-00
Unavailable
29
RIVET(4PH)
90269-07077-00
Unavailable
30
CLAMP (1J7)
90464-16021-00
Unavailable
