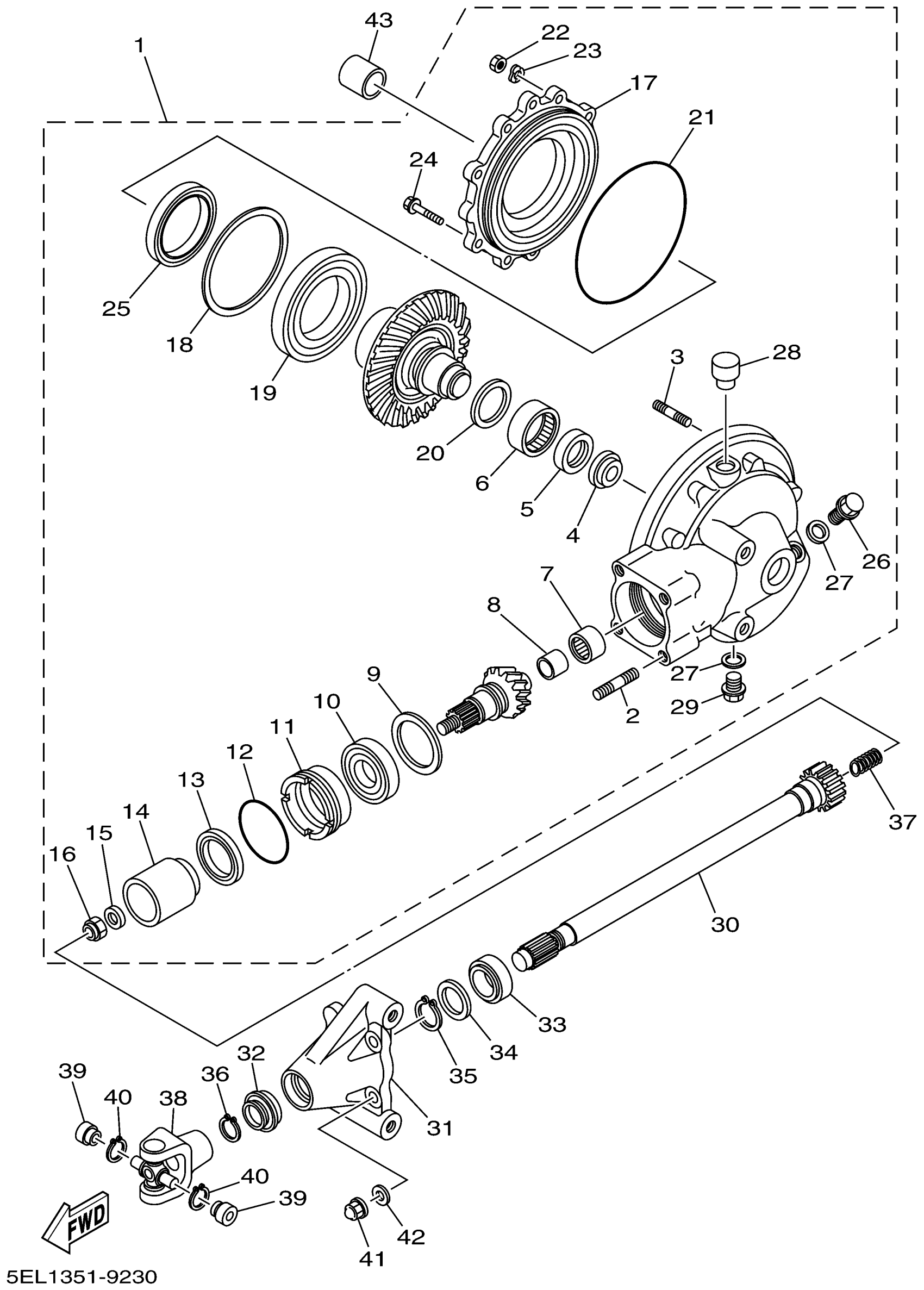

Yamaha XVS1100APC (V-STAR 1100 CLASSIC CA) 5KSD 2002 DRIVE SHAFT Diagram
#
1
REAR AXLE GEAR CASE ASSY
5EL-46101-00-00
Unavailable
2
BOLT, STUD (5E5)
90116-10361-00
Unavailable
6
BRG,CYL-CAL ROLLER 80G KY
93311-43729-00
Unavailable
14
COUPLING, GEAR
4H7-46123-01-00
Unavailable
15
WASHER, PLATE 11J7)
90201-14632-00
Unavailable
16
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
17
HOUSING, BEARING
4H7-46152-00-00
Unavailable
18
SHIM, RING GEAR (0.25T)
1J7-46117-Y0-25
Unavailable
18
SHIM, RING GEAR (0.30T)
1J7-46117-Y0-30
Unavailable
18
SHIM, RING GEAR (0.40T)
1J7-46117-Y0-40
Unavailable
18
SHIM, RING GEAR (0.50T)
1J7-46117-Y0-50
Unavailable
19
BRG,R-B 16014C2 110MM 433G KY
93316-01403-00
Unavailable
20
WASHER, THRUST
22U-46118-00-12
Unavailable
20
WASHER, THRUST
22U-46118-00-14
Unavailable
20
WASHER, THRUST
22U-46118-00-16
Unavailable
20
WASHER, THRUST
22U-46118-00-18
Unavailable
20
WASHER, THRUST
22U-46118-00-20
Unavailable
21
O-RING (1J7)
93211-44348-00
Unavailable
22
NUT(6TA)
95337-08600-00
Unavailable
23
WASHER(6TA)
92907-08700-00
Unavailable
24
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
25
OIL SEAL (4H7)
93102-70167-00
Unavailable
26
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
Unavailable
27
GASKET
214-11198-01-00
Unavailable
28
BREATHER COMP.
56W-17590-00-00
Unavailable
29
PLUG
3JL-13455-00-00
Unavailable
30
SHAFT DRIVE ASSY
5EL-46171-00-00
Unavailable
31
COVER, HOUSING
5EL-46154-00-00
Unavailable
32
COVER, DUST
5EL-46297-00-00
Unavailable
33
OIL SEAL
93108-43014-00
Unavailable
34
WASHER, PLATE(2JG)
90201-266L1-00
Unavailable
35
CIRCLIP
99009-26400-00
Unavailable
36
CIRCLIP (537)
93410-22039-00
Unavailable
37
SPRING, COMPRESSION (2H7)
90501-16491-00
Unavailable
38
CROSS JOINT COMP.
4X7-46180-00-00
Unavailable
39
BEARING(2HR)
93399-99926-00
Unavailable
40
CIRCLIP (4X7)
93440-20088-00
Unavailable
41
NUT, CROWN(2GG)
90176-10075-00
Unavailable
42
WASHER, PLATE
92990-10600-00
Unavailable
43
COLLAR (4H7)
90387-172A5-00
Unavailable
