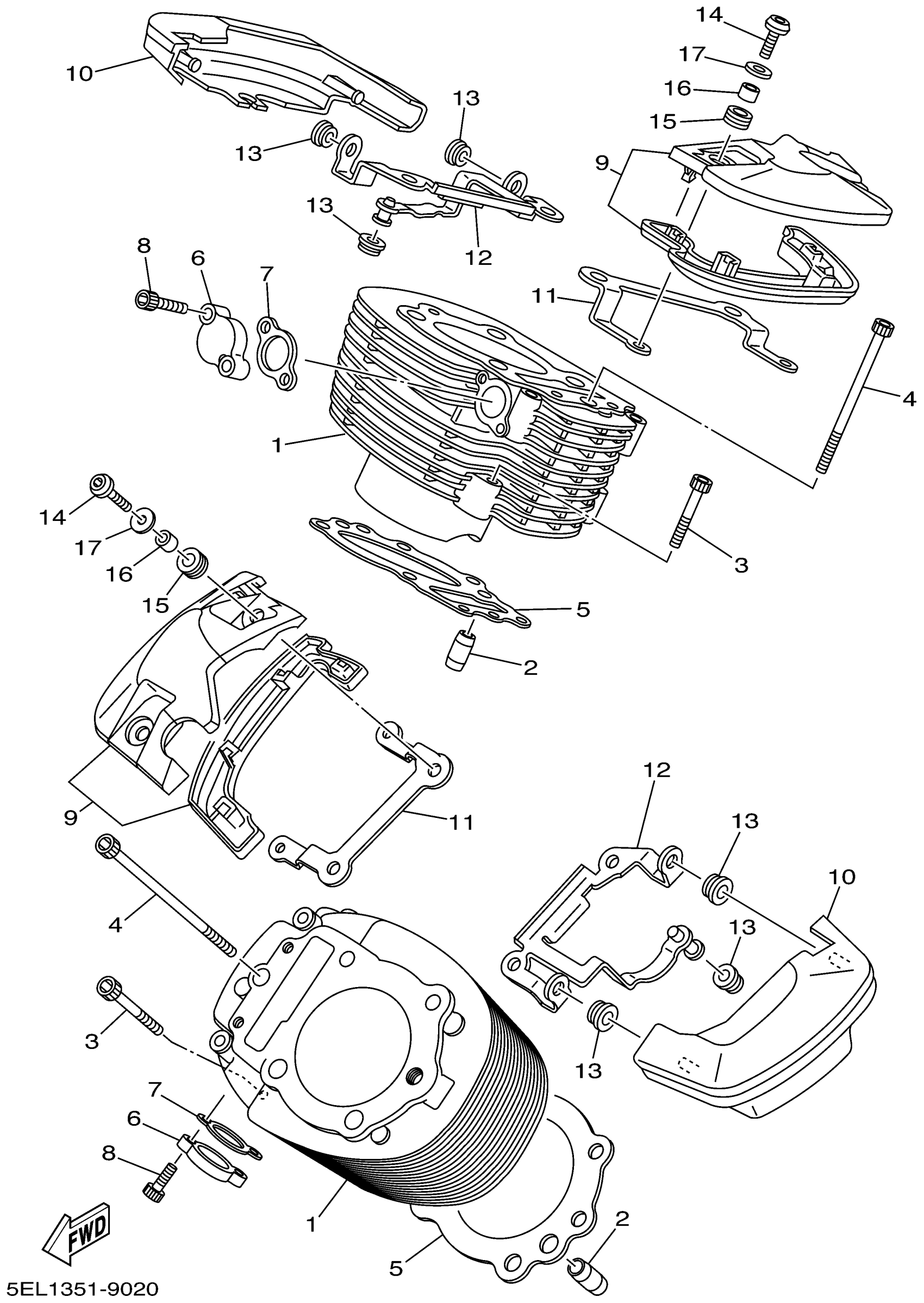

Yamaha XVS1100APC (V-STAR 1100 CLASSIC CA) 5KSD 2002 CYLINDER Diagram

CYLINDER 1

5KS-11311-00-00

Unavailable

COLLAR (4X7)

90387-087A5-00

$5.87

BOLT, SOCKET

91314-06040-00

$5.75

BOLT,SOCKET

91314-06100-00

Unavailable

GASKET, CYLINDER

5EL-11351-01-00

Unavailable

CAP, TENSIONER CASE

5KS-12215-00-00

$44.27

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

BOLT,SOCKET HEAD

91314-06025-00

$6.22

COVER, CYLINDER HEAD 1

5EL-11190-00-00

Unavailable

COVER, CYLINDER HEAD SIDE 2

5EL-11186-00-00

$115.17

BRACKET, CYLINDER HEAD COVER

5EL-11152-00-00

Unavailable

BRACKET, CYLINDER HEAD COVER 2

5EL-11142-01-00

Unavailable

GROMMET

90480-10627-00

$2.58

SCREW(3XV)

90149-06298-00

$3.98

GROMMET (462)

90480-13018-00

$5.81

COLLAR

90387-06043-00

Unavailable

WASHER, PLATE 8221447500

90201-06057-00

Unavailable
