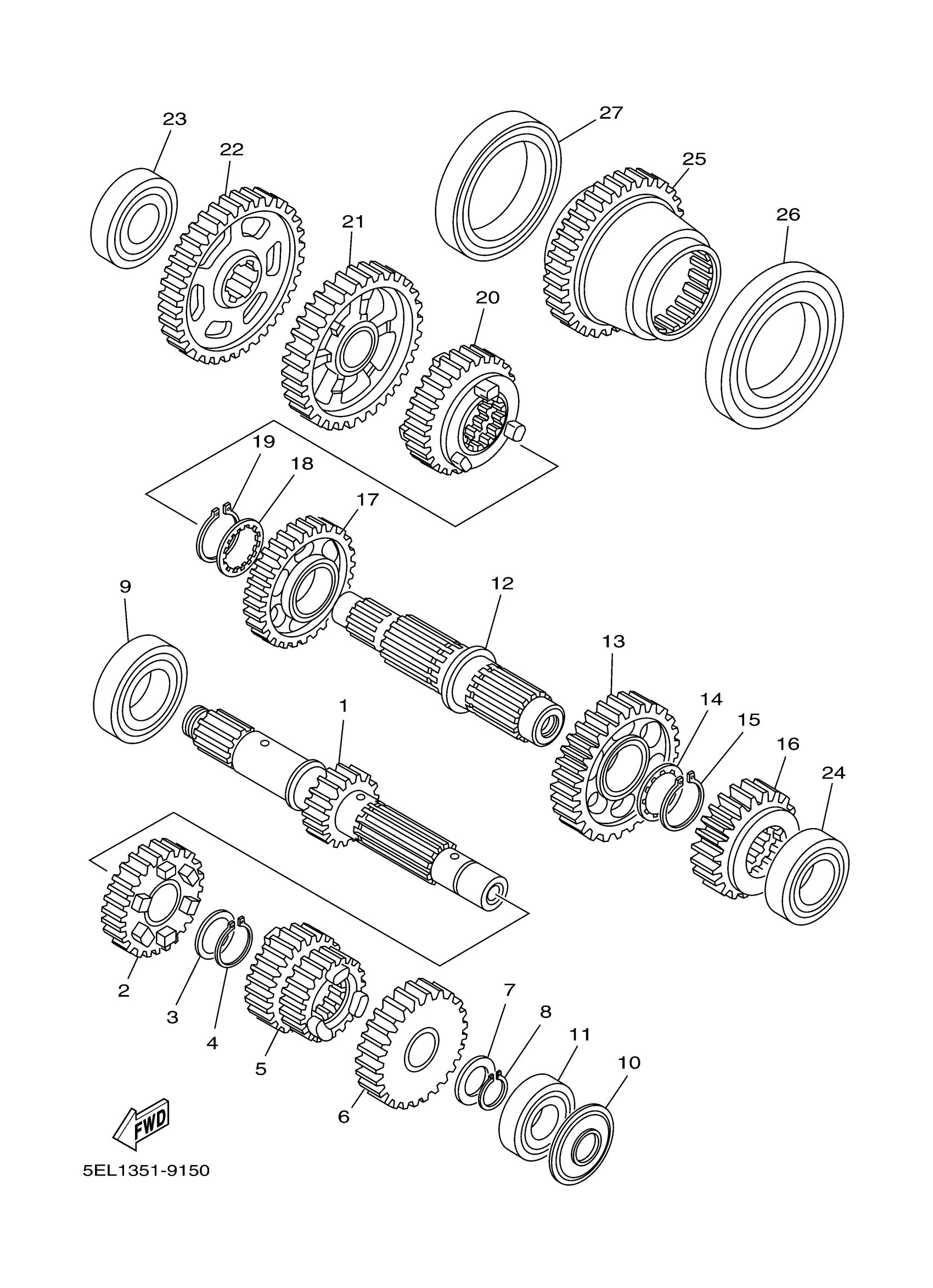

Yamaha XVS1100ANC (V-STAR 1100 CLASSIC CA) 5KS8 2001 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5EL-17411-00-00

Unavailable

2

GEAR, 4TH PINION

5EL-17141-00-00

$94.99

3

WASHER(3VD)

90209-21332-00

$7.49

4

CIRCLIP(JF7)

99009-25400-00

$8.49

5

GEAR, 2ND PINION

5EL-17121-00-00

Unavailable

6

GEAR, 5TH PINION

5EL-17151-00-00

Unavailable

7

WASHER PLATE 328171160000

90201-20276-00

$8.49

8

CIRCLIP(1AR)

99009-20400-00

$8.49

9

BEARING (3Y1)

93306-30525-00

$63.99

10

OIL SEAL (4X7)

93104-20068-00

$14.99

11

BEARING

93306-30443-00

Unavailable

12

DRIVE AXLE ASSY

5EL-17402-00-00

Unavailable

13

GEAR, 2ND WHEEL

5EL-17221-00-00

Unavailable

14

WASHER(3VD)

90209-28331-00

Unavailable

15

CIRCLIP(3VD)

93440-31172-00

$13.99

16

GEAR, 5TH WHEEL

5EL-17251-00-00

Unavailable

17

GEAR, 3RD WHEEL

5EL-17231-00-00

Unavailable

18

WASHER(3VD)

90209-28331-00

Unavailable

19

CIRCLIP(3VD)

93440-31172-00

$13.99

20

GEAR, 4TH WHEEL

5KS-17241-00-00

Unavailable

21

GEAR, 1ST WHEEL

4X7-17211-00-00

Unavailable

22

GEAR, MIDDLE DRIVE

5EL-17582-00-00

Unavailable

23

BEARING(1YW)

93306-20461-00

Unavailable

24

BRG,R-B 6205DU8 52MM NK

93306-20550-00

Unavailable

25

GEAR, MIDDLE DRIVEN

5EL-17583-00-00

Unavailable

26

BRG,R-B 16012 95MM 276G NT

93316-01201-00

Unavailable

27

BRG,R-B 6912 85MM 189G NK

93306-91201-00

Unavailable
