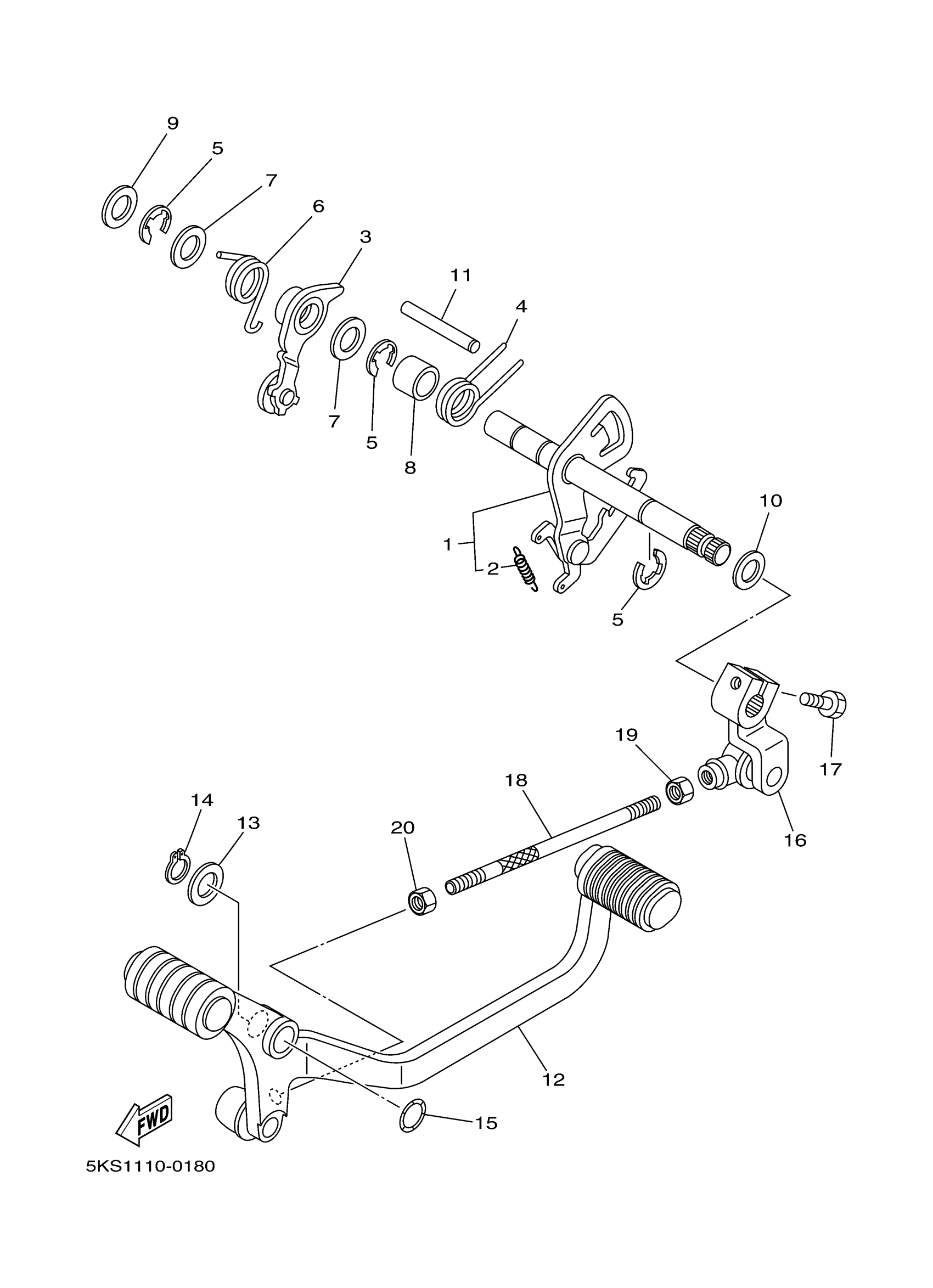

Yamaha XVS1100ANC (V-STAR 1100 CLASSIC CA) 5KS8 2001 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT LEVER ASSY

5EL-18120-00-00

Unavailable

2

SPRING, TENSION (4H7)

90506-08227-00

$4.19

3

STOPPER LEVER ASSY

5EL-18140-00-00

Unavailable

4

SPRING, TORSION (4H7)

90508-32535-00

$10.49

5

CIRCLIP

99006-10600-00

$9.49

6

SPRING, TORSION

90508-32012-00

$7.49

7

WASHER

90201-12588-00

$7.49

8

COLLAR

90387-12033-00

$7.49

9

WASHER

90201-12588-00

$7.49

10

WASHER PLATE 164185720000

90201-12166-00

$9.49

11

PIN, DOWEL (4H7)

93608-50158-00

$8.49

12

SHIFT PEDAL ASSY

5KS-18110-00-00

$179.99

13

WASHER, PLATE (5K7)

90201-124E4-00

$9.49

14

CIRCLIP(10Y)

99009-12400-00

$3.59

15

WASHER, WAVE (17W)

90206-12074-00

$9.49

16

ARM, SHIFT

4TR-18112-00-00

Unavailable

17

BOLT(3DM)

97024-06020-00

Unavailable

18

ROD, SHIFT

4DN-18115-20-00

Unavailable

19

NUT (2H9)

90170-06228-00

Unavailable

20

NUT

9538R-06700-00

Unavailable
