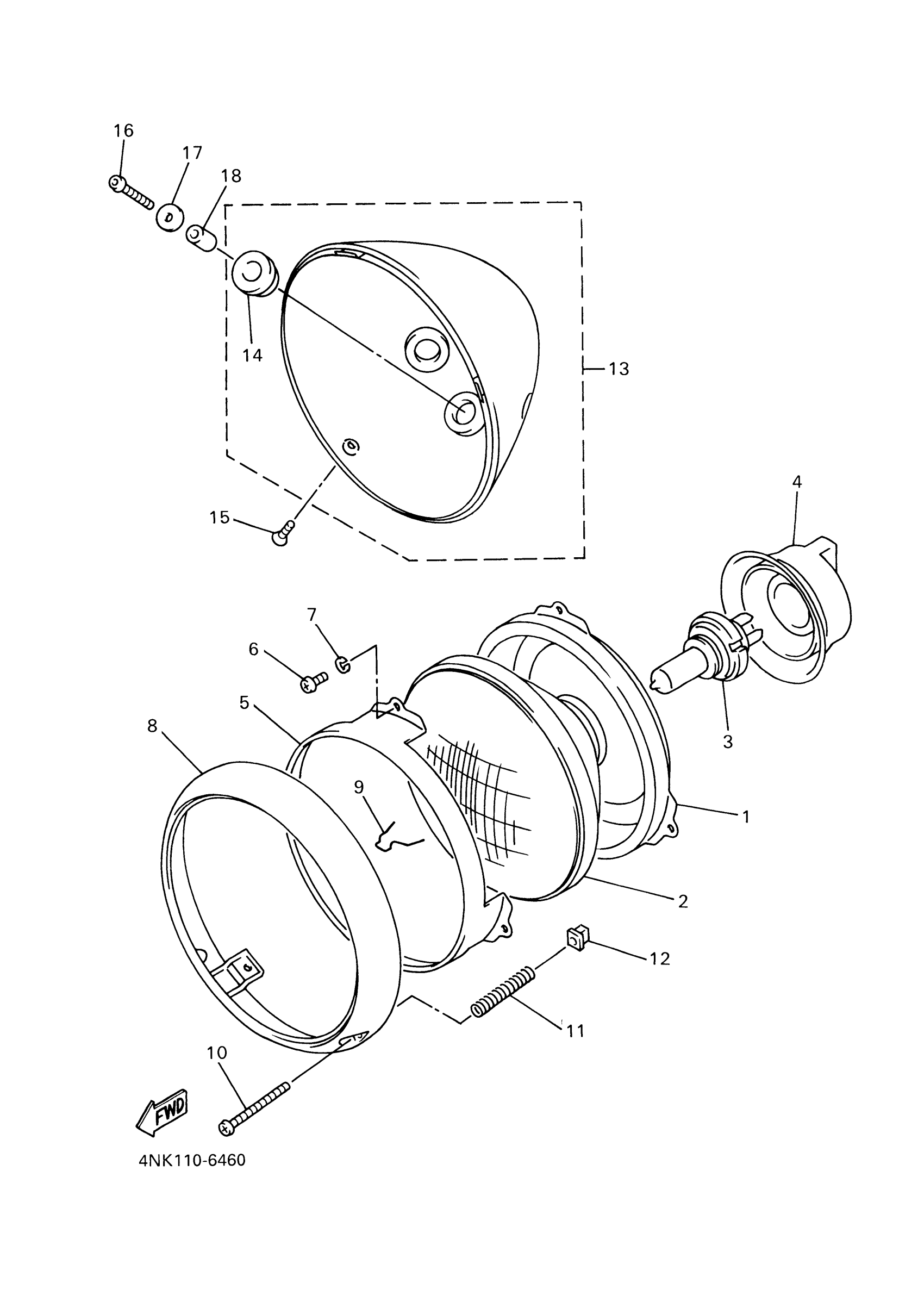

Yamaha XVS1100ANC (V-STAR 1100 CLASSIC CA) 5KS8 2001 HEADLIGHT Diagram

RING, MOUNTING

4NK-84394-00-00

$87.99

LENS ASSY

4NK-84320-00-00

$216.99

BULB (12V-60/55W)

5V2-84314-00-0XX

Unavailable

COVER, SOCKET

3SX-84397-00-00

Unavailable

RING, RETAINING

2F9-84395-00-00

$58.99

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

RIM, HEADLIGHT

4NK-84315-00-00

$157.99

SPRING, REFLECTOR SET (FRAN)

290-84124-21-00

Unavailable

SCREW 214841316100

90157-04001-00

$8.49

SPRING, ADJUST

341-84332-60-00

$9.99

NUT, ADJUST

198-84334-60-00

$7.99

BODY ASSY

5KS-84330-00-00

Unavailable

DAMPER, HEADLIGHT 1

42X-84366-00-00

$20.99

SCREW, FLAT

98704-05012-00

$3.77

BOLT, BUTTON HEAD

92017-06025-00

Unavailable

WASHER, PLATE

90201-06086-00

Unavailable

COLLAR(4NK)

90387-0610J-00

Unavailable
