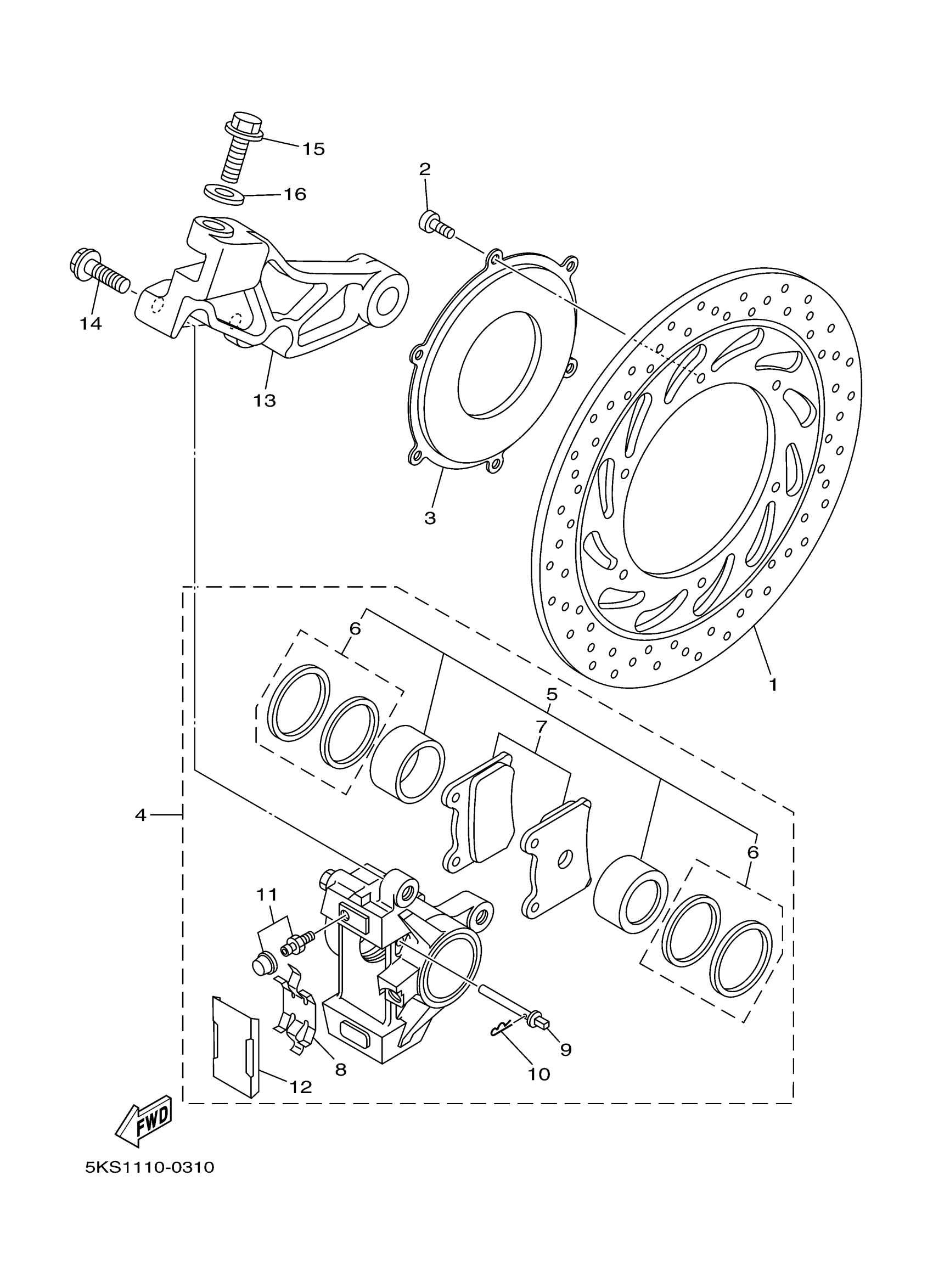

Yamaha XVS1100AMC (V-STAR 1100 CLASSIC CA) 5KS2 2000 REAR BRAKE CALIPER Diagram

DISC, REAR BRAKE 2

5KS-2582W-00-00

$320.67

SCREW

90149-08052-00

$5.59

RING, WHEEL 2 (RIGHT)

5KS-2515A-20-00

Unavailable

CALIPER ASSY, REAR 2

5EL-2580W-01-00

Unavailable

PISTON ASSY, CALIPER

31A-W0057-00-00

$114.10

PISTON SEAL KIT

31A-W0047-00-00

$46.67

BRAKE PAD KIT

3XF-W0045-50-00

$40.63

SUPPORT, PAD

1WG-25919-00-00

$8.84

PIN, PAD

3HE-25924-00-00

Unavailable

CLIP, PAD PIN

3GM-25925-00-00

$9.15

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

COVER, DUST

51J-25836-01-00

Unavailable

BRACKET, CALIPER

5EL-25819-01-00

Unavailable

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80

BOLT, WASHER BASED

90105-10010-00

$8.24

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable
