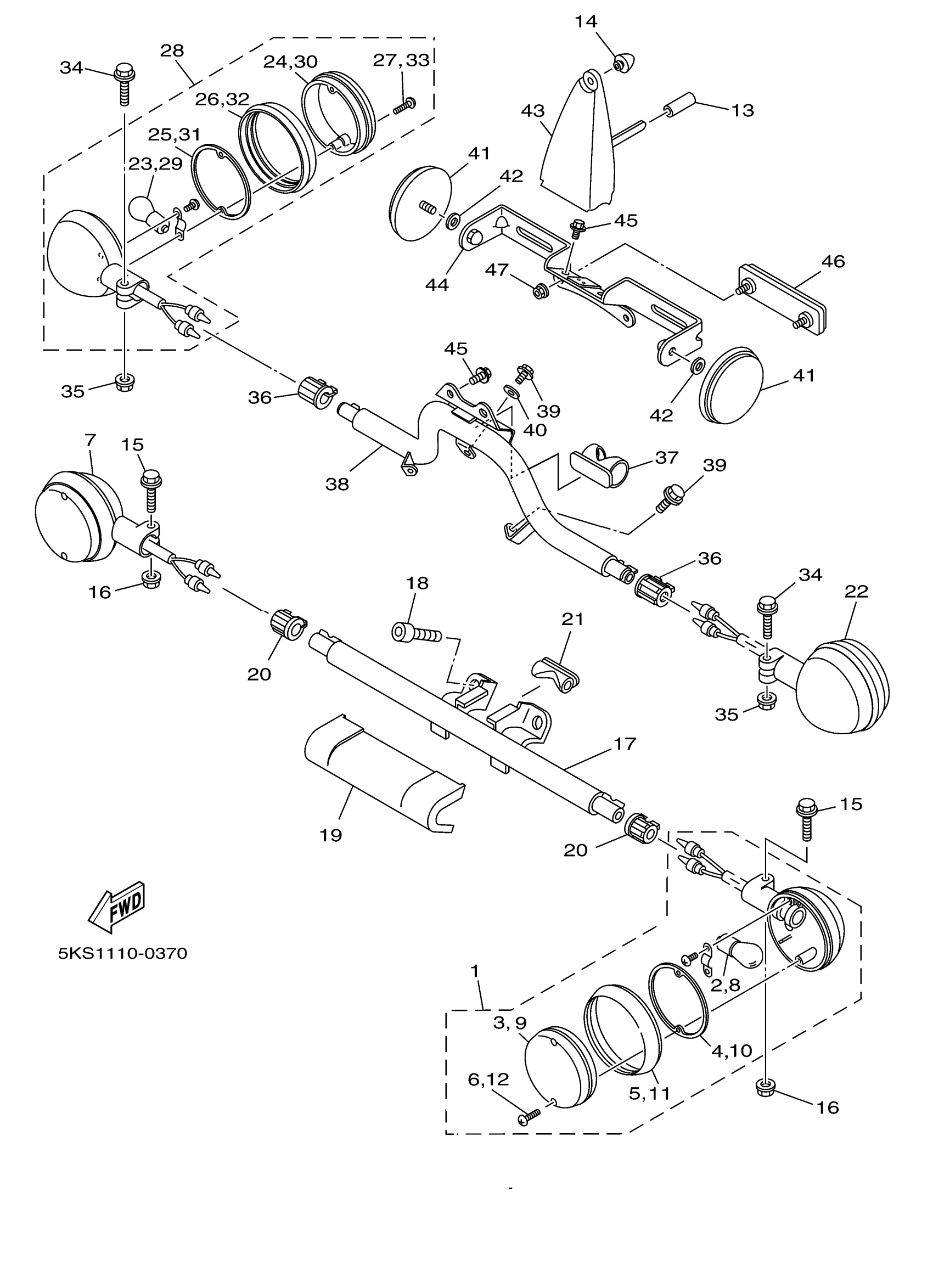

Yamaha XVS1100AMC (V-STAR 1100 CLASSIC CA) 5KS2 2000 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

4NK-83310-01-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

42X-83312-10-00

$15.49

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

LENS, RIM

1D6-83363-00-00

$28.99

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

FRONT FLASHER LIGHT ASSY 2

4NK-83320-01-00

Unavailable

8

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

9

LENS, FLASHER

42X-83312-20-00

$15.49

10

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

11

LENS, RIM

1D6-83363-10-00

$28.99

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

HOSE (583)

90446-07114-00

$7.49

14

DAMPER 2

5A8-21639-00-00

Unavailable

15

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

16

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

17

STAY, 8

5BN-2317V-00-00

Unavailable

18

BOLT,SOCKET

91314-08016-00

Unavailable

19

COVER, OUTER 1

4NK-23122-01-00

Unavailable

20

DAMPER, FLASHER 1

4NK-83321-00-00

Unavailable

21

PLUG, BLIND

4NK-83345-00-00

Unavailable

22

REAR FLASHER LIGHT ASSY 1

42X-83330-K1-00

Unavailable

23

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

24

LENS, FLASHER

42X-83312-20-00

$15.49

25

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

26

LENS, RIM

1D6-83363-10-00

$28.99

27

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

28

REAR FLASHER LIGHT ASSY 1

42X-83330-K1-00

Unavailable

29

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

30

LENS, FLASHER

42X-83312-10-00

$15.49

31

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

32

LENS, RIM

1D6-83363-00-00

$28.99

33

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

34

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

35

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

36

DAMPER, FLASHER 1

4NK-83321-00-00

Unavailable

37

PLUG, BLIND

4NK-83345-00-00

Unavailable

38

STAY, 9

5KS-2317W-00-00

Unavailable

39

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

40

WASHER, PLATE 6261117600

90201-06043-00

Unavailable

41

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

42

WASHER PLATE 829771780000

90201-05033-00

Unavailable

43

BRACKET

5KS-84703-00-00

Unavailable

44

BRACKET, LICENSE

5KS-84751-00-00

Unavailable

45

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

46

REAR REFLECTOR ASSY

1FK-85130-00-00

Unavailable

47

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
